Diesel Data: Automotive Repair

Home >> Eagle >> 1993 >> Summit Vista AWD L4-2350cc 2.4L SOHC >> Repair and Diagnosis >> Heating and Air Conditioning >> Locations

Heating and Air Conditioning: Locations

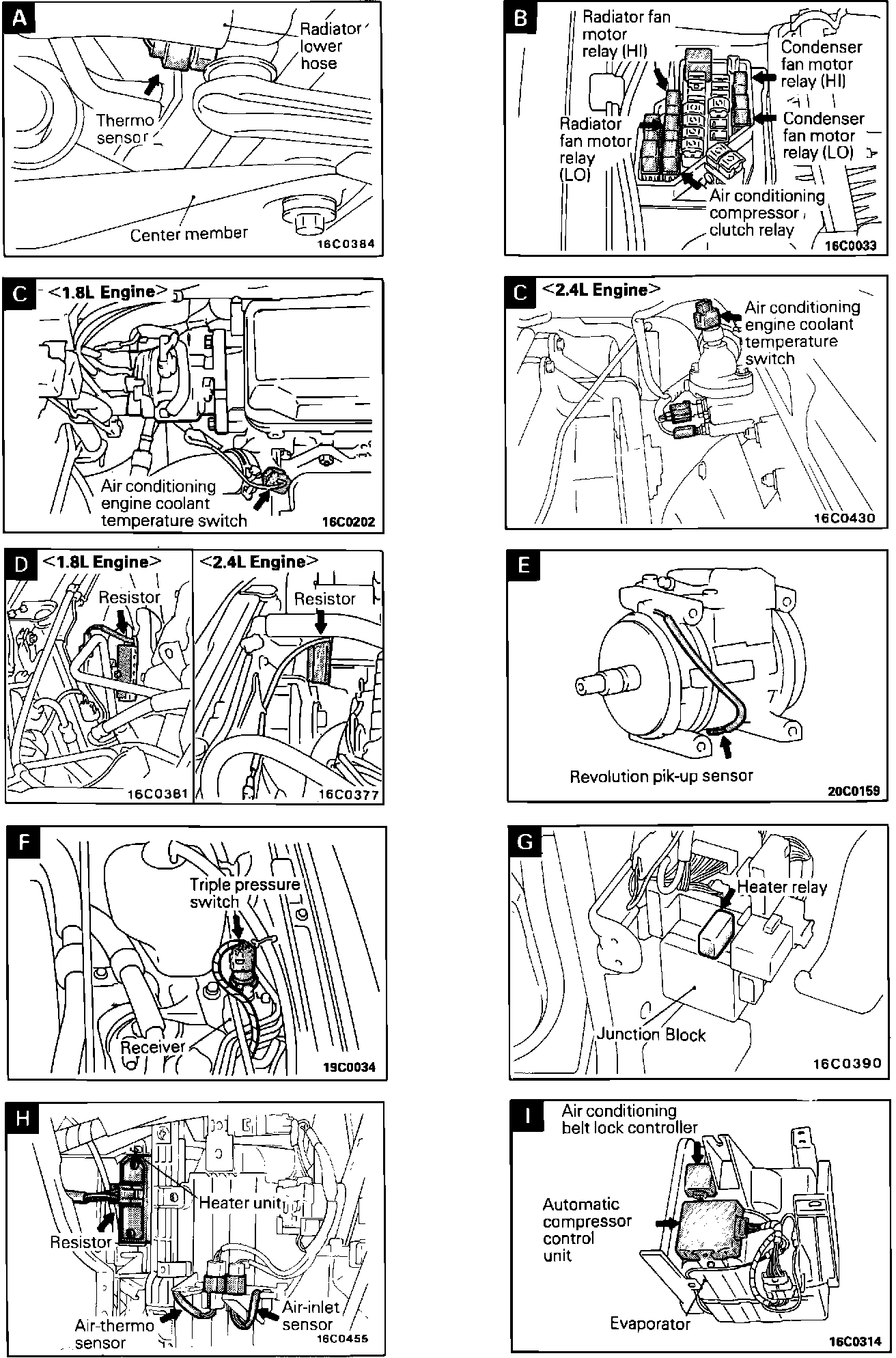

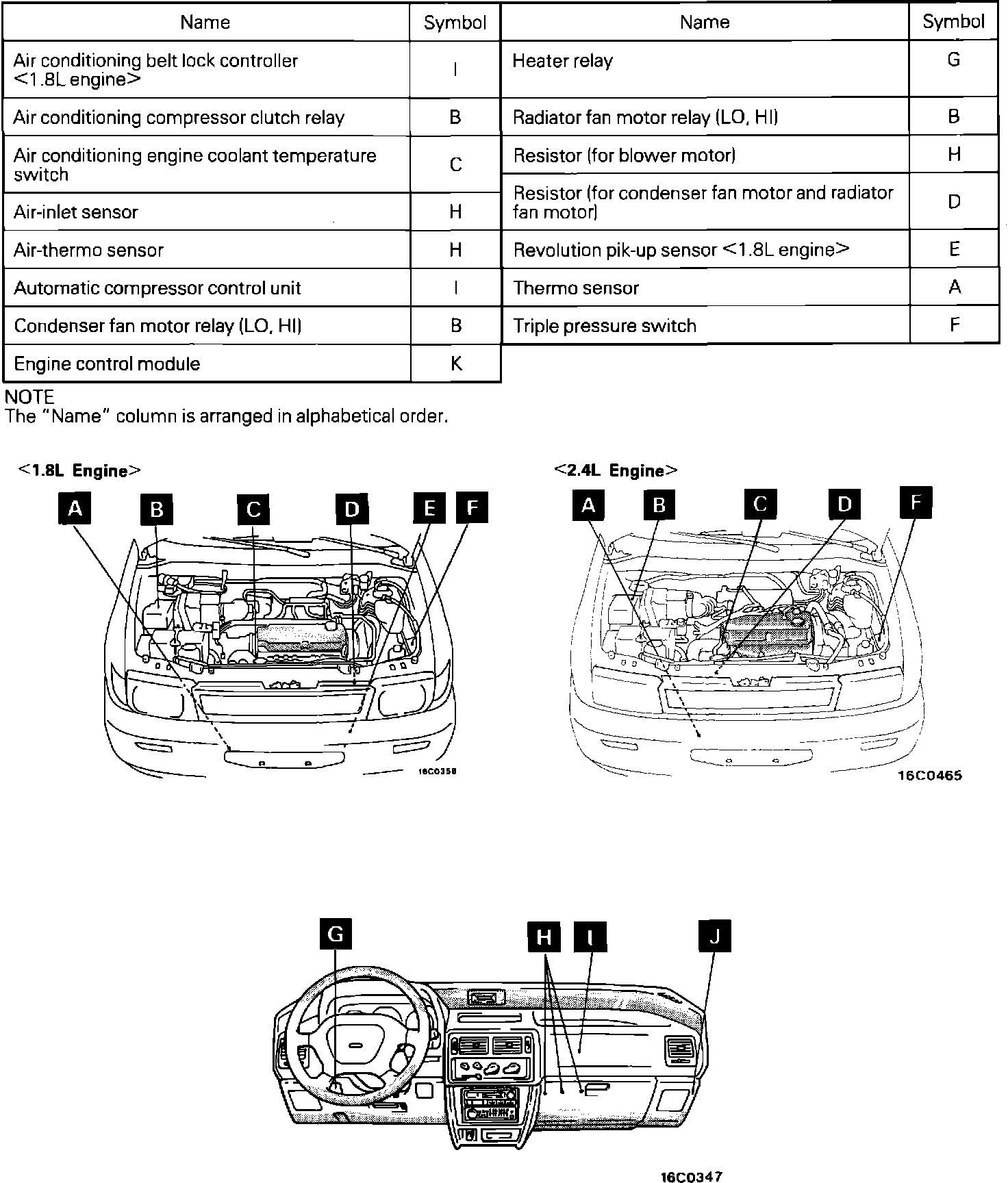

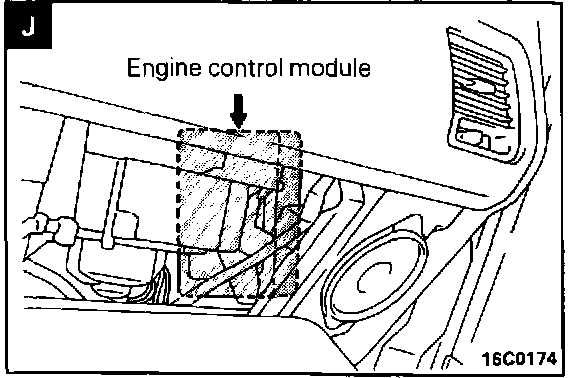

Heater And Air Conditioning Component Locations:

Heater And Air Conditioning Component Locations:

Heater And Air Conditioning Component Locations:
