Rear

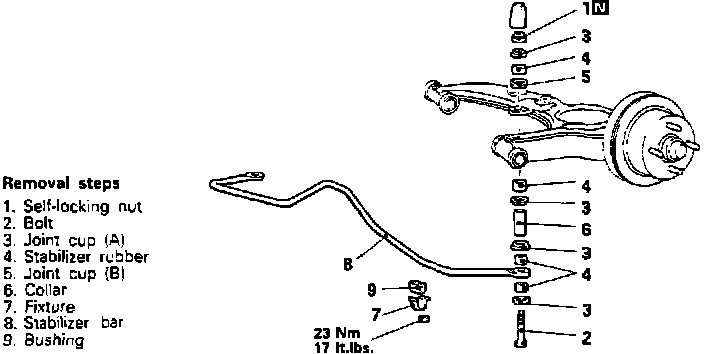

Fig. 27 Removing rear stabilizer bar. Colt Vista & Summit Wagon:

1. When replacing stabilizer bar.
2. Reverse procedure to install noting the following:

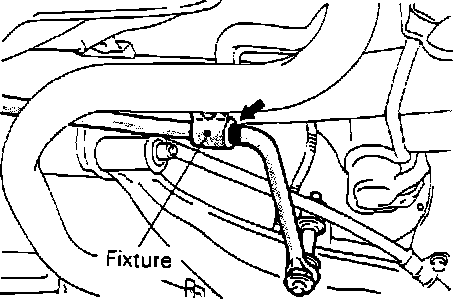

Fig. 28 Installing stabilizer fixture. Colt Vista & Summit Wagon:

a. Position stabilizer bar with painted section aligned with fixture as shown.

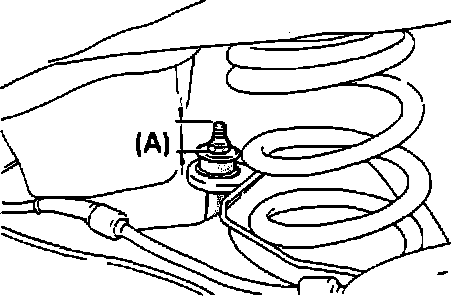

Fig. 29 Installing self locking nut. Colt Vista & Summit Wagon:

b. Install locknut to a value of A (A = 0.98 to 1.06 inches).
