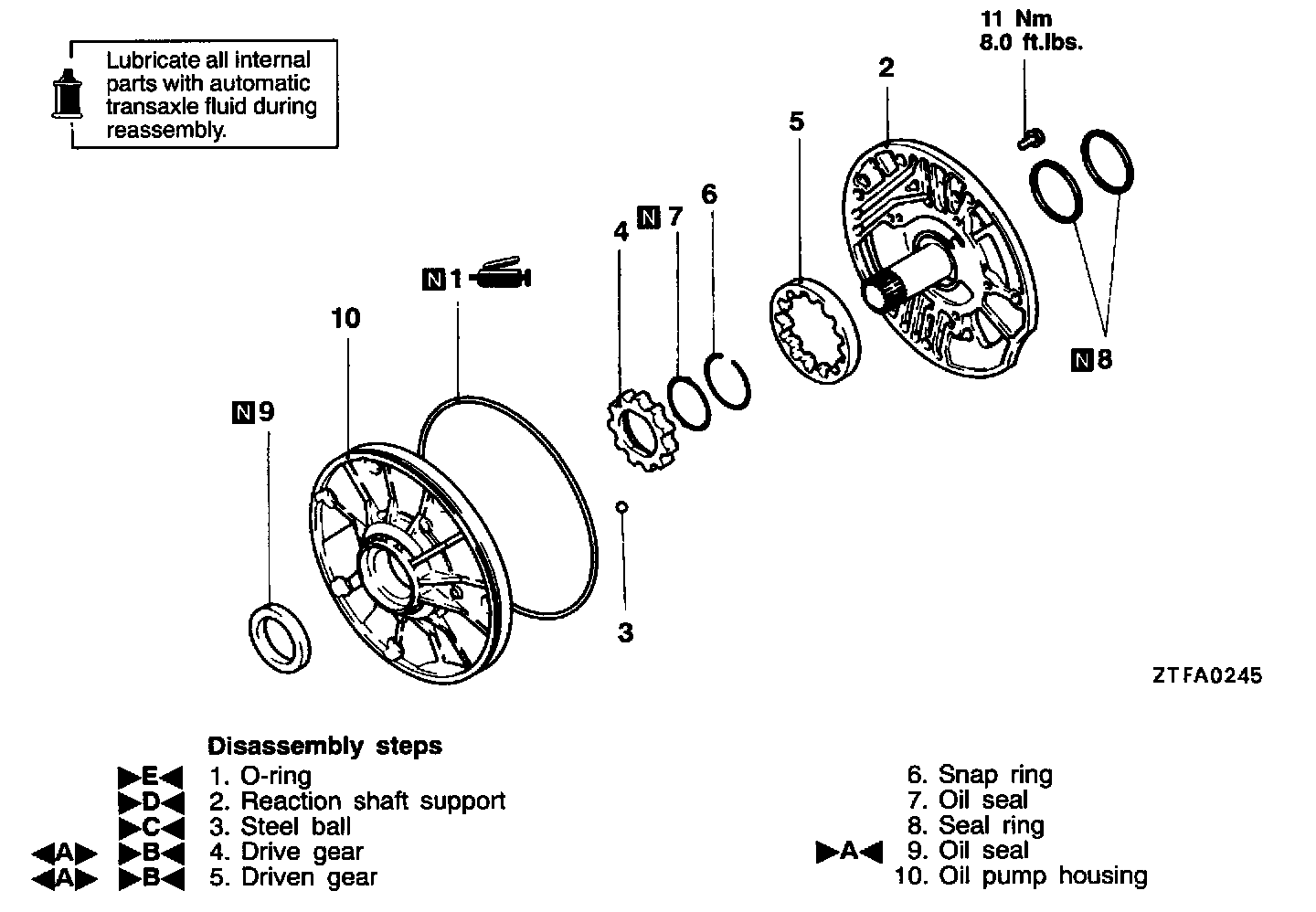

Disassembly
Disassembly
A.
DRIVE GEAR/DRIVEN GEAR REMOVAL
Make reassembly alignment marks on the drive and driven gears.
