Antilock Brakes / Traction Control Systems
>>
Chart C - Warning Light Does Not Illum When Ign Key In "Start"
Chart C - Warning Light Does Not Illum When Ign Key In "Start"

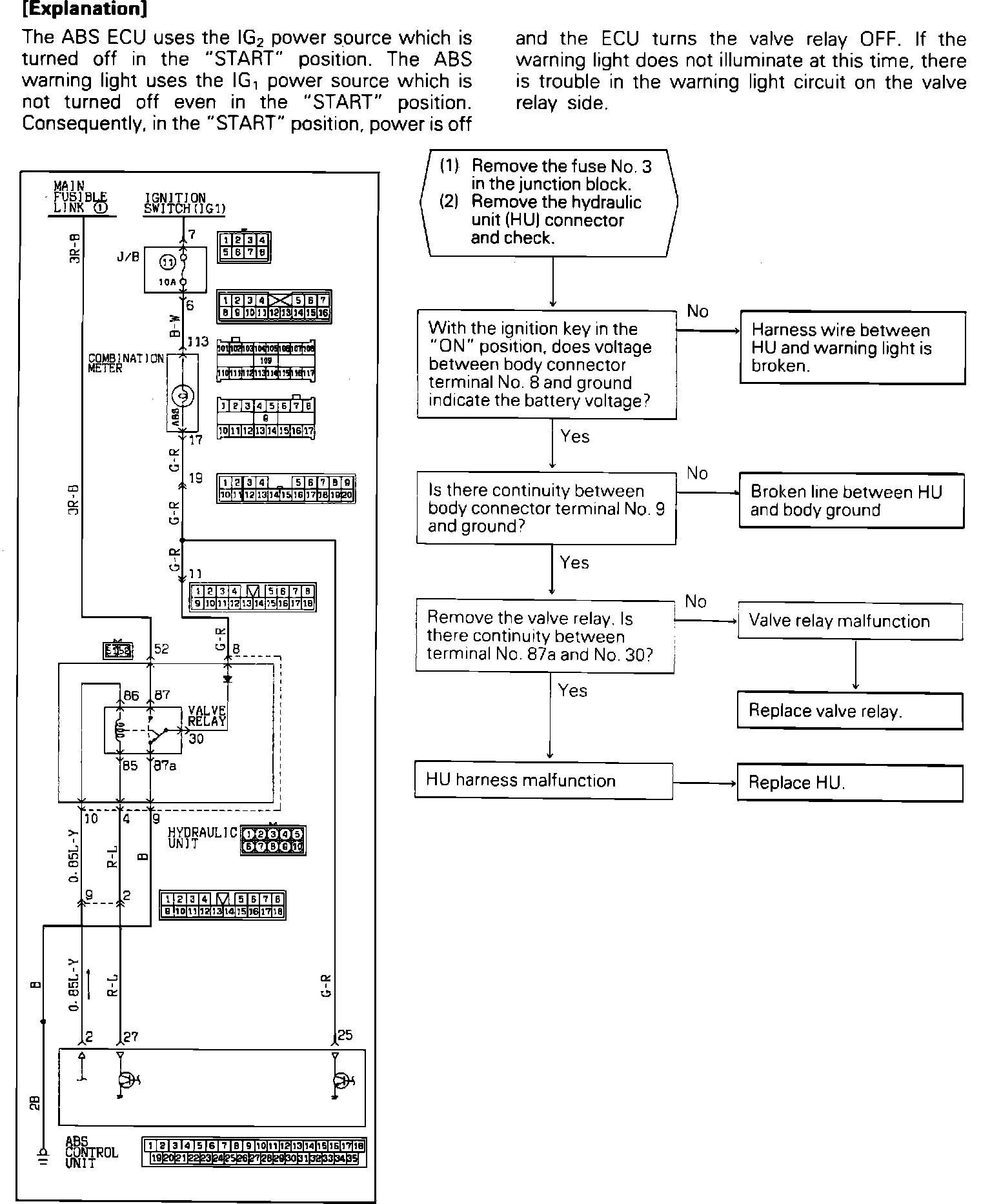

Fig. 29 ABS Chart C, ABS Warning Light Does Not Illuminate When Key Is In The "START" Position:
