Eagle
>>
1993
>>
Summit Vista FWD L4-1795cc 1.8L SOHC
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Antilock Brakes / Traction Control Systems
>>

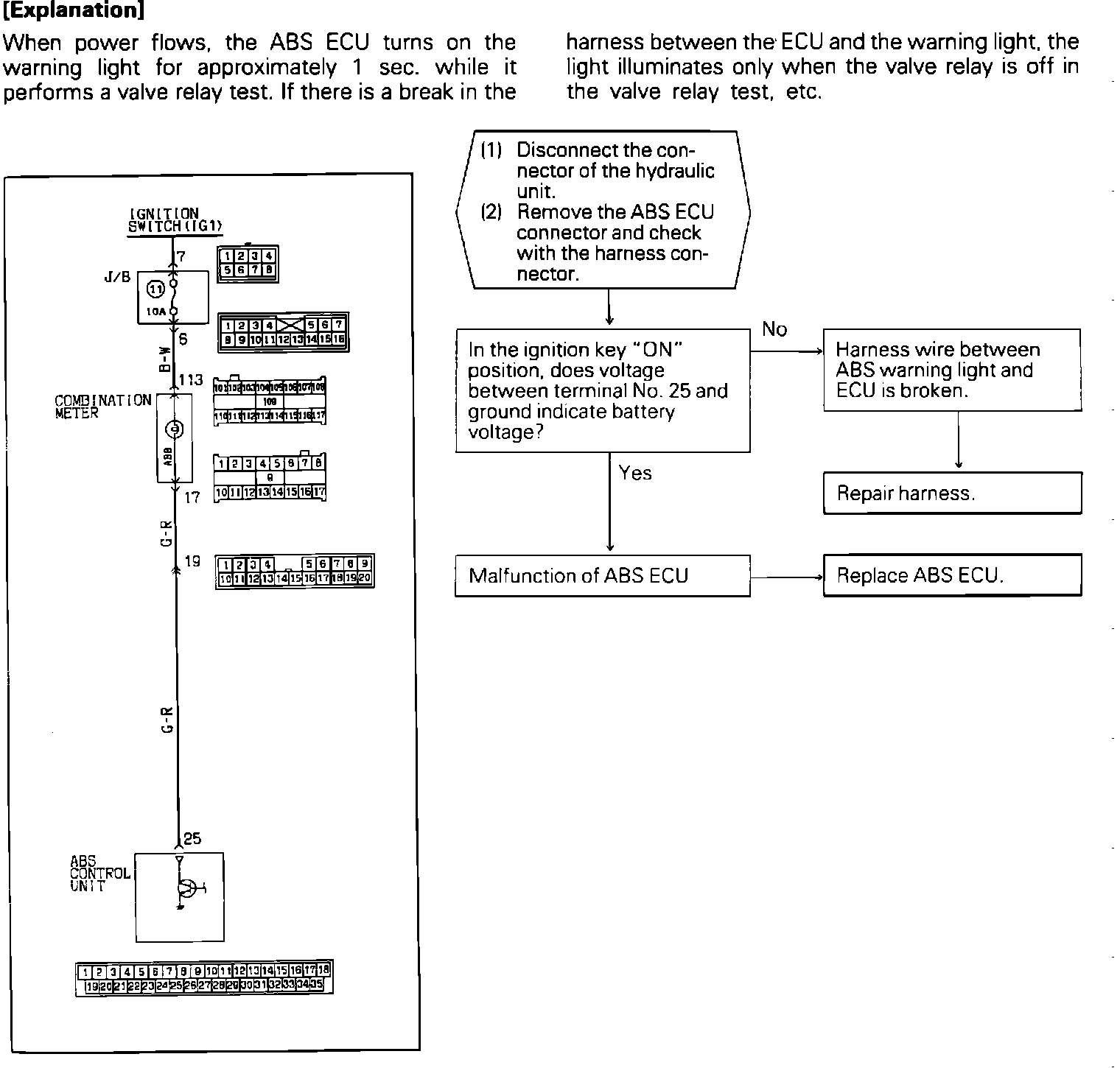

Chart D - Warning Light Blinks Once After Ignition Key On
Chart D - Warning Light Blinks Once After Ignition Key On
Fig. 32, ABS Chart D:
