Summit Vista FWD L4-1795cc 1.8L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Grounds
>>
Engine Compartment Grounds
Engine Compartment Grounds

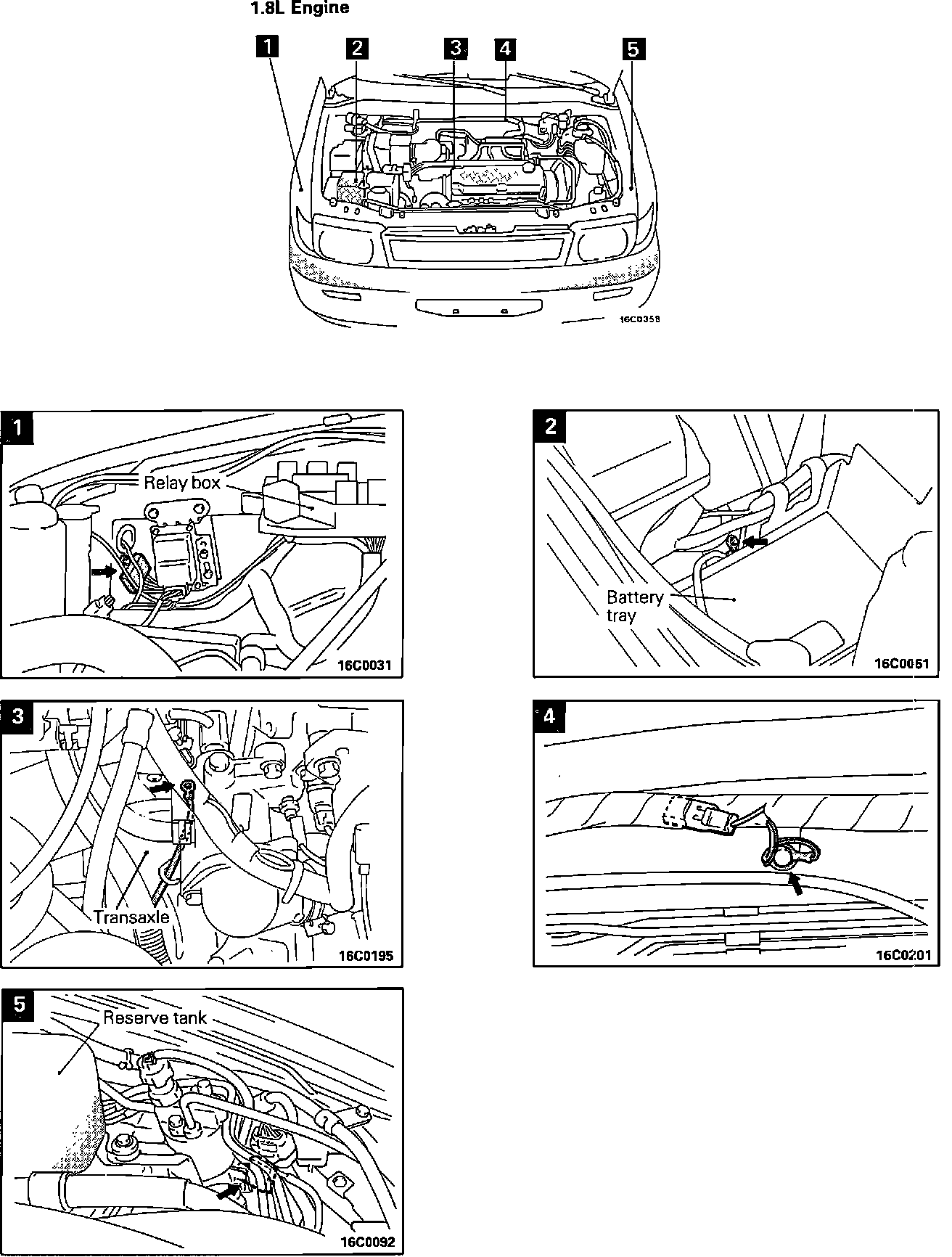

Grounding Locations (Engine Compartment):
