Diesel Data: Automotive Repair

Home >> Eagle >> 1993 >> Summit Vista FWD L4-1795cc 1.8L SOHC >> Repair and Diagnosis >> Locations >> Connector Locations >> Engine Compartment & Engine Connector Locations

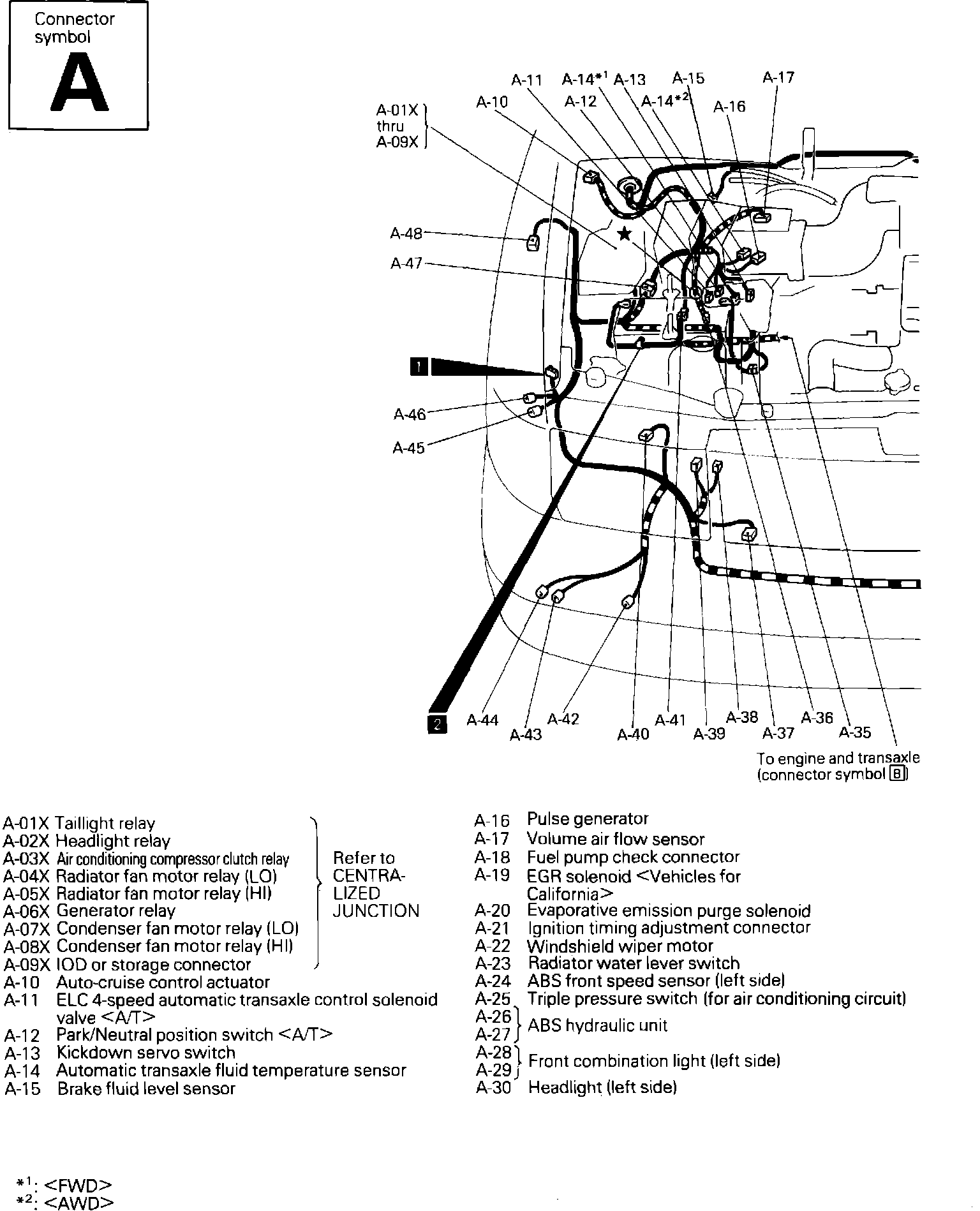

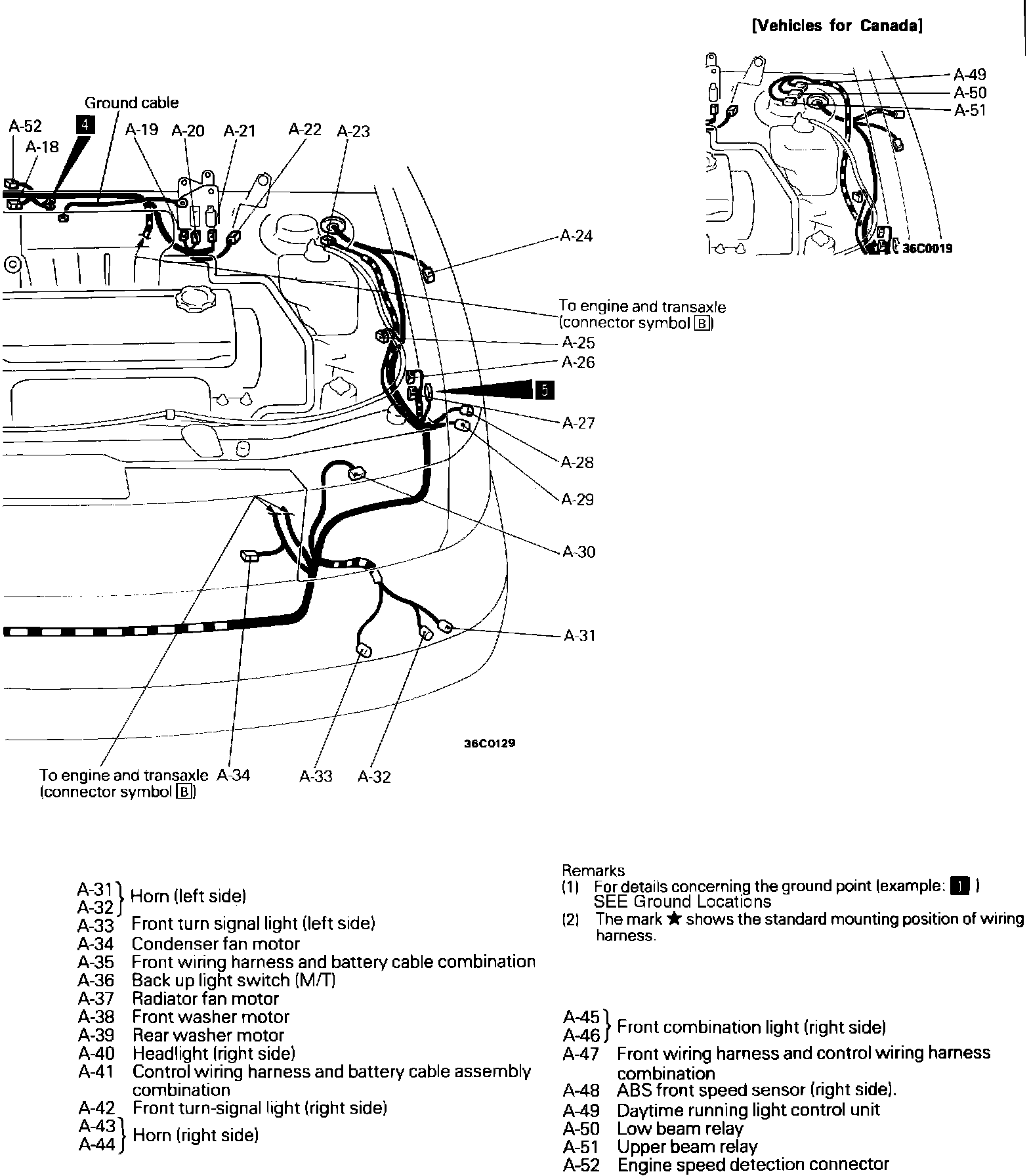

Engine Compartment & Engine Connector Locations

Engine Compartment Connectors:

Engine Compartment Connectors:
