Chart E2 - Output Abnormality of Wheel Speed Sensor
Chart E2 - Output Abnormality of Wheel Speed Sensor

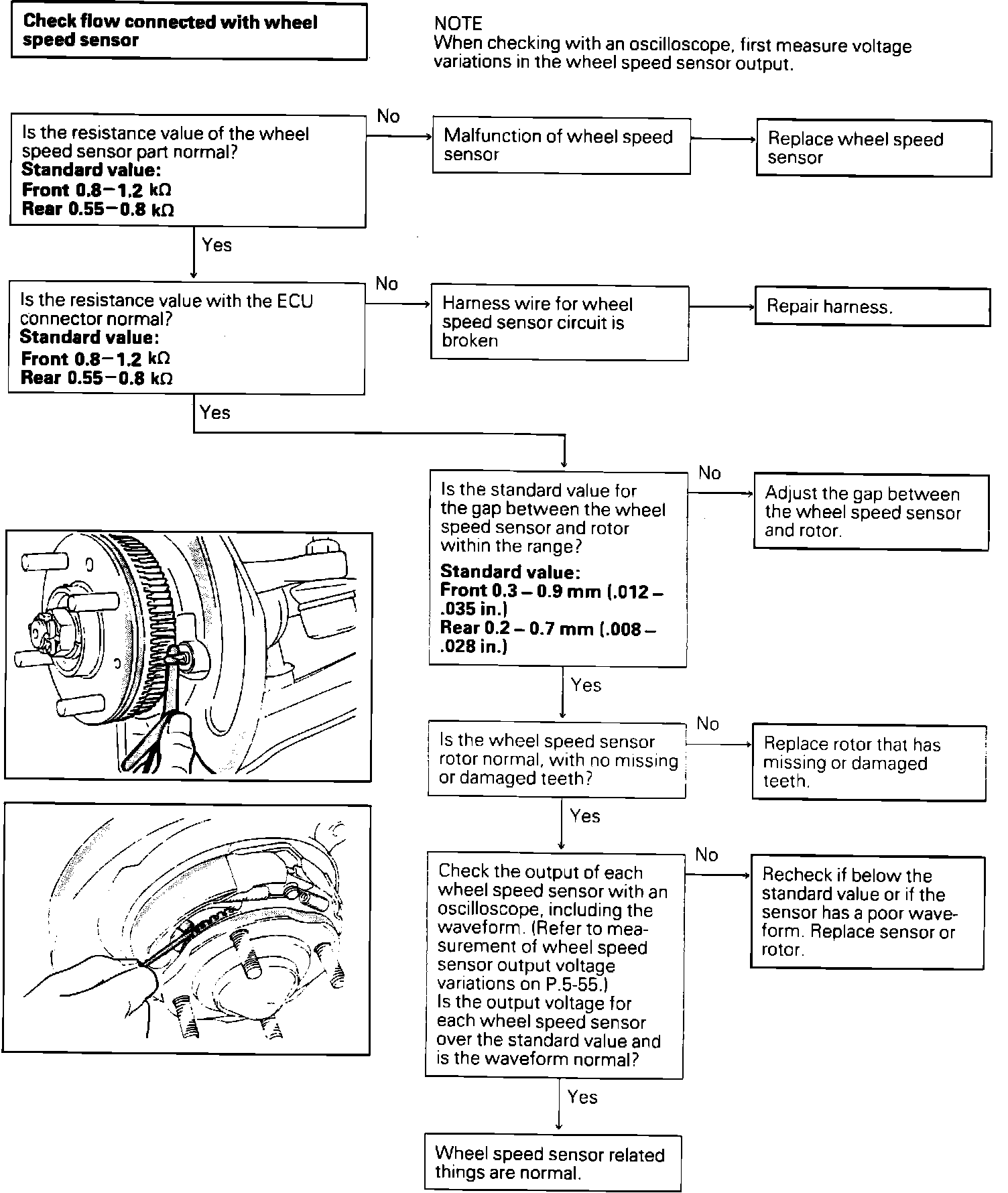

Chart E-2 Output Abnormality Of Wheel Speed Sensor (part 1 Of 2):

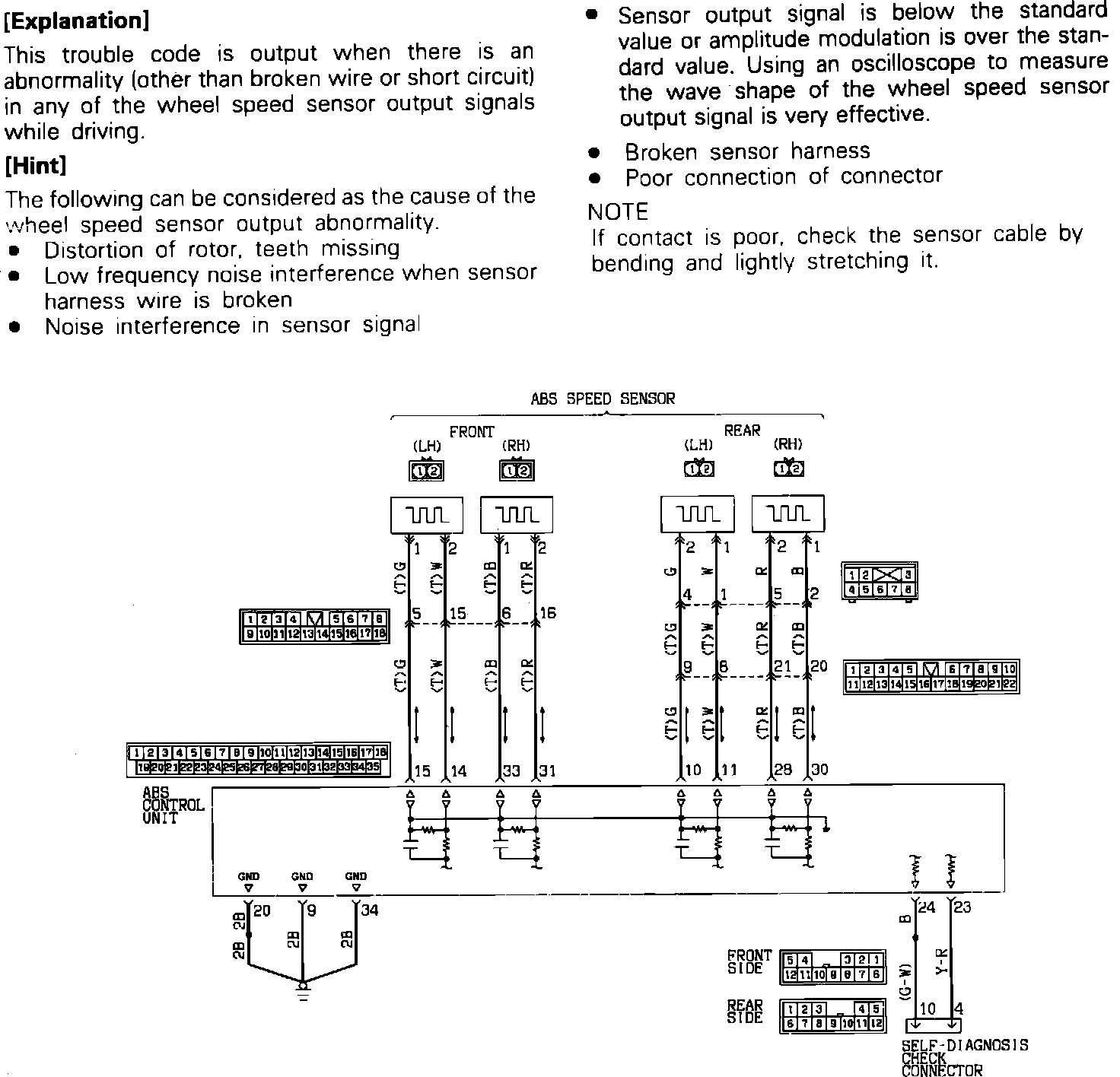

Fig.8 Chart E-2, Wheel Speed Sensor Abnormality (Part 2 Of 2):
