Chart E3 - Abnormality of Stop Light Switch Circuit

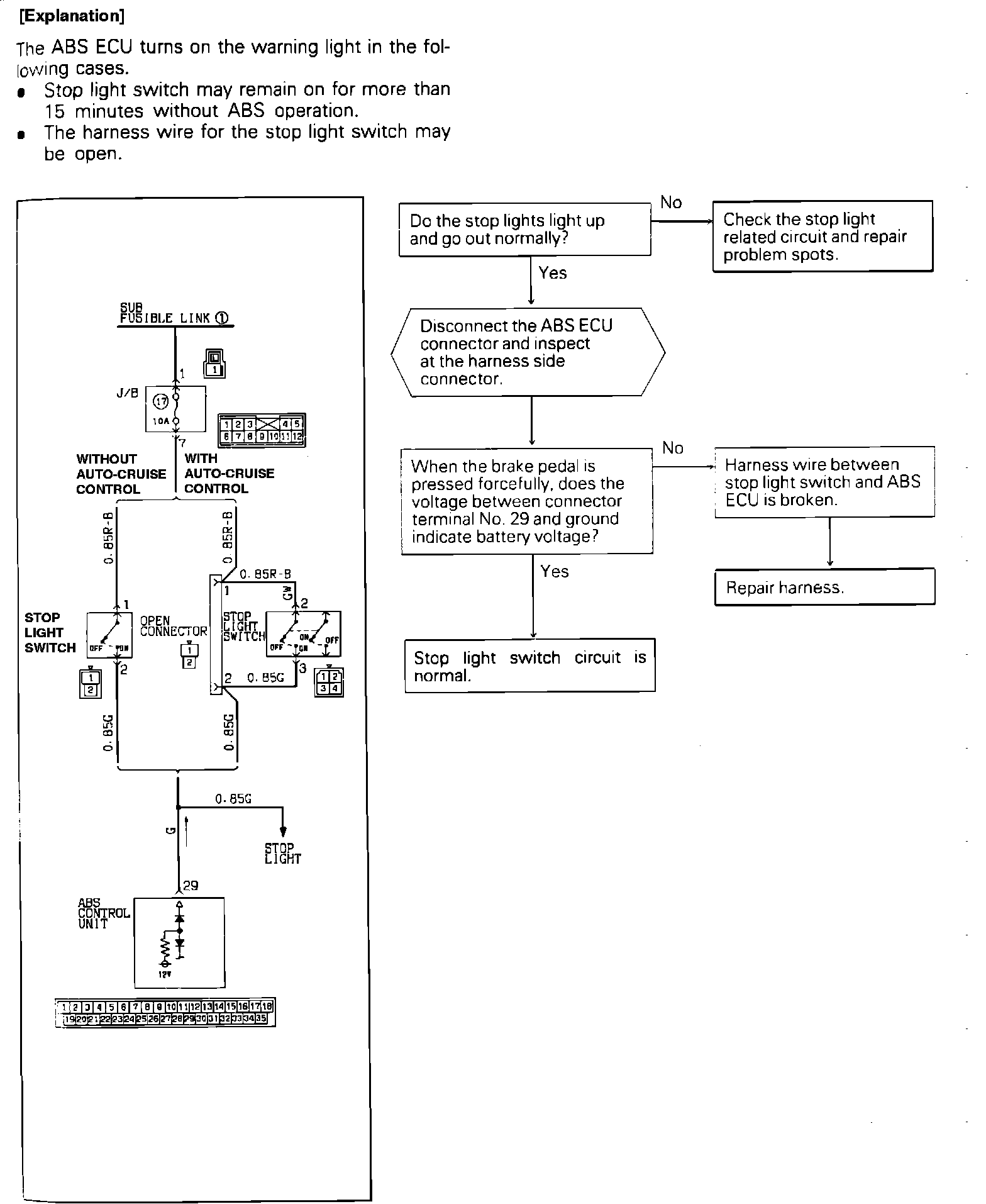

Fig. 11 Chart E-3, Stop Light Switch Abnormality Diagnosis:
