Heater Core: Service and Repair

Heater Core Replacement:

1. Raise and support vehicle then drain cooling system into a suitable container.
2. Remove floor console and instrument panel as outlined in the Dash Panel Service section.

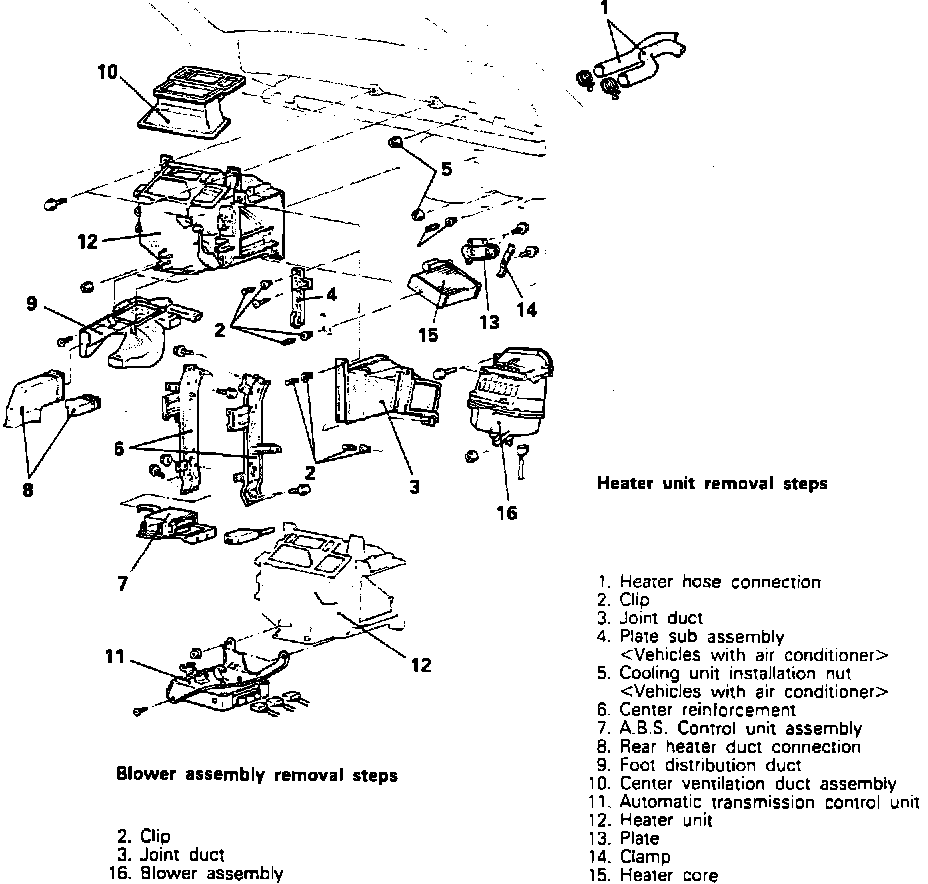

3. Replace blower motor in numbered sequence shown.
4. Reverse procedure to install.
