Home
>>
Eagle
>>
1993
>>
Talon FWD L4-1753cc 1.8L SOHC
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
2 and 3 Digit Codes
2 and 3 Digit Codes

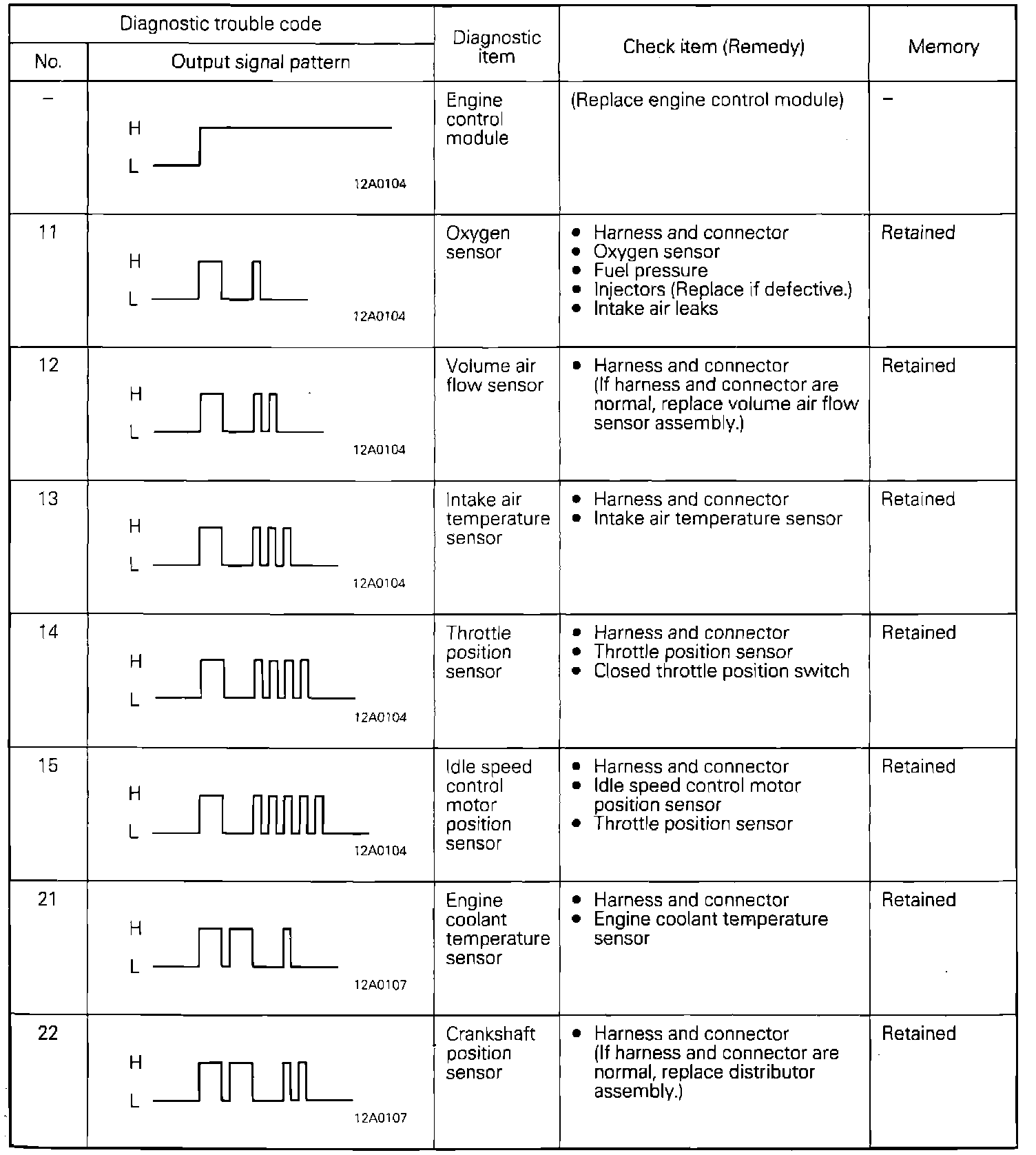

Codes 11 - 22:

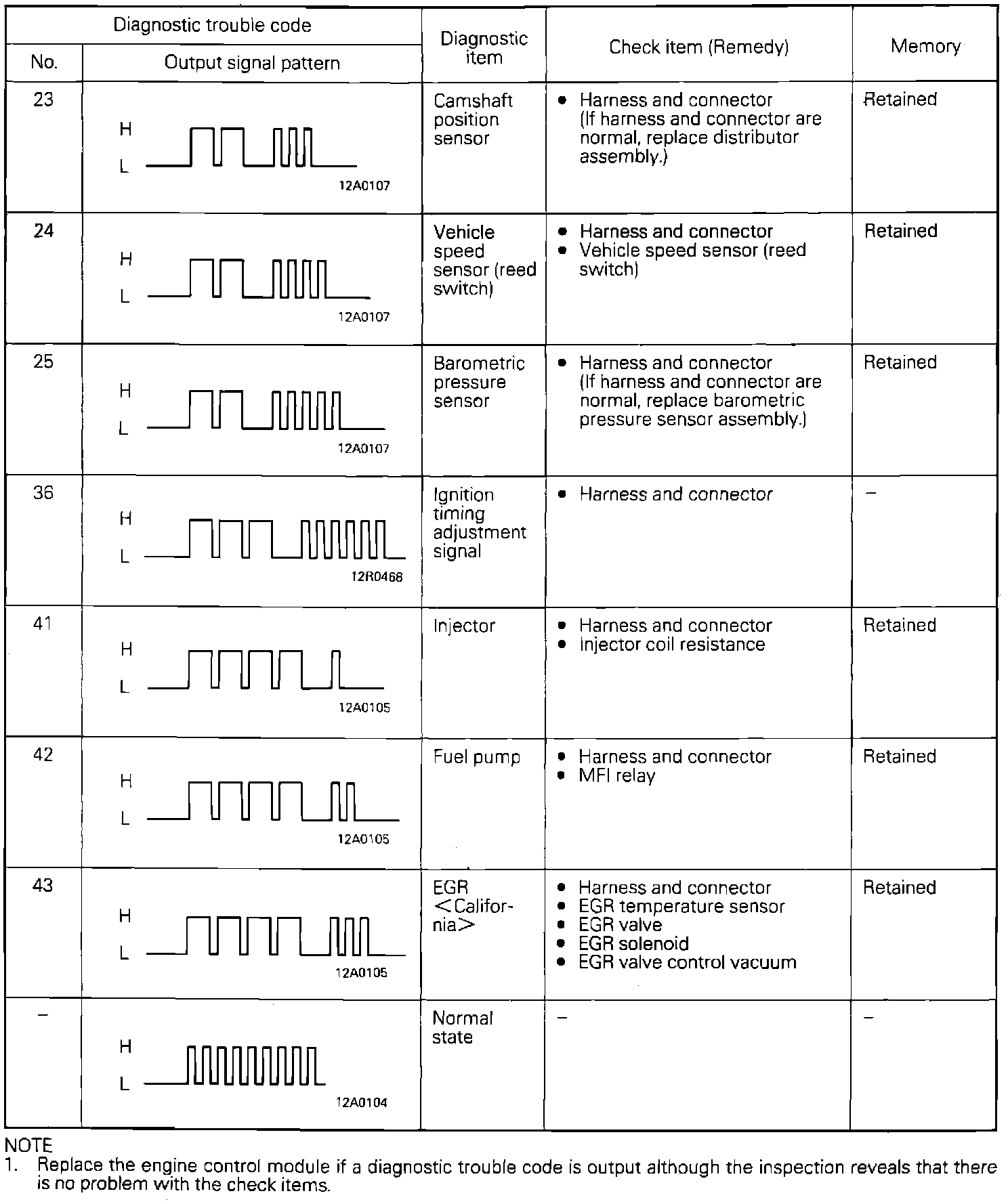

Codes 23 - 43:

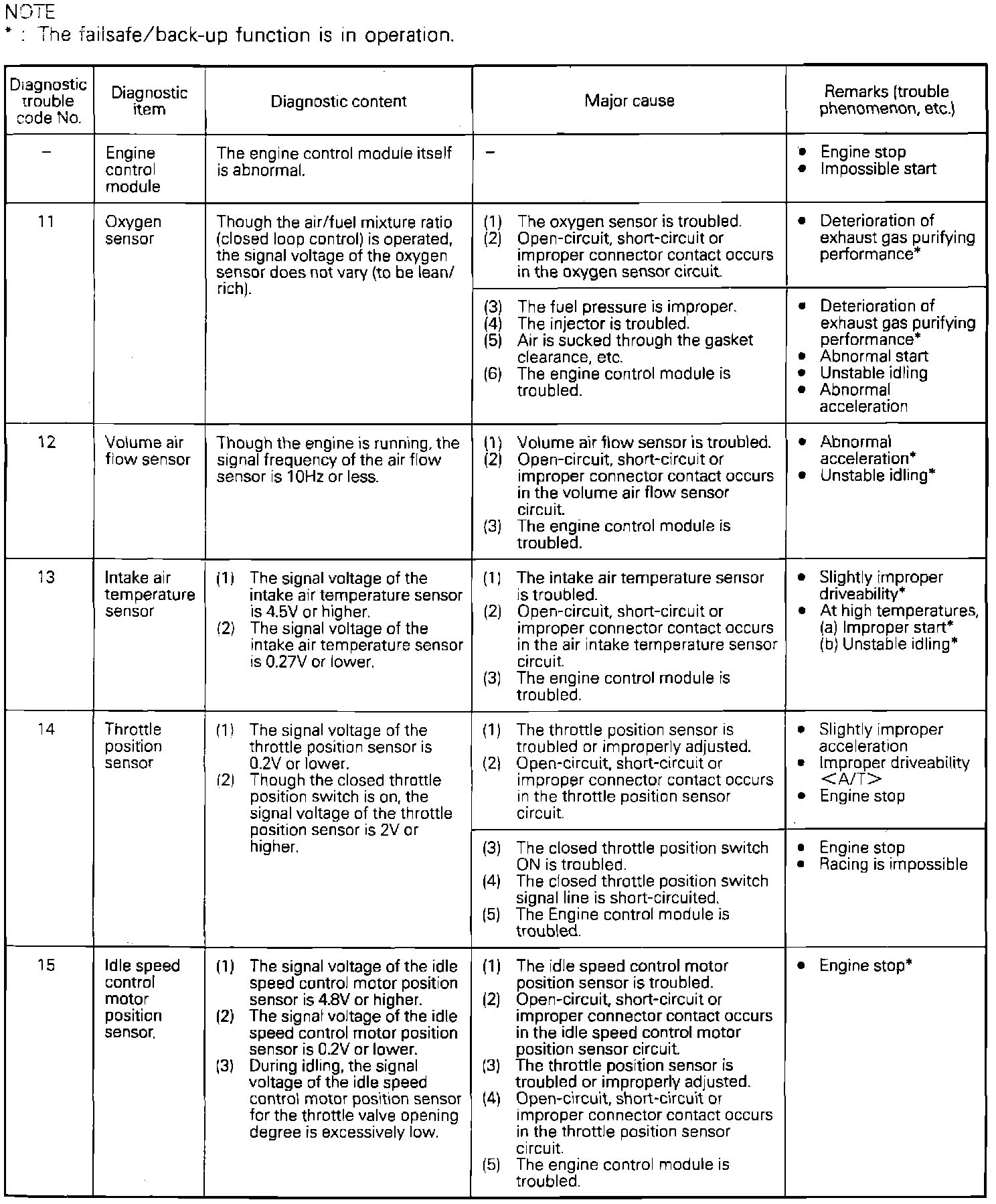

Fault Code Cause And Effect Chart:

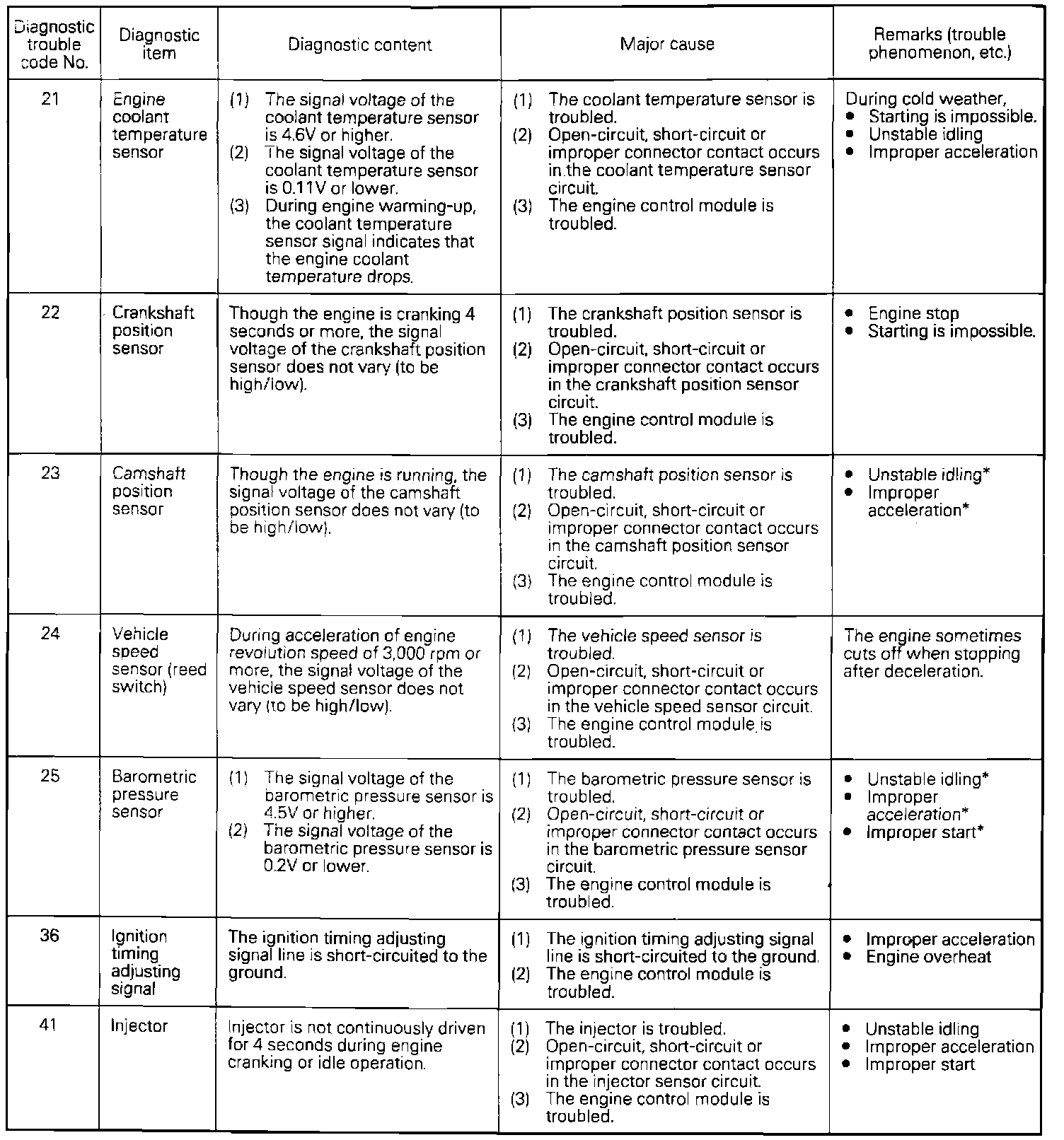

21 - 41:

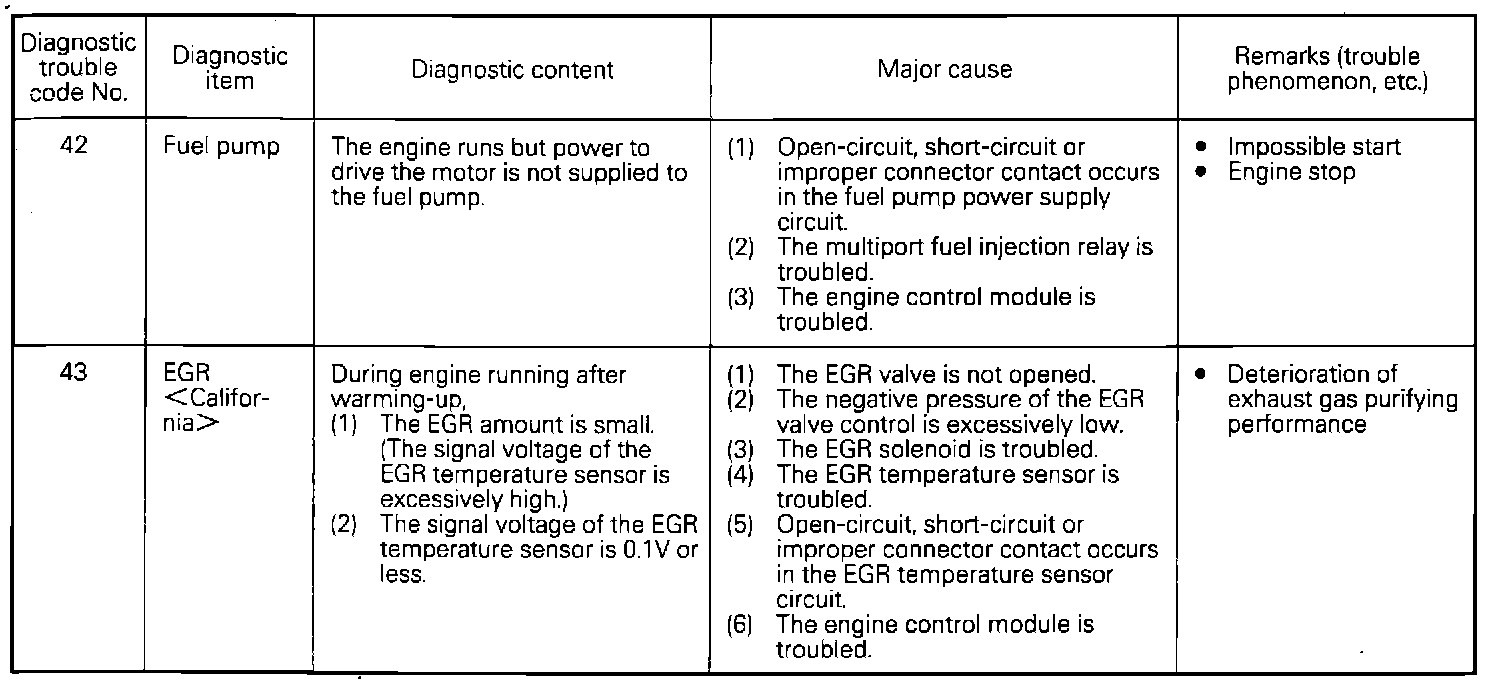

42 - 43:
