Diesel Data
: Automotive Repair
Home
>>
Eagle
>>
1993
>>
Talon FWD L4-1753cc 1.8L SOHC
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Driveability (DR) Tests
>>

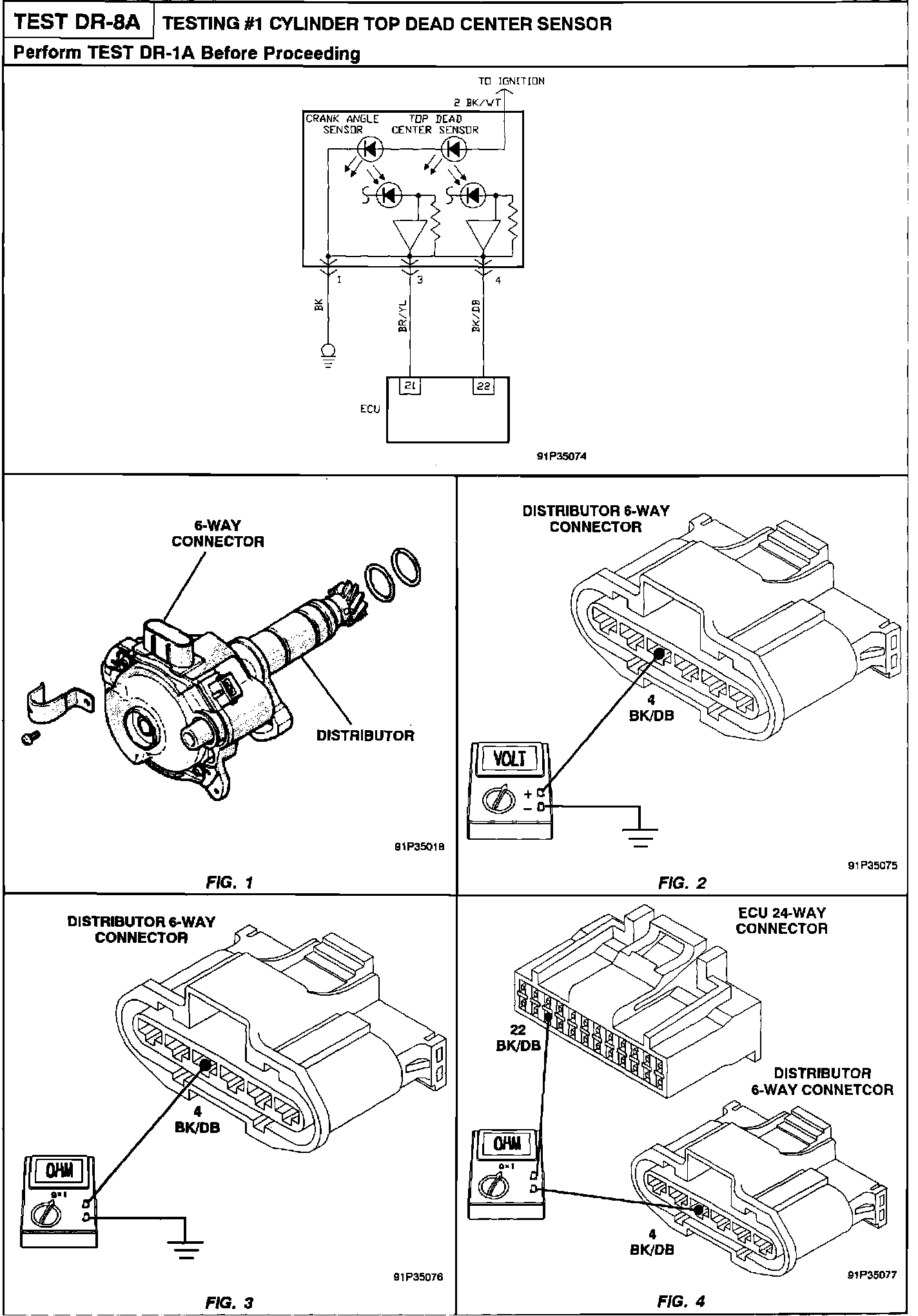

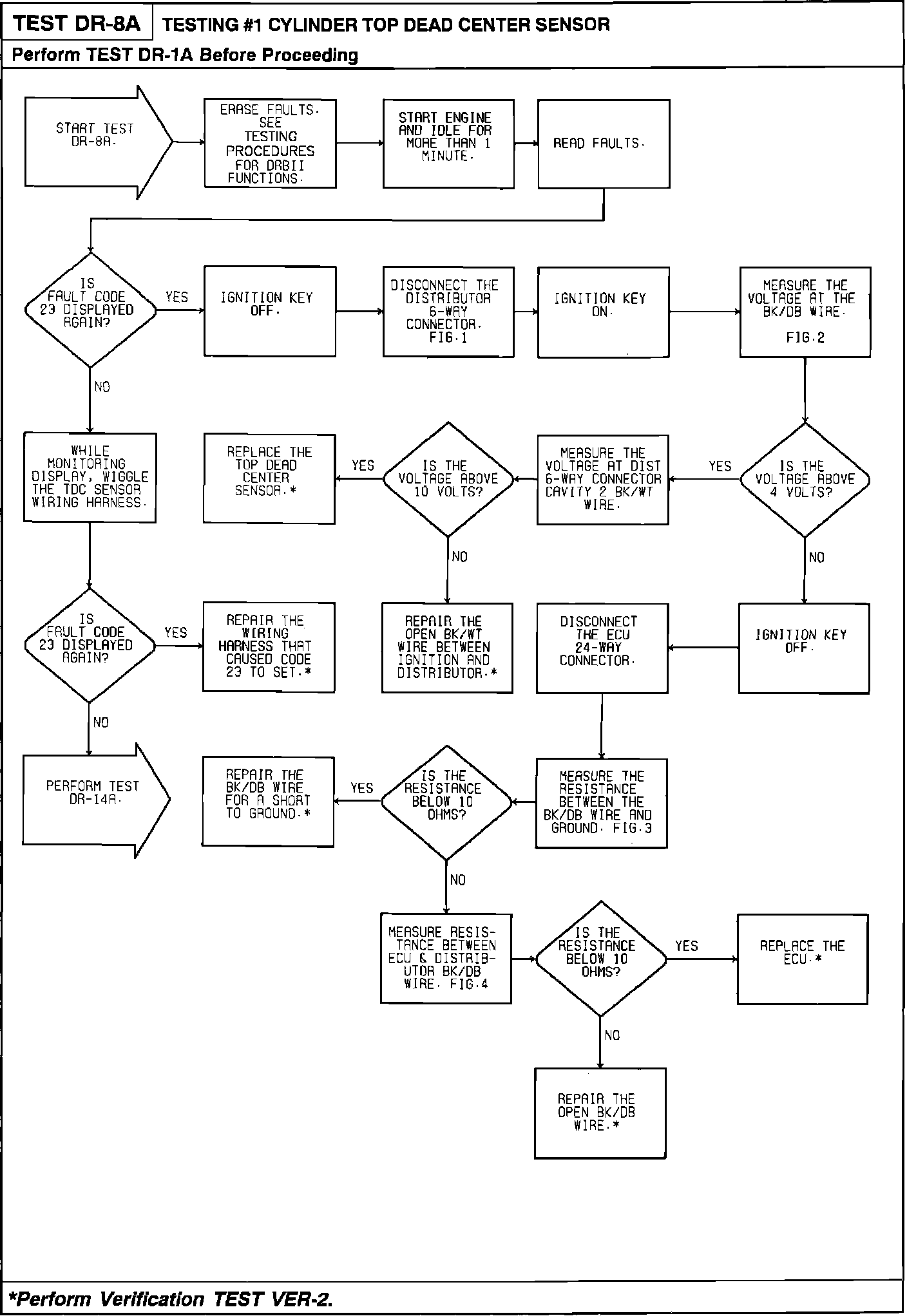

DR-8A Testing #1 Cylinder Top Dead Center Sensor
DR-8A Testing #1 Cylinder Top Dead Center Sensor
