Home >> Eagle >> 1993 >> Talon FWD L4-1753cc 1.8L SOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Powertrain Management >> Engine Control Module

Engine Control Module

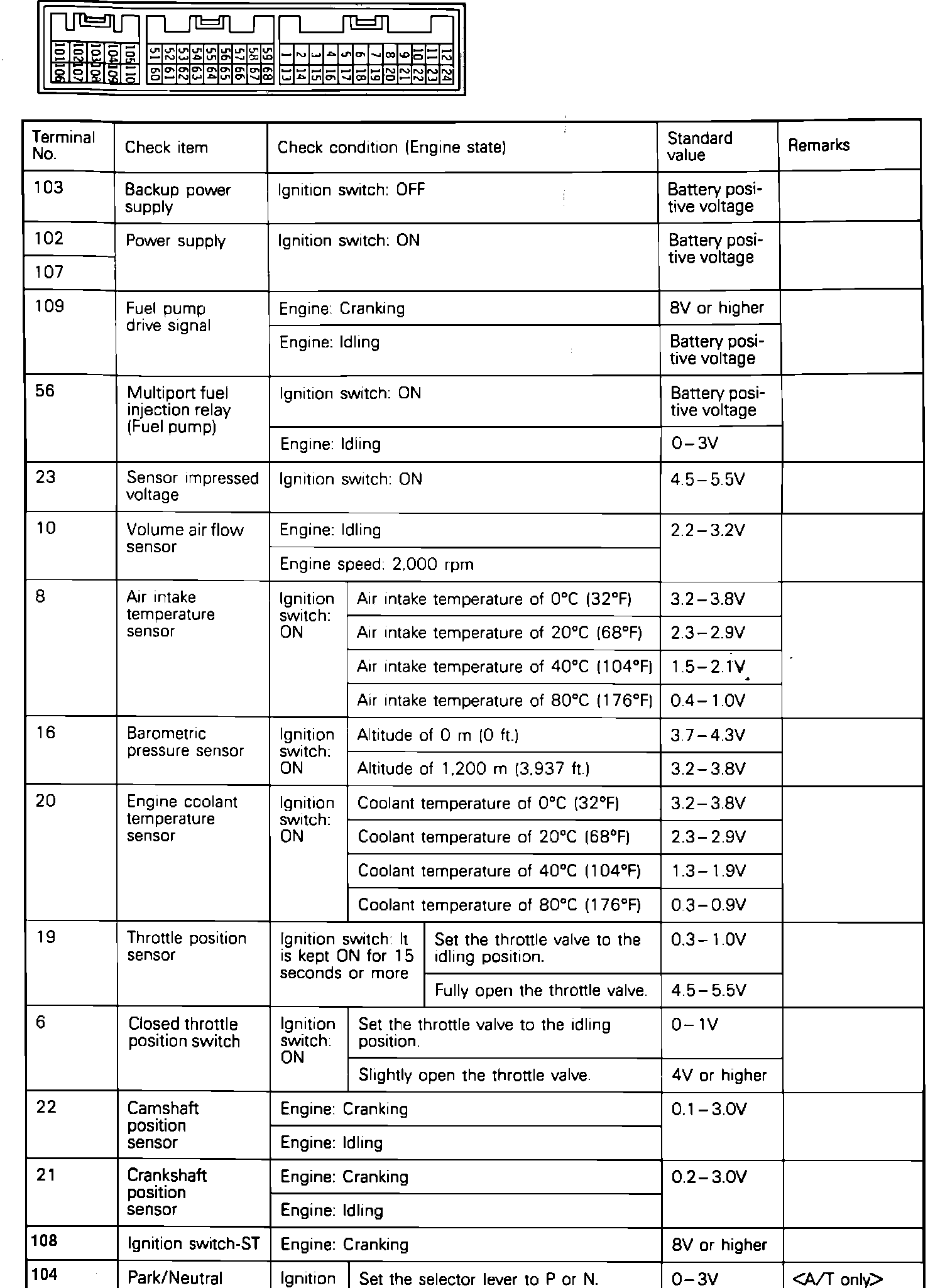

AA#�#ECU Terminal Voltage Chart:
