Eagle
>>
1993
>>
Talon FWD L4-1753cc 1.8L SOHC
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
B Connectors - Engine and Transaxle Harness
B Connectors - Engine and Transaxle Harness

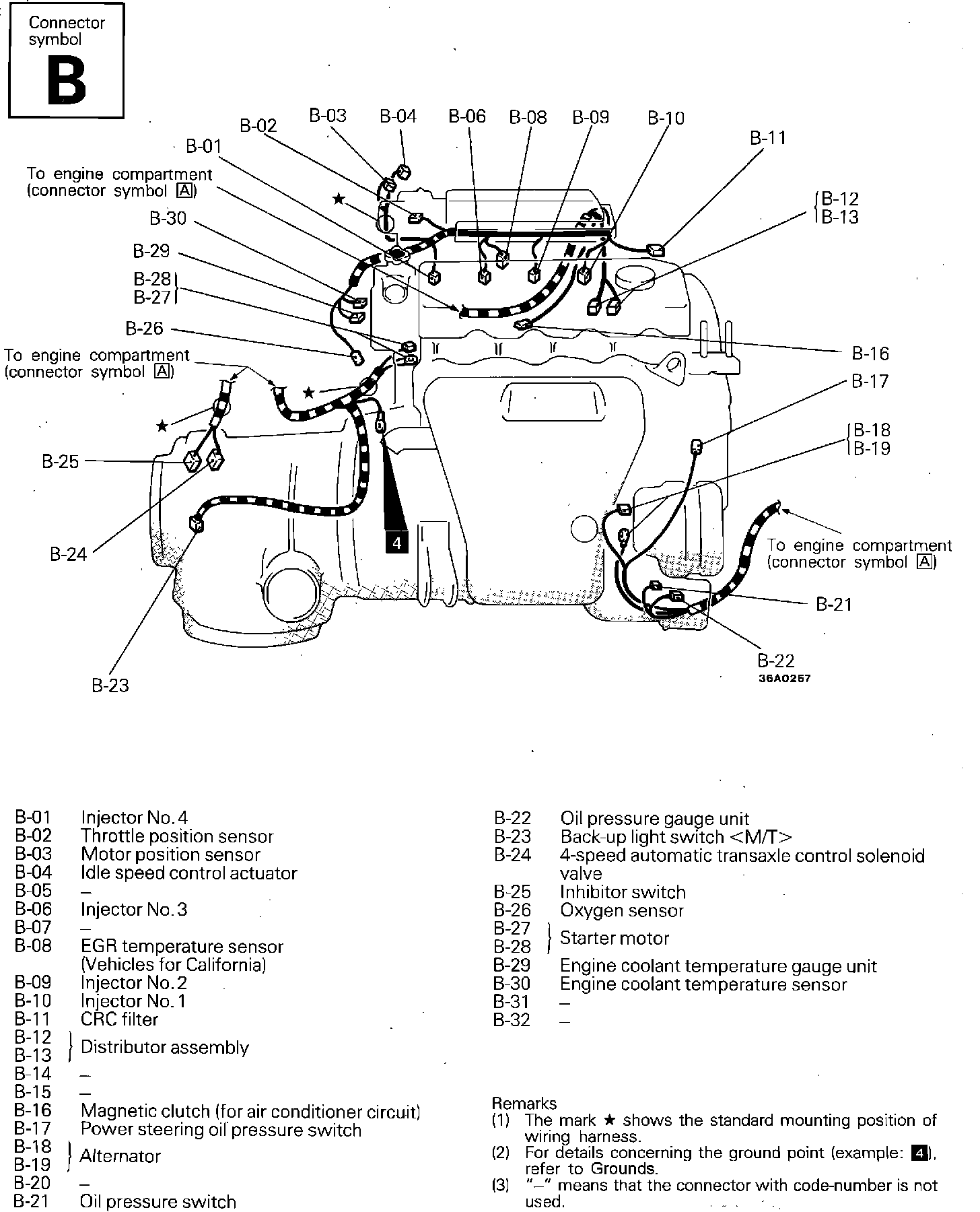

Connector Locations (Engine And Transaxle):
