Water Pump: Service and Repair

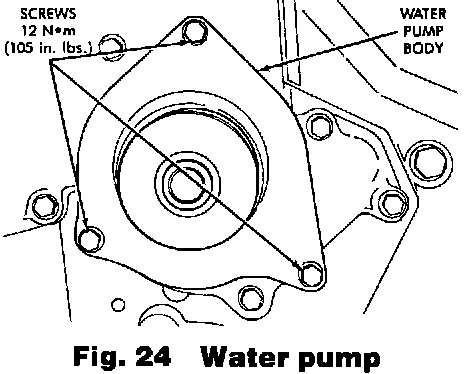

Fig. 24 Water Pump:

WATER PUMP REPLACE

1. Drain cooling system.
2. Remove timing belt as outlined under Timing Belt/Service and Repair.
3. Remove water pump mounting bolts then the water pump, Fig. 24.
4. Reverse procedure to install.
