Fuel Rail: Locations

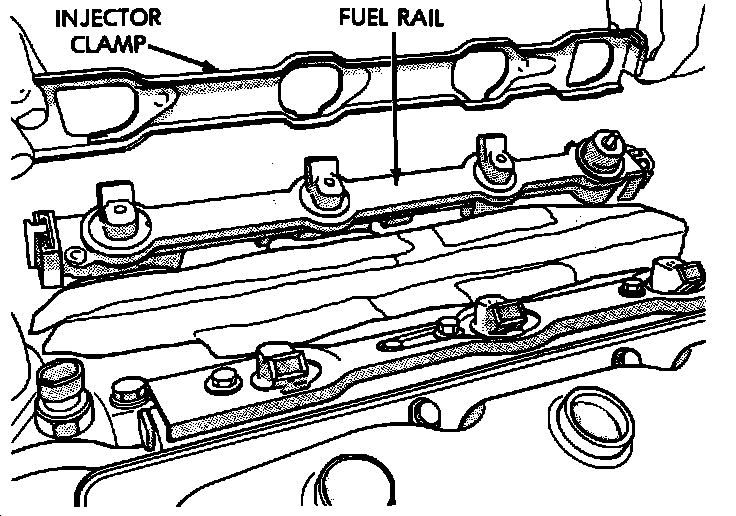

Fuel Injector Clamp 3.5L:






The fuel rail bolts to the intake manifold, and houses the fuel injectors, and the fuel pressure regulator.
