Brake Fluid Pump: Testing and Inspection

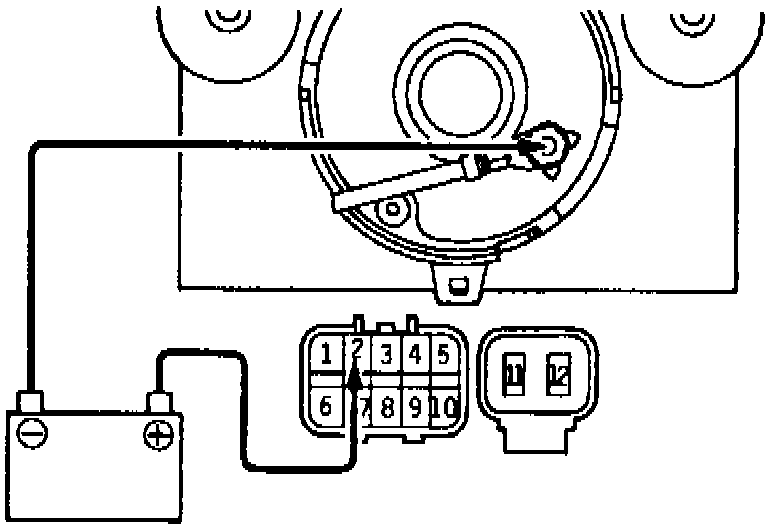

Fig 88 Motor Operation Check:

Connect battery voltage as shown, listen for motor operating sound. If motor operation is heard, motor operation is satisfactory. If motor operation cannot be heard, replace motor.
