Antilock Brakes / Traction Control Systems: Locations

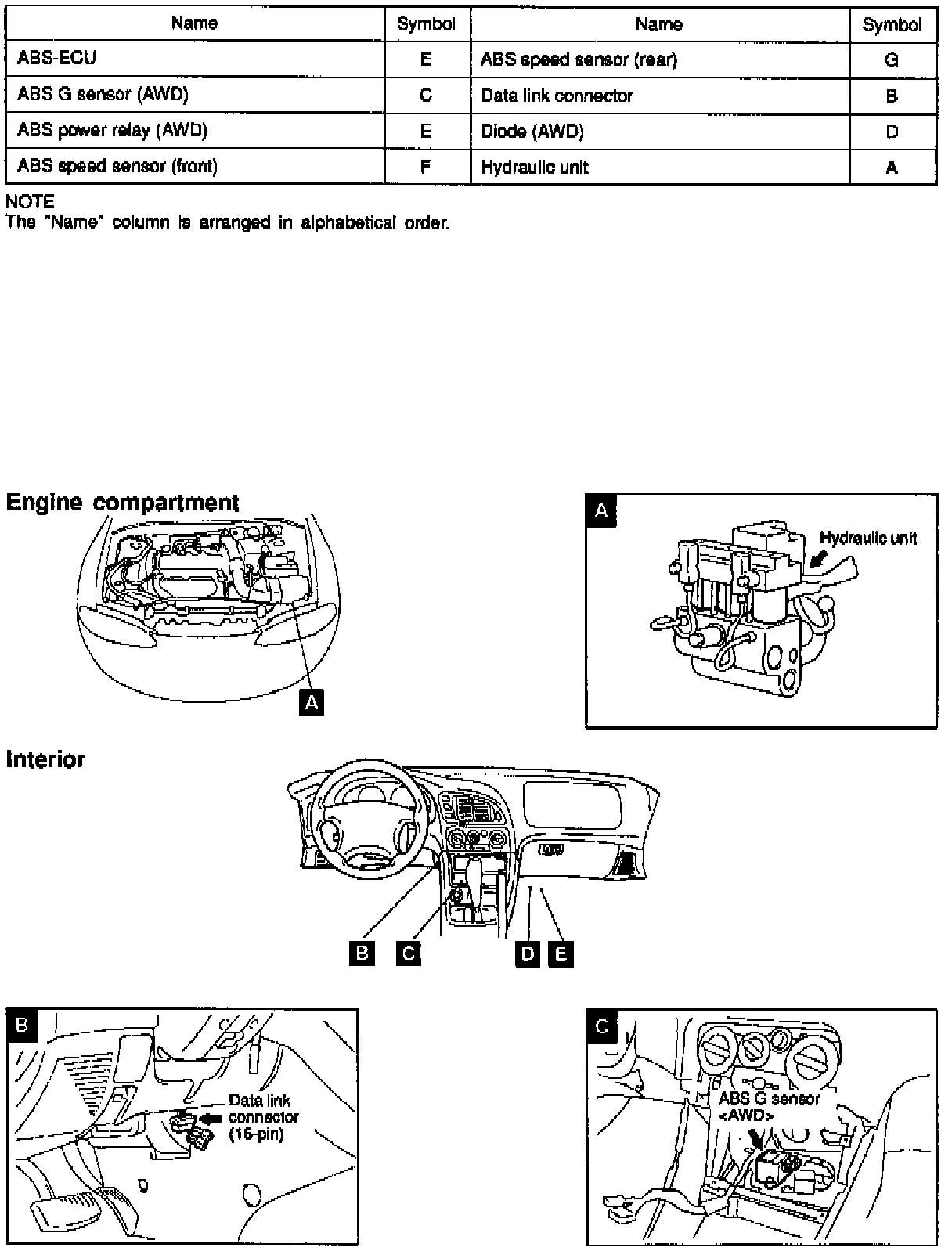

Fig 3 ABS Component Locations (Part 1 Of 2):

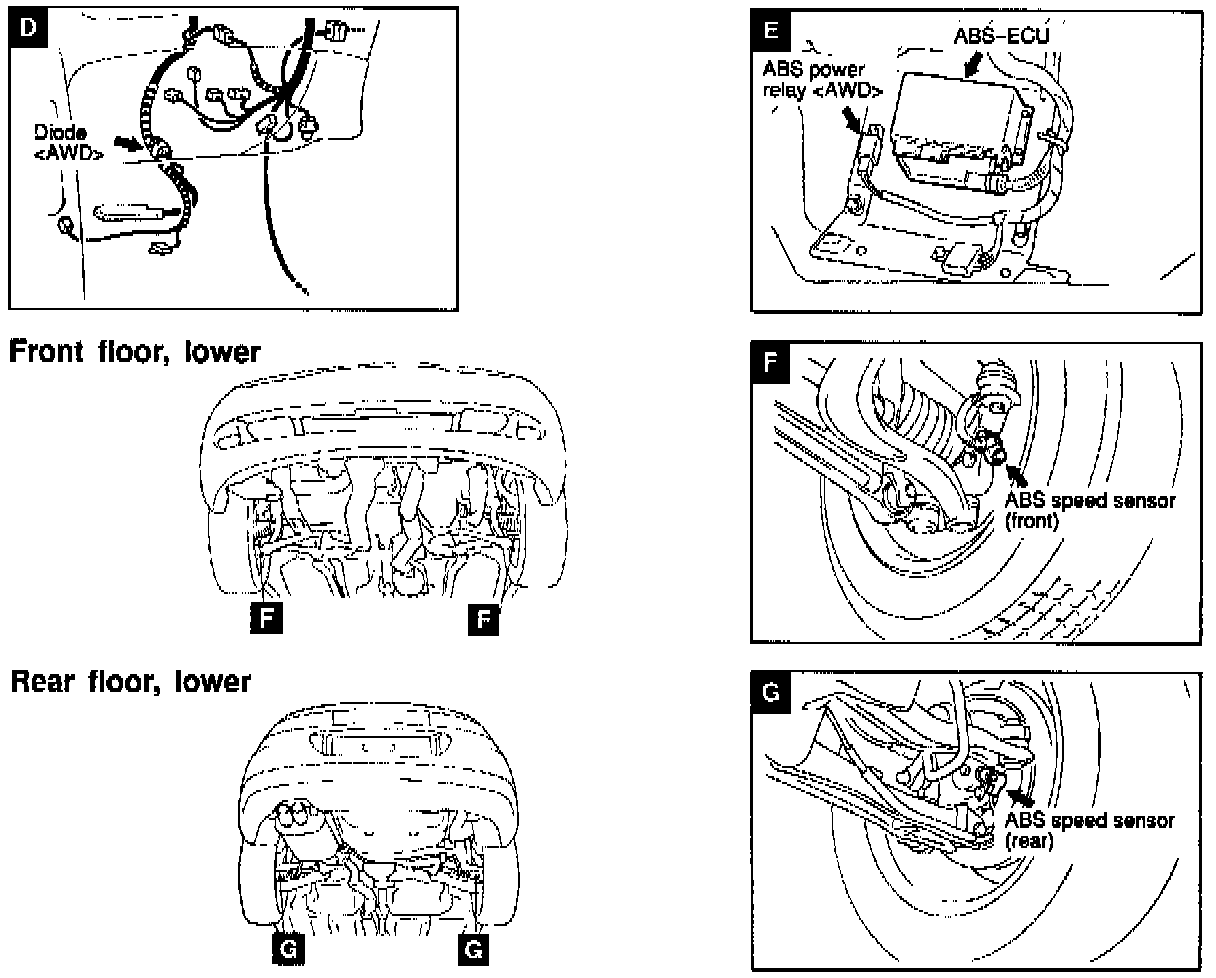

Fig 3 ABS Component Locations (Part 2 Of 2):
