Diesel Data
: Automotive Repair
Home
>>
Eagle
>>
1996
>>
Summit L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
1, 2 and 3 Digit Codes
>>
11
1, 2 and 3 Digit Codes: 11

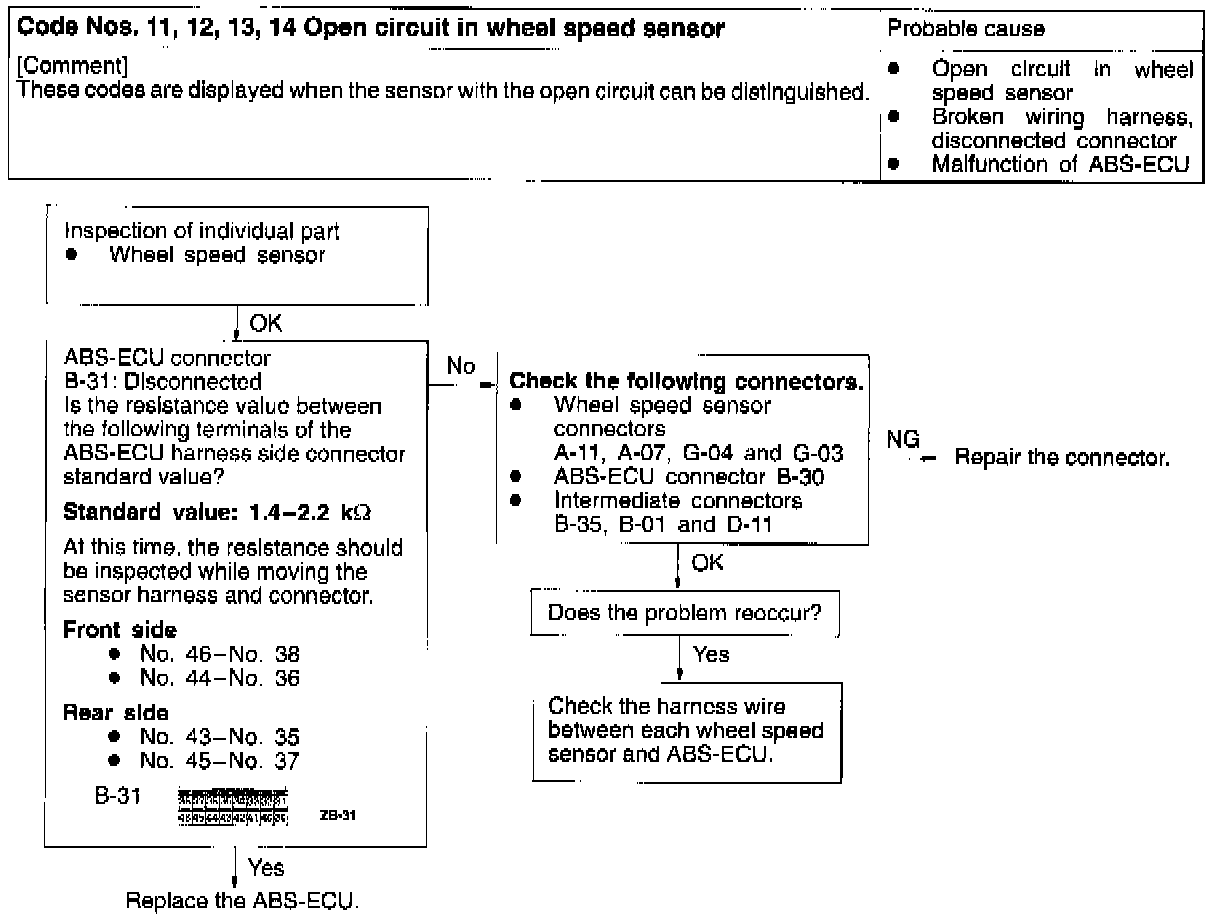

Fig 52 Codes 11, 12, 13 & 14: Open Circuit In Wheel Speed Sensor:
