Diesel Data: Automotive Repair
Home >> Eagle >> 1996 >> Summit L4-1468cc 1.5L SOHC >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> 1, 2 and 3 Digit Codes >> 23

1, 2 and 3 Digit Codes: 23

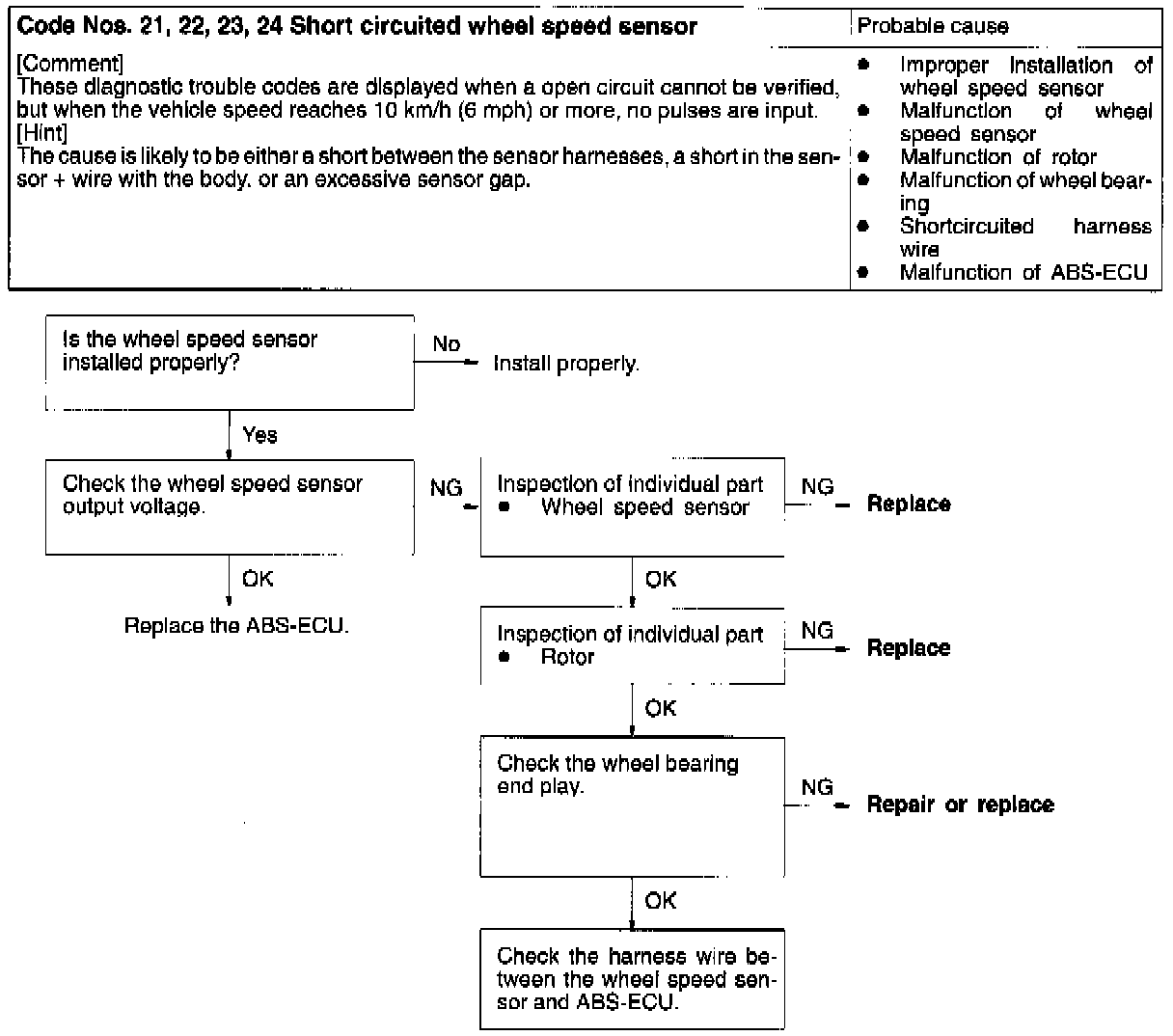

Fig 55 Codes 21, 22, 23 & 24: Short Circuited Wheel Speed Sensor:
