Eagle
>>
1996
>>
Summit L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
1, 2 and 3 Digit Codes
>>
25
>>
Antilock Brakes and Traction Control System
Antilock Brakes and Traction Control System

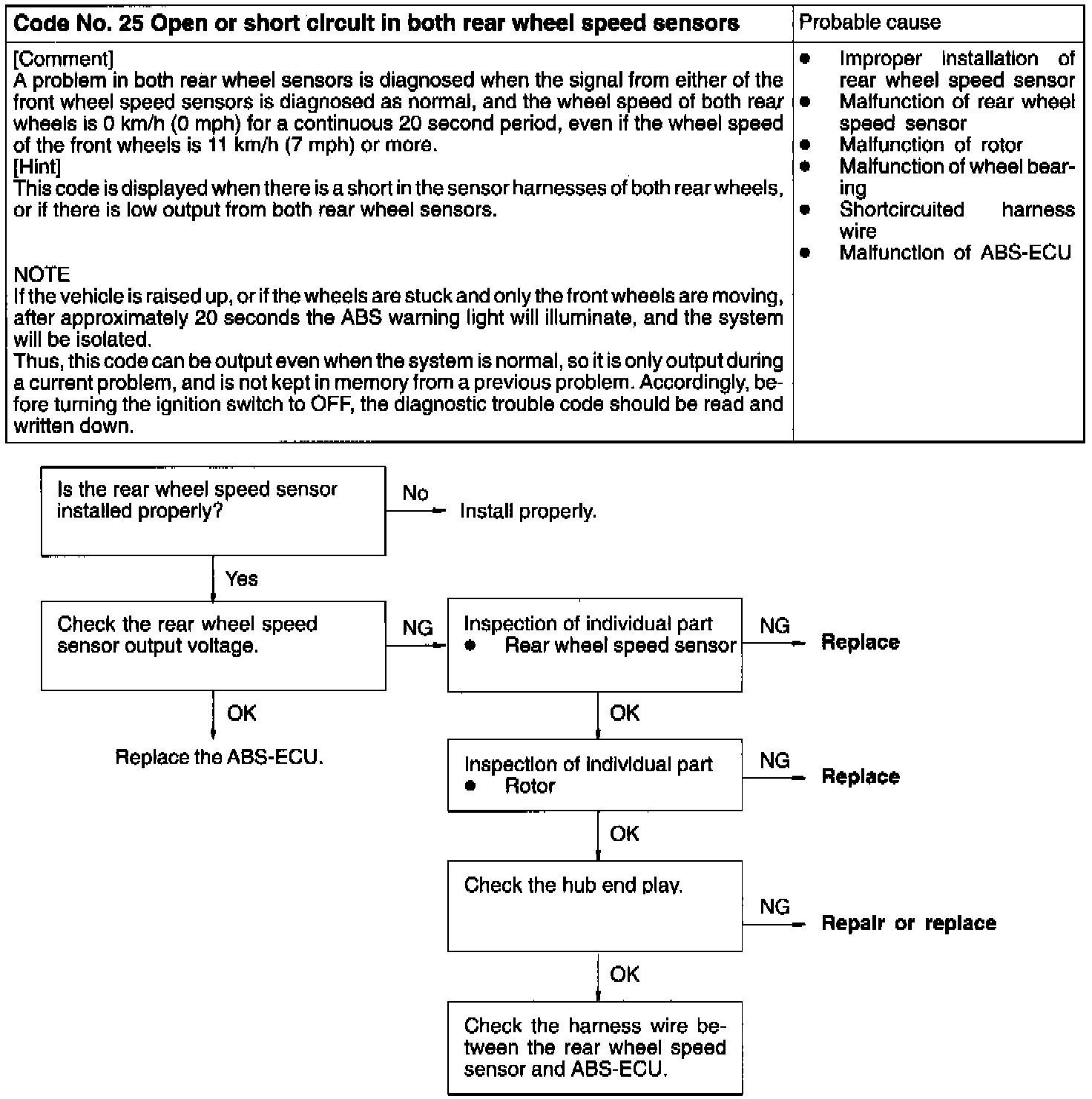

Fig 56 Code 25: Open Or Short Circuit In Both Rear Wheel Speed Sensors:
