Diesel Data
: Automotive Repair
Home
>>
Eagle
>>
1996
>>
Summit L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
1, 2 and 3 Digit Codes
>>
52
>>
Antilock Brakes and Traction Control System
Antilock Brakes and Traction Control System

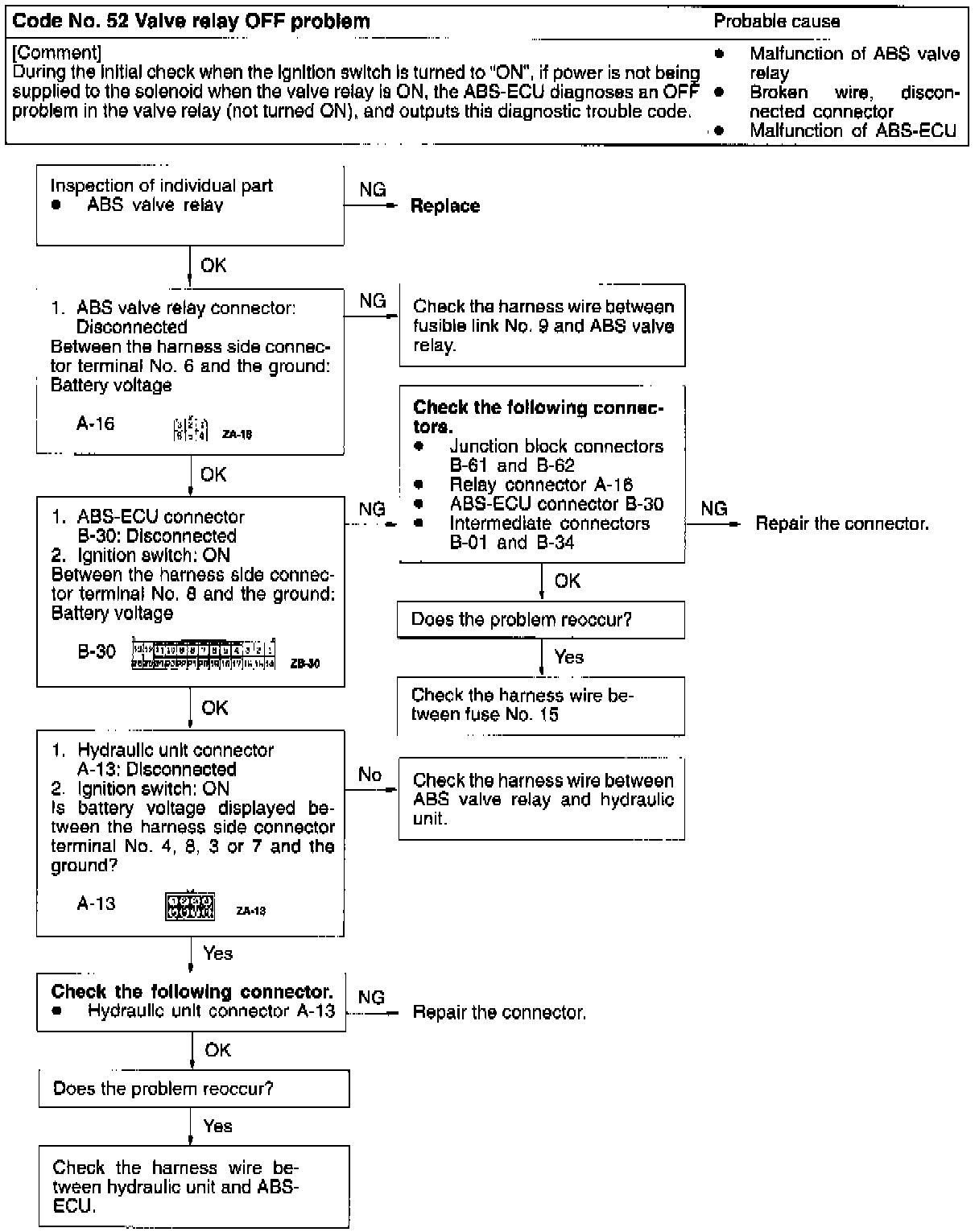

Fig 61 Code 52: Valve Relay Off Problem:
