Eagle
>>
1996
>>
Summit L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Antilock Brakes / Traction Control Systems
>>
Test 1 - ABS Light Does Not Illuminate When Ignition Key Is On
Test 1 - ABS Light Does Not Illuminate When Ignition Key Is On

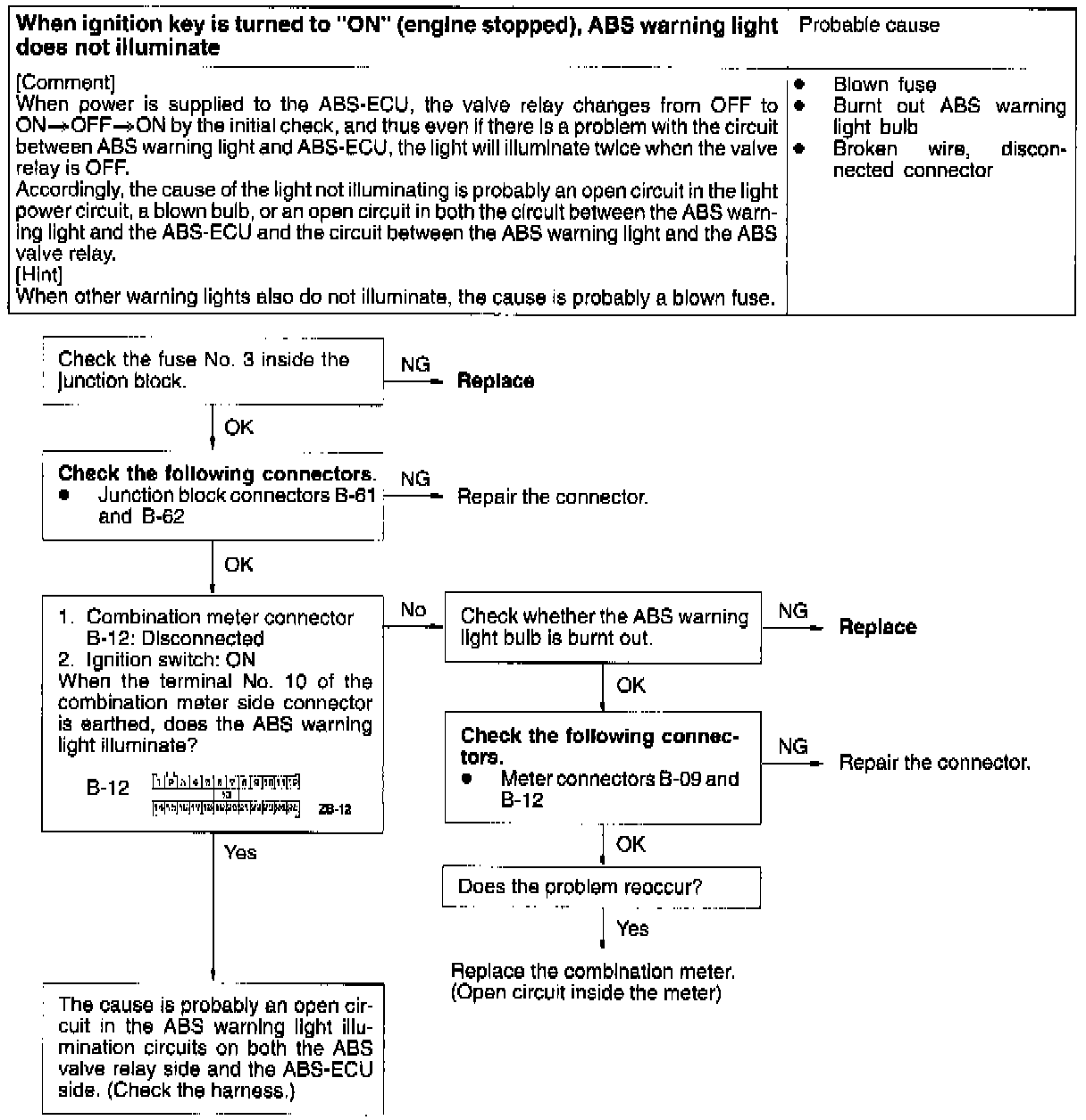

Fig 66 Test 1: ABS Warning Light Does Not Illuminate When Ignition Key Is Turned On.:
