Test 4 - ABS Light On Twice After Ign Turned On Then Stays Off
Test 4 - ABS Light On Twice After Ign Turned On Then Stays Off

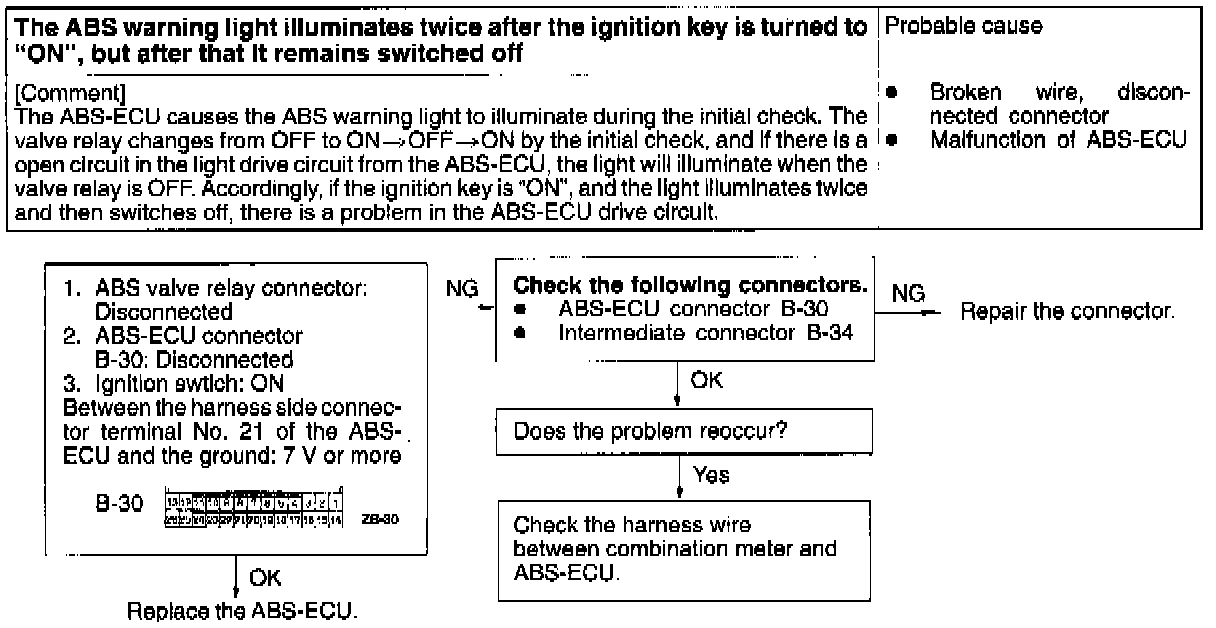

Fig 69 Test 4: ABS Warning Light Illuminates Twice After Ignition Key Is Turned To On But After That It Remains Switched Off:
