Summit L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Antilock Brakes / Traction Control Systems
>>
Test 5 - ABS Warning Lamp Does Not Illuminate, Key in Start
Test 5 - ABS Warning Lamp Does Not Illuminate, Key in Start

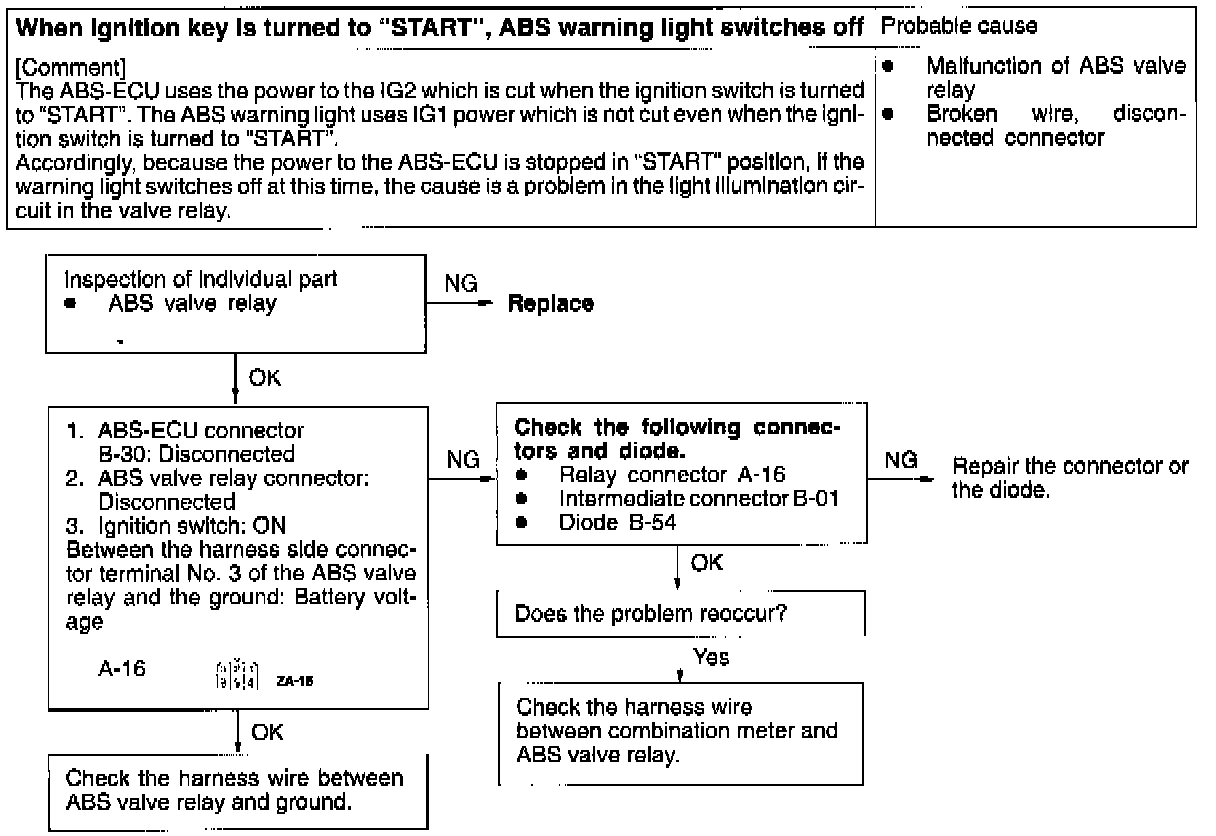

Fig 70 Test 5: When Ignition Key Is Turned To Start ABS Warning Light Switches Off:
