Summit L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Antilock Brakes / Traction Control Systems
>>
Test 6 - Brake Operation Is Abnormal
Test 6 - Brake Operation Is Abnormal

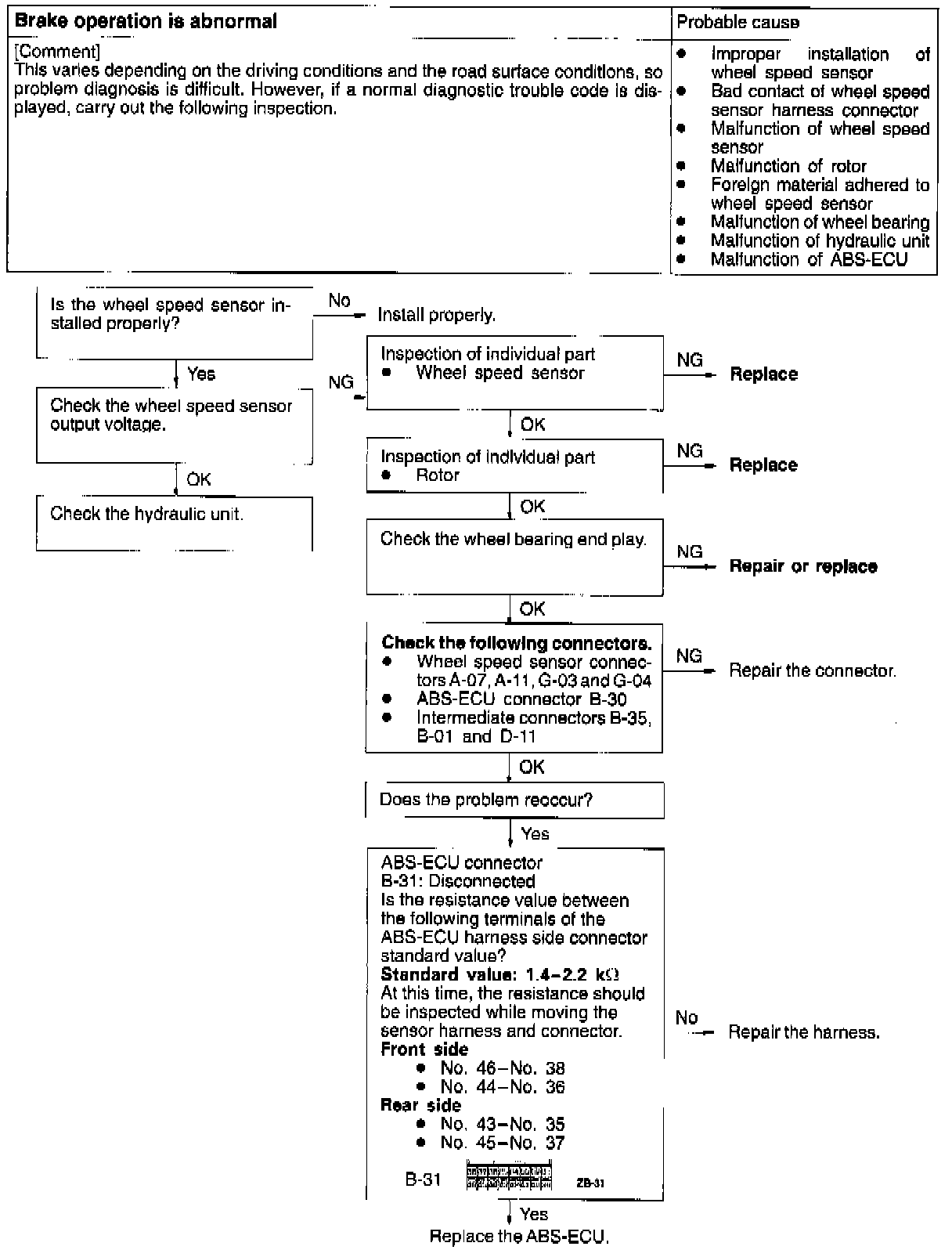

Fig 71 Test 6: Brake Operation Is Abnormal:
