Home >> Eagle >> 1996 >> Summit L4-1468cc 1.5L SOHC >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Antilock Brakes / Traction Control Systems >> Test 7 - ABS Function Does Not Easily Operate

Test 7 - ABS Function Does Not Easily Operate

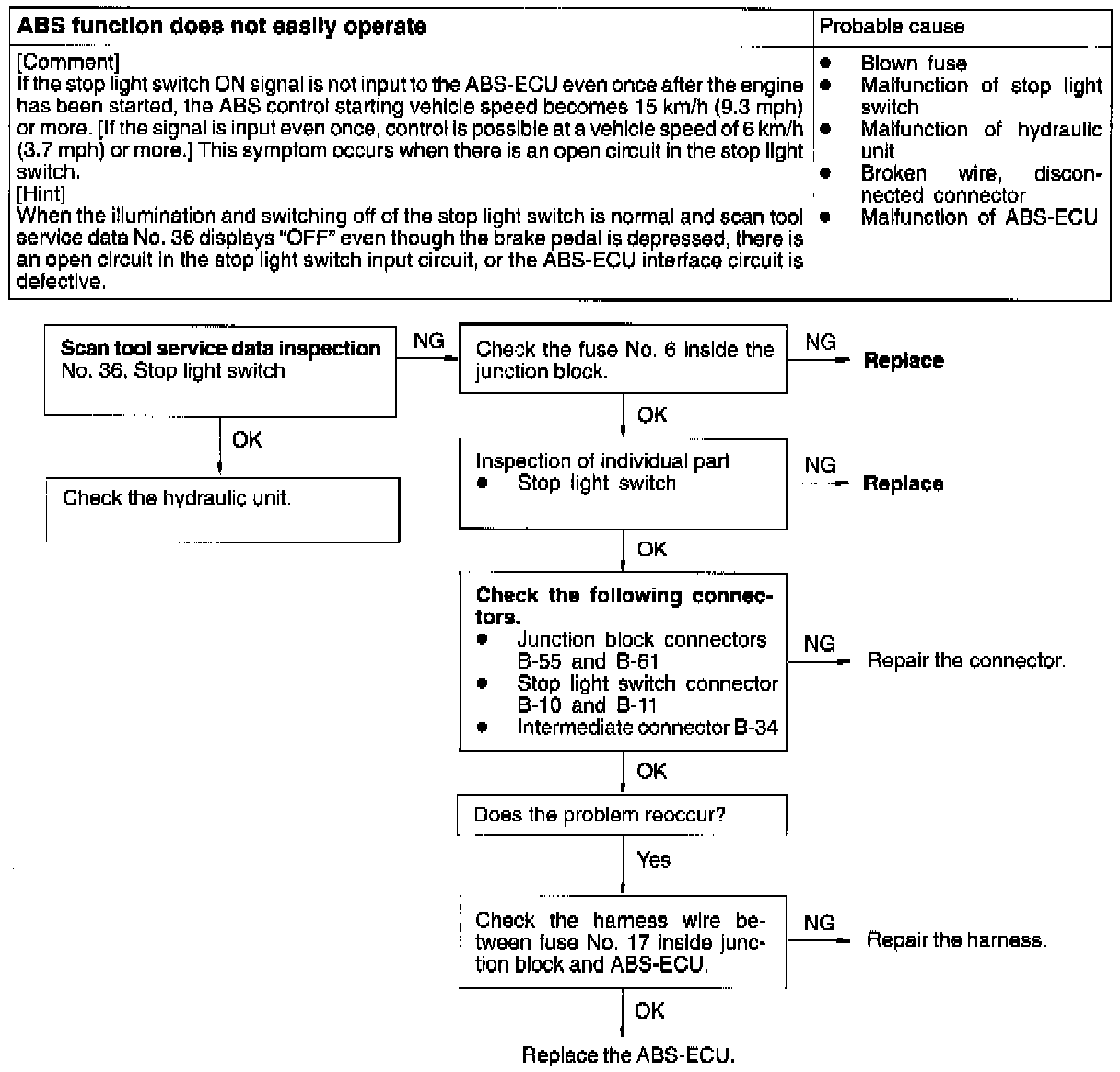

Fig 72 Test 7: ABS Function Does Not Easily Operate:
