Test 9 - No Communication With Scan Tool For ABS Only
Test 9 - No Communication With Scan Tool For ABS Only

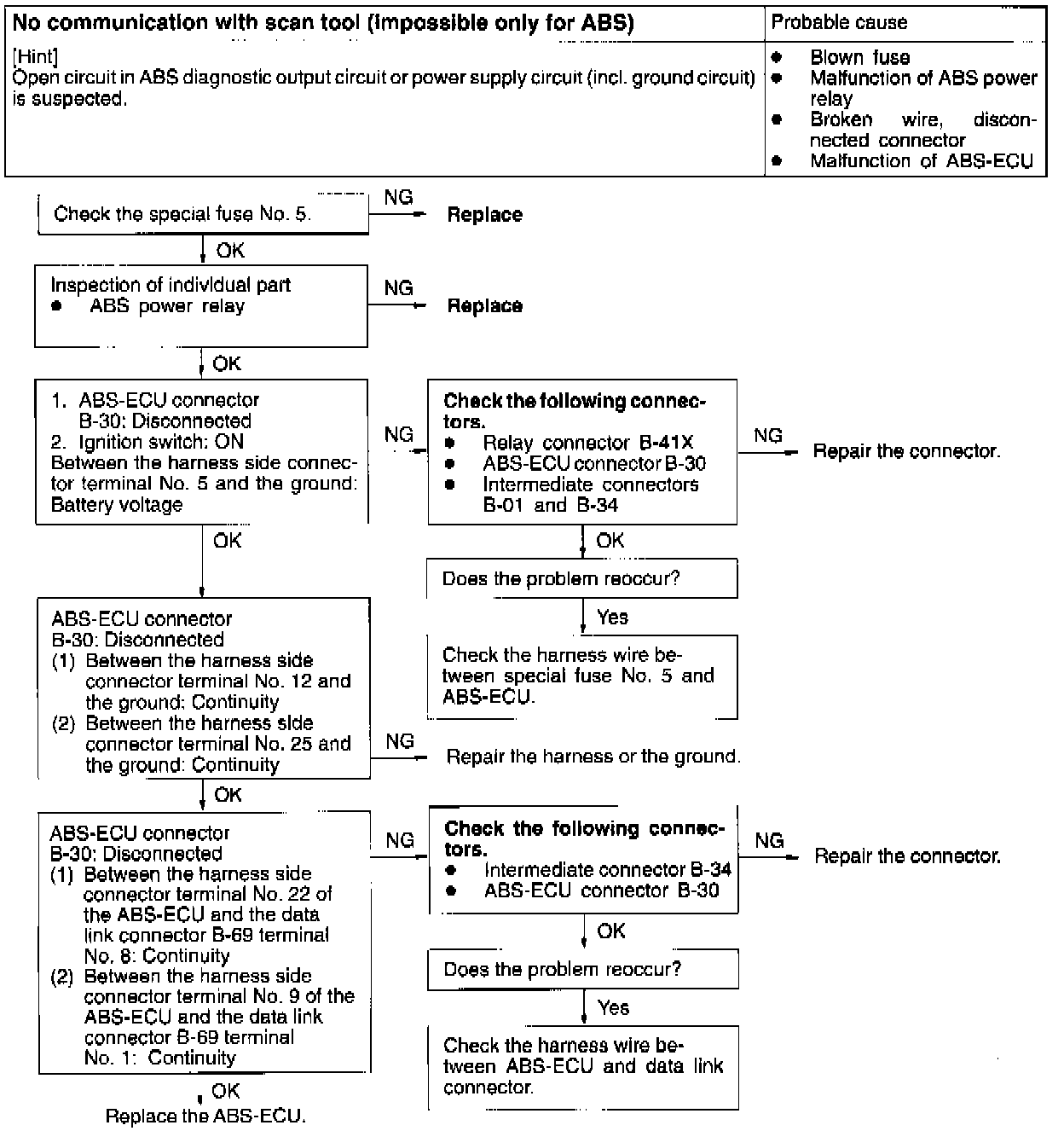

Fig 74 Test 9: No Communication With Scan Tool/Impossible For ABS Only:
