Rear Speaker

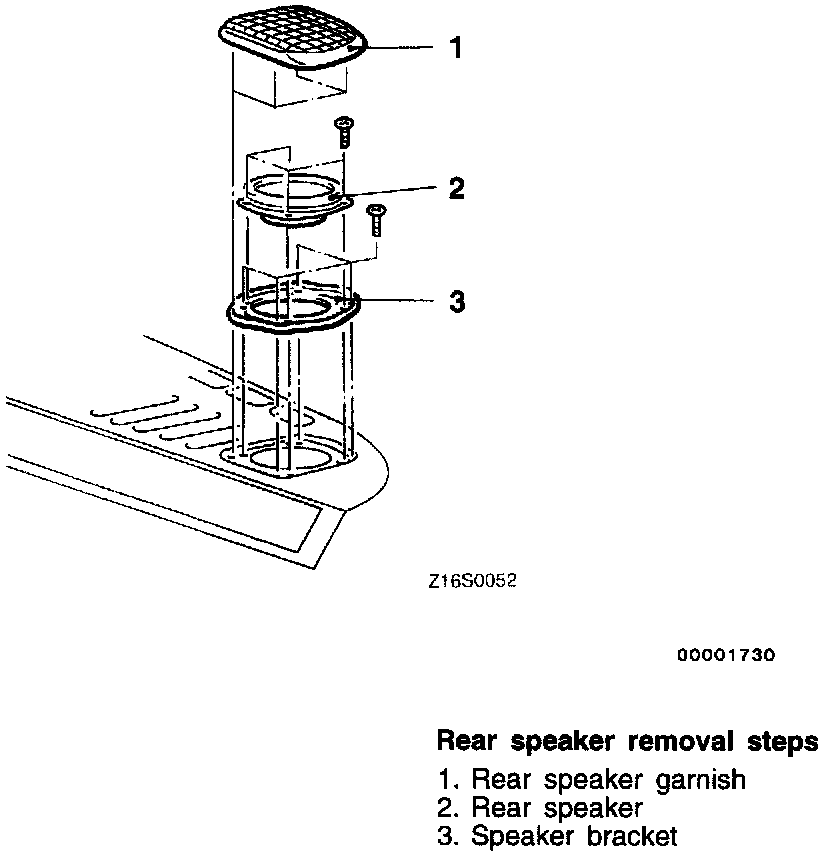

Rear Speaker - Removal And Installation:





REMOVE
1. Rear speaker garnish
2. Rear speaker
3. Speaker bracket

INSTALL
1. Speaker bracket
2. Rear speaker
3. Rear speaker garnish
