Hydraulic Control Assembly - Antilock Brakes: Service and Repair

1. Drain brake fluid from master cylinder fluid reservoir.
2. Remove lefthand fender inner splash shield.

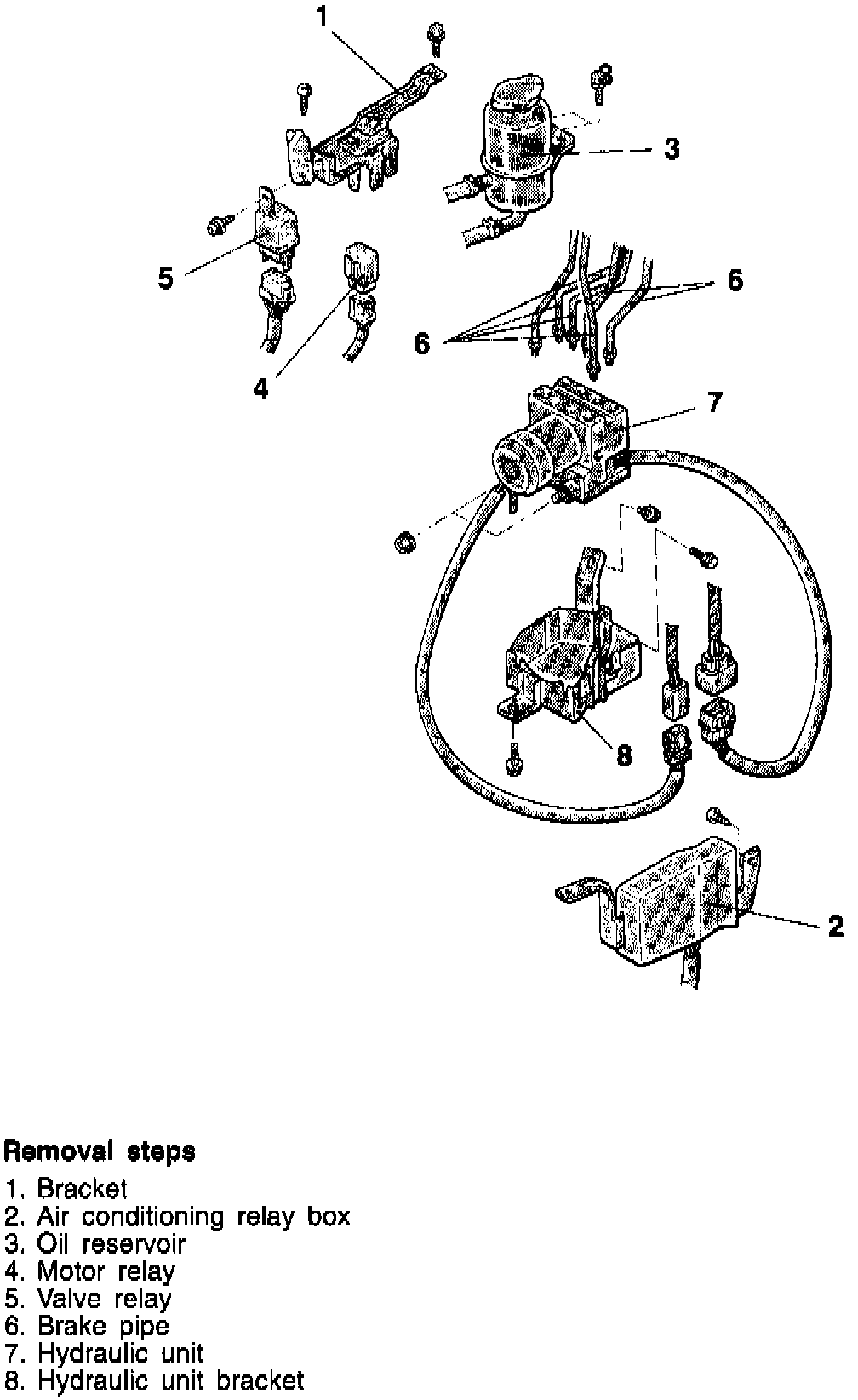

Fig 96 Hydraulic Unit Removal:

3. Remove hydraulic unit as shown.
4. Reverse procedure to install, torque hydraulic brake line fittings to 11 ft. lbs. and bleed brake system as described under Hydraulic System/Service and Repair.
