1996
>>
Summit L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Headlamp
>>
Canada
Canada

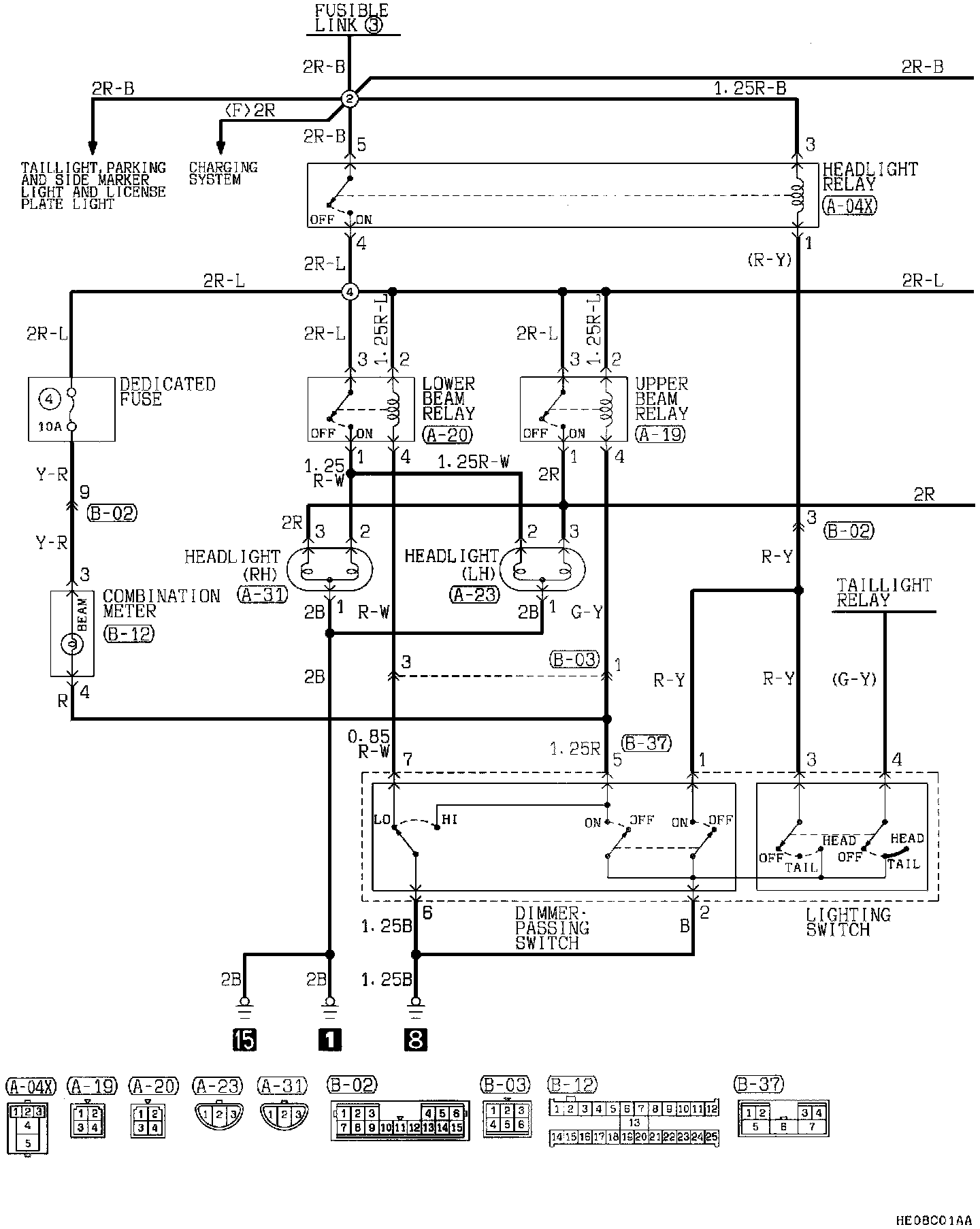

Troubleshooting Diagram (Part 1 Of 2):

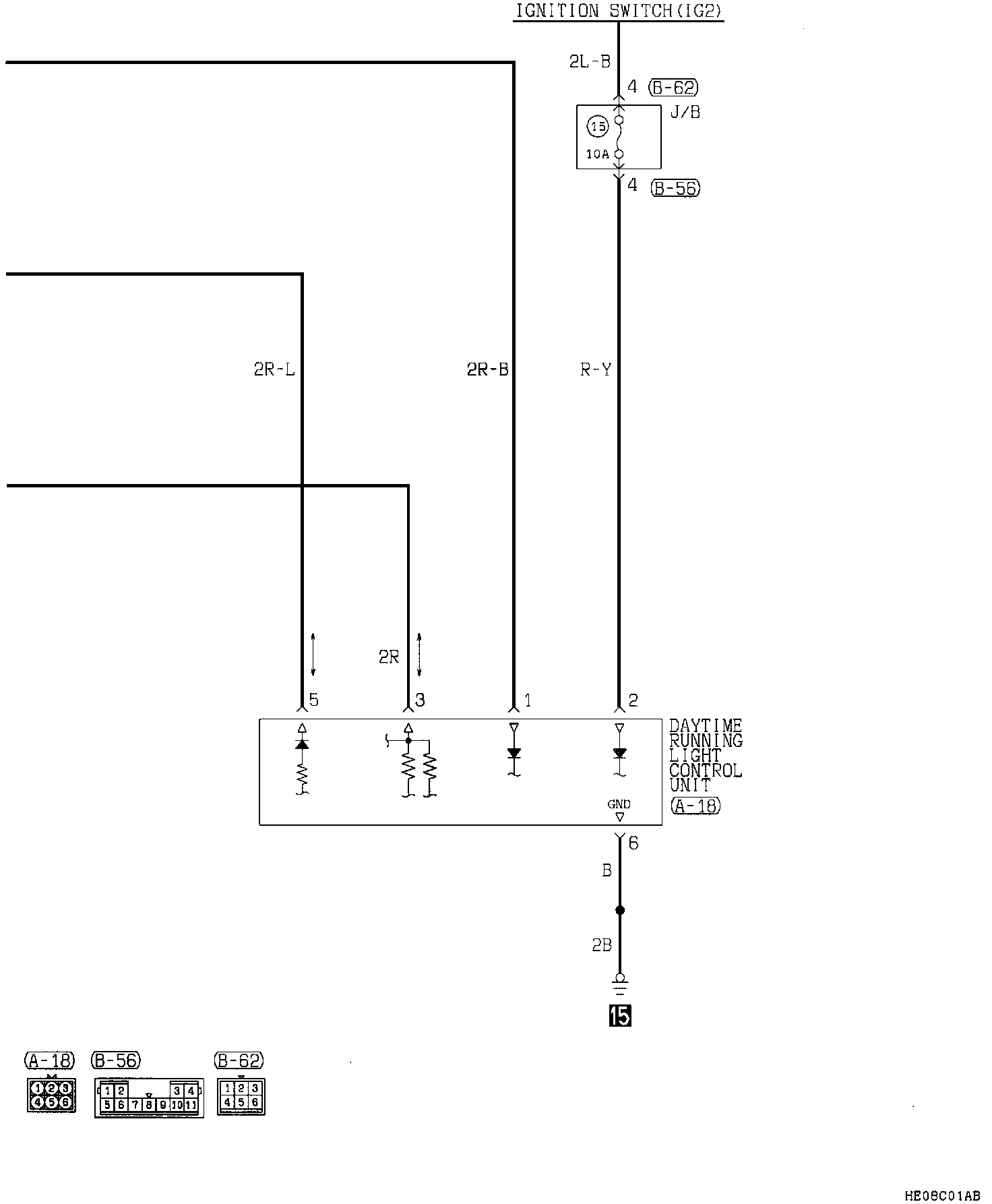

Troubleshooting Diagram (Part 2 Of 2):
