Eagle
>>
1996
>>
Summit L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Locks
Power Locks

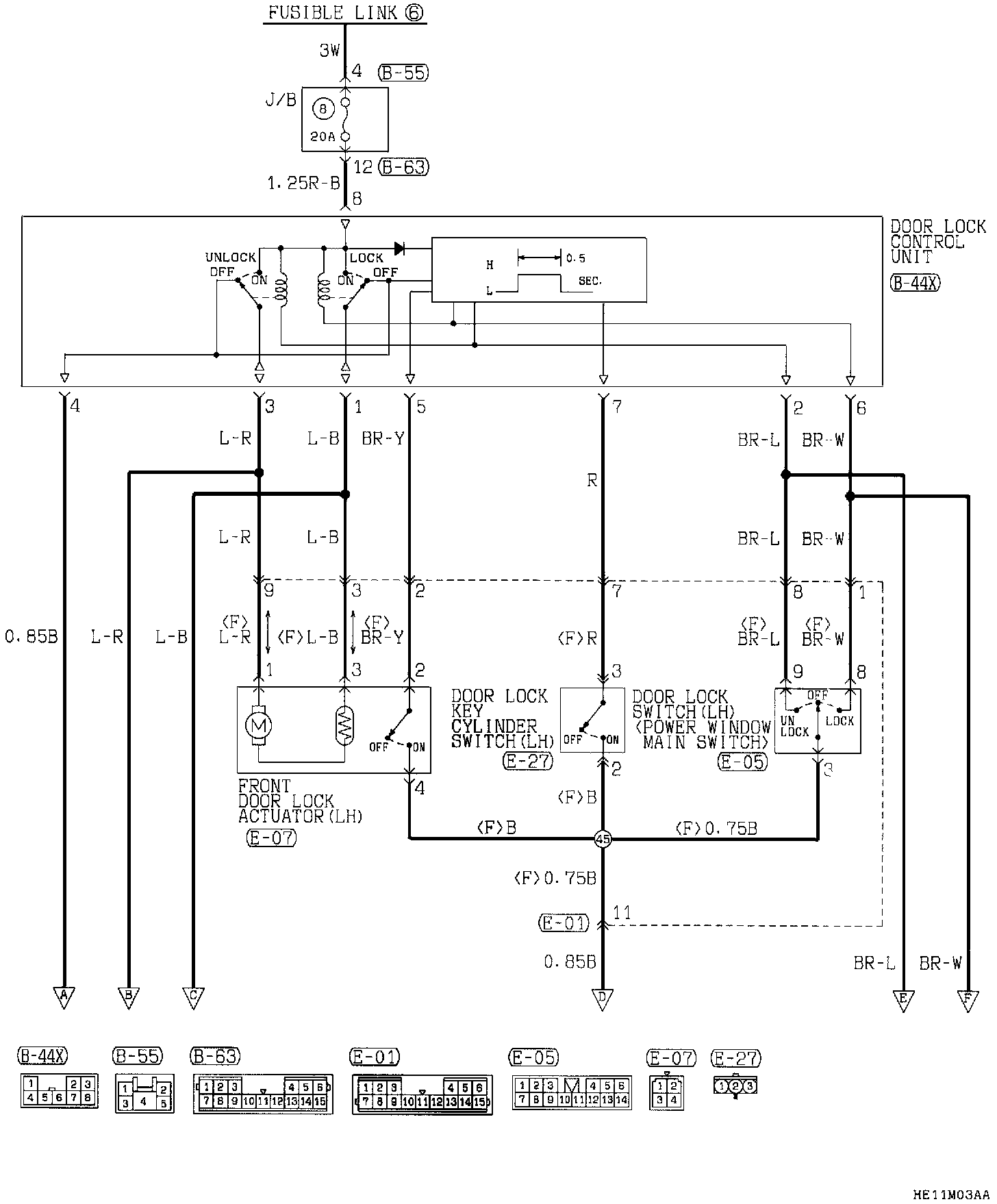

Central Door Locking System (Part 1 Of 2):

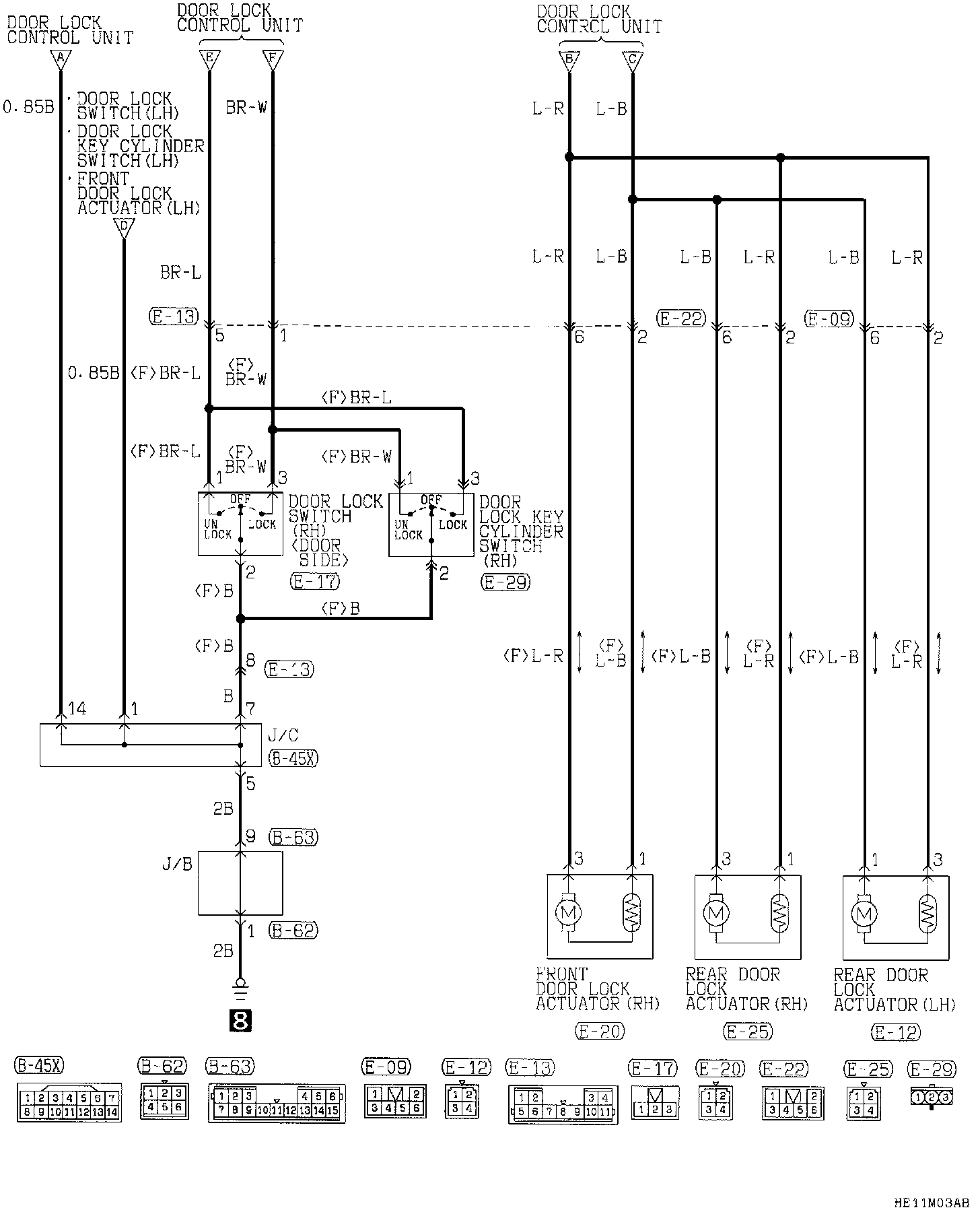

Central Door Locking System (Part 2 Of 2):
