Eagle
>>
1996
>>
Summit L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
>>

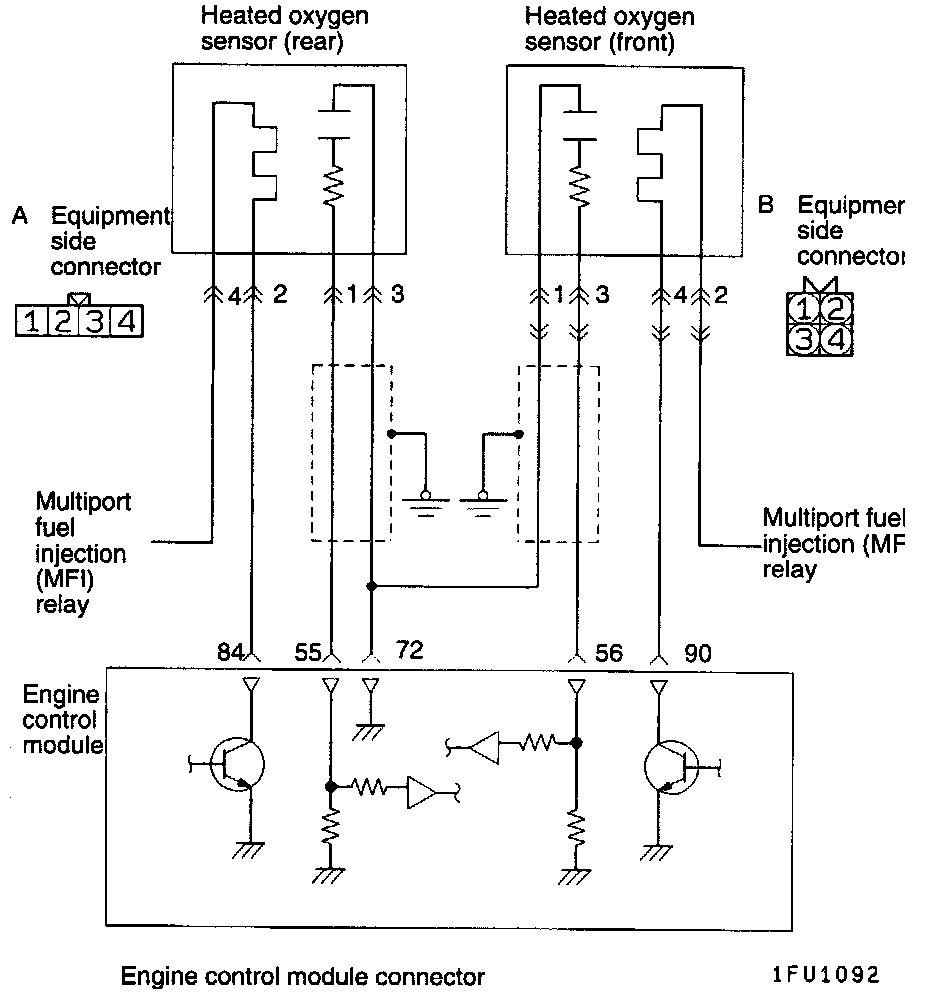

Oxygen Sensor
>>
With Federal or Canada Emissions
With Federal or Canada Emissions
