Eagle
>>
1996
>>
Summit L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
Without Intermittent Wiper System
Without Intermittent Wiper System

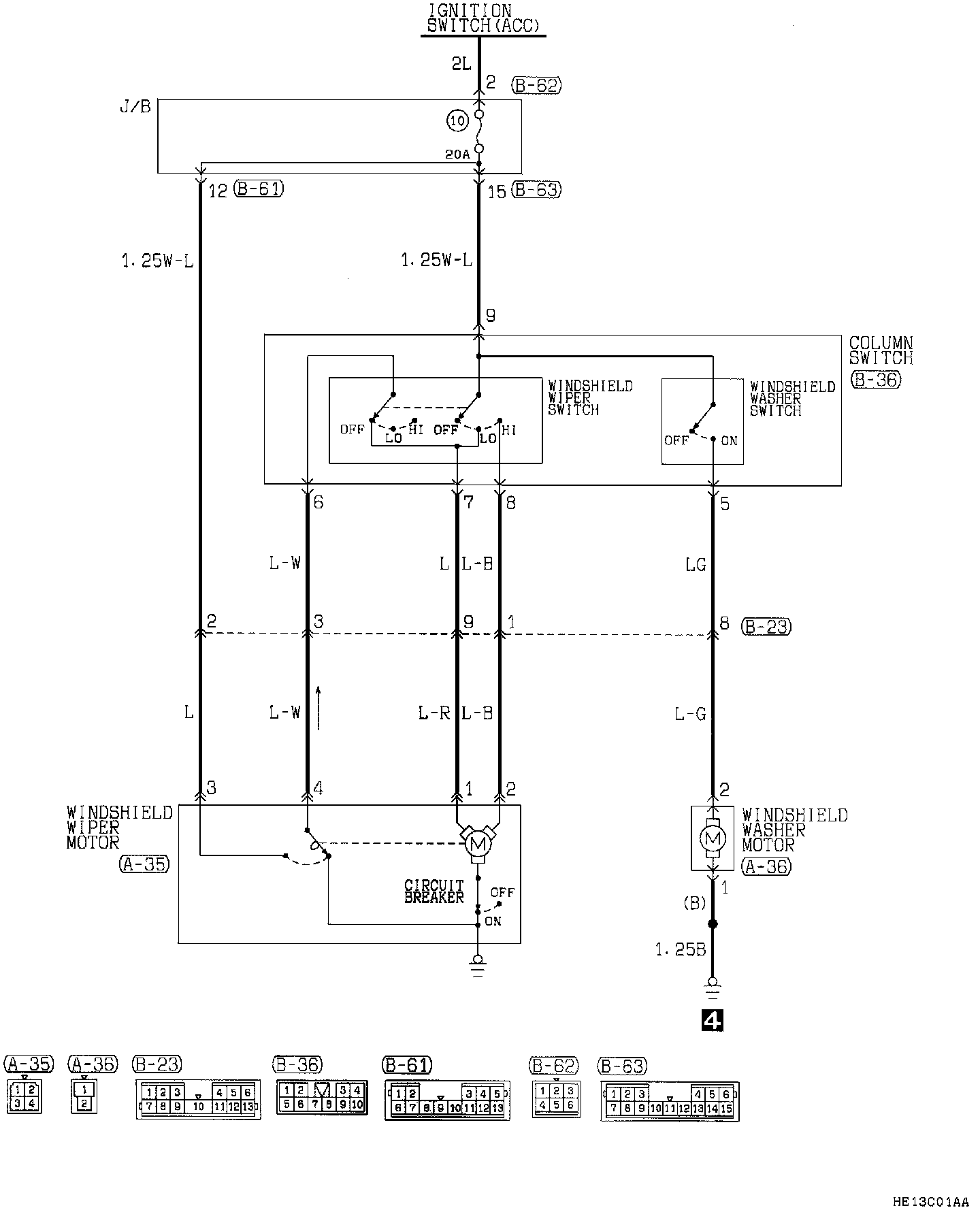

Windshield Wiper And Washer:
