Diesel Data
: Automotive Repair
Home
>>
Eagle
>>
1996
>>
Summit L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Cooling System
>>
Temperature Gauge
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>
Simple Inspection
Simple Inspection

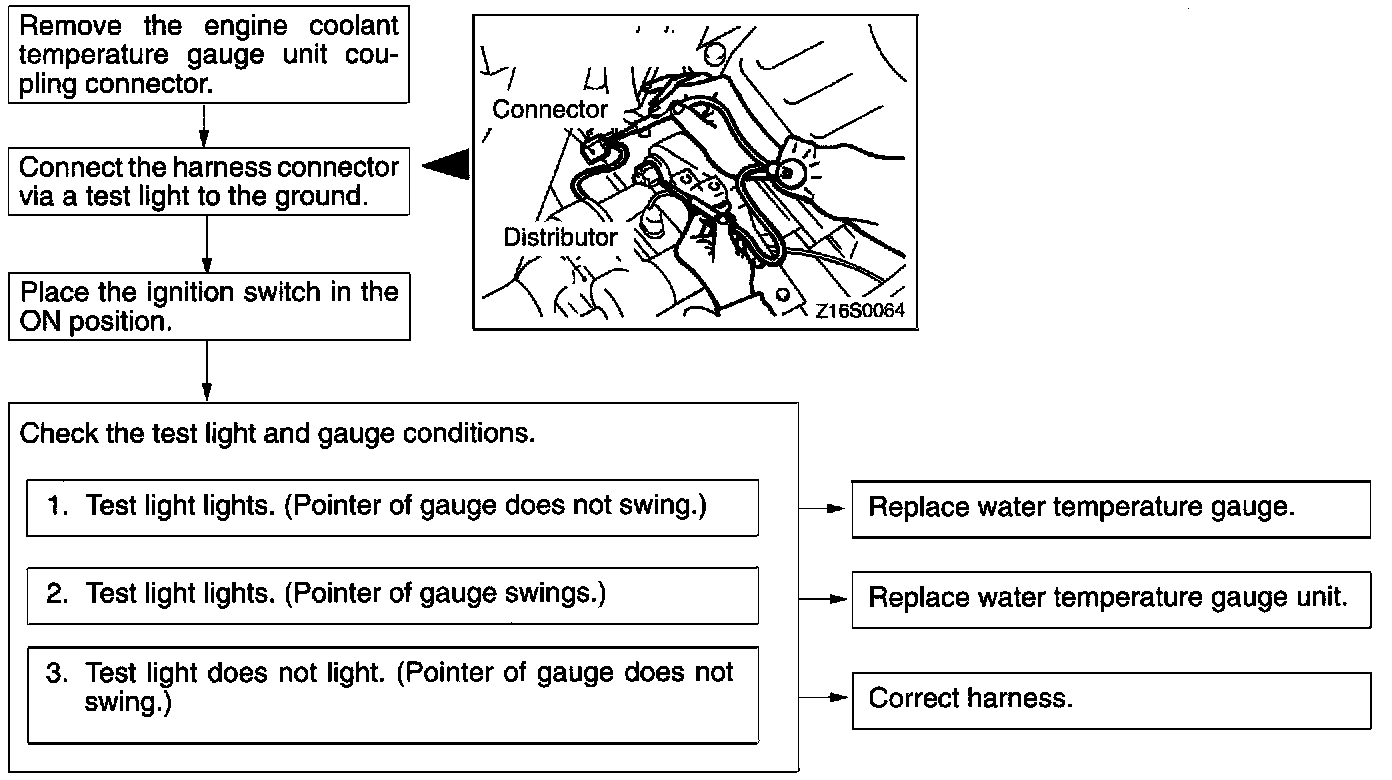

Engine Coolant Temperature Gauge Simple Inspection:

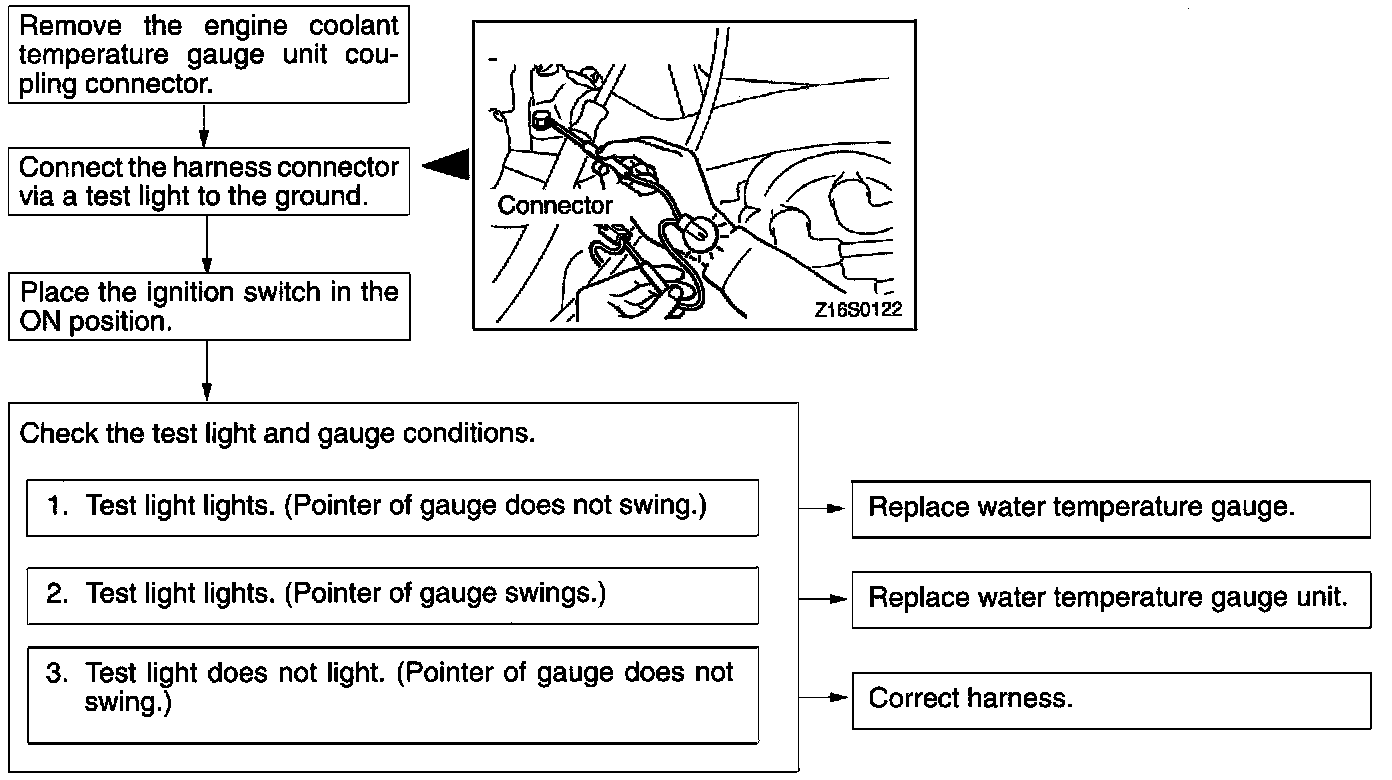

Engine Coolant Temperature Gauge Simple Inspection:
