Rear Crankshaft Main Bearing Seal: Service and Repair

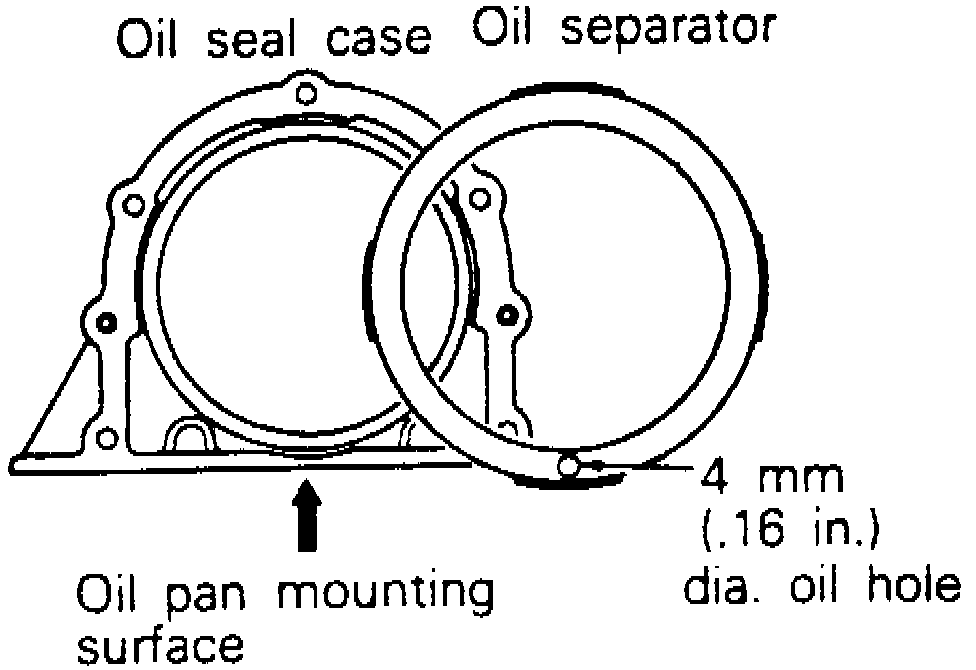

Fig. 13 Exploded View Of Oil Seal Case:

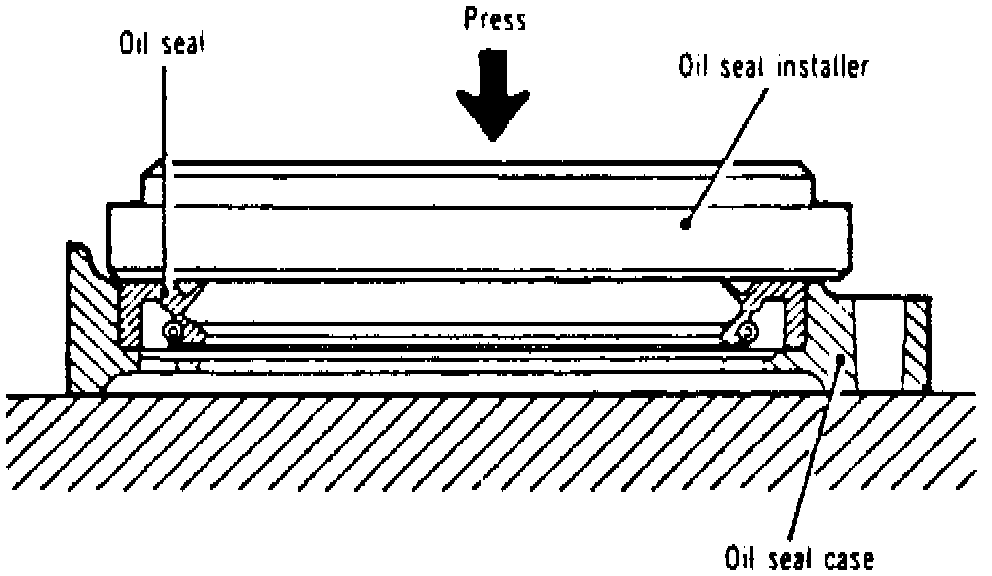

Fig. 14 Rear Seal Installation:

CRANKSHAFT REAR SEAL REPLACE
1. Remove transmission, clutch assembly and flywheel or flex plate, as equipped.
2. Remove rear oil seal case and separate oil seal, case and separator, Fig. 13.
3. Drive in oil seal from inside of case using suitable tool, Fig. 14. Ensure oil seal plate fits properly in inner contact surface of seal case.
4. Install separator with oil hole facing bottom of case.
5. Apply engine oil to oil seal lips.
6. Install oil seal case in cylinder block.
