Blower Motor: Service and Repair

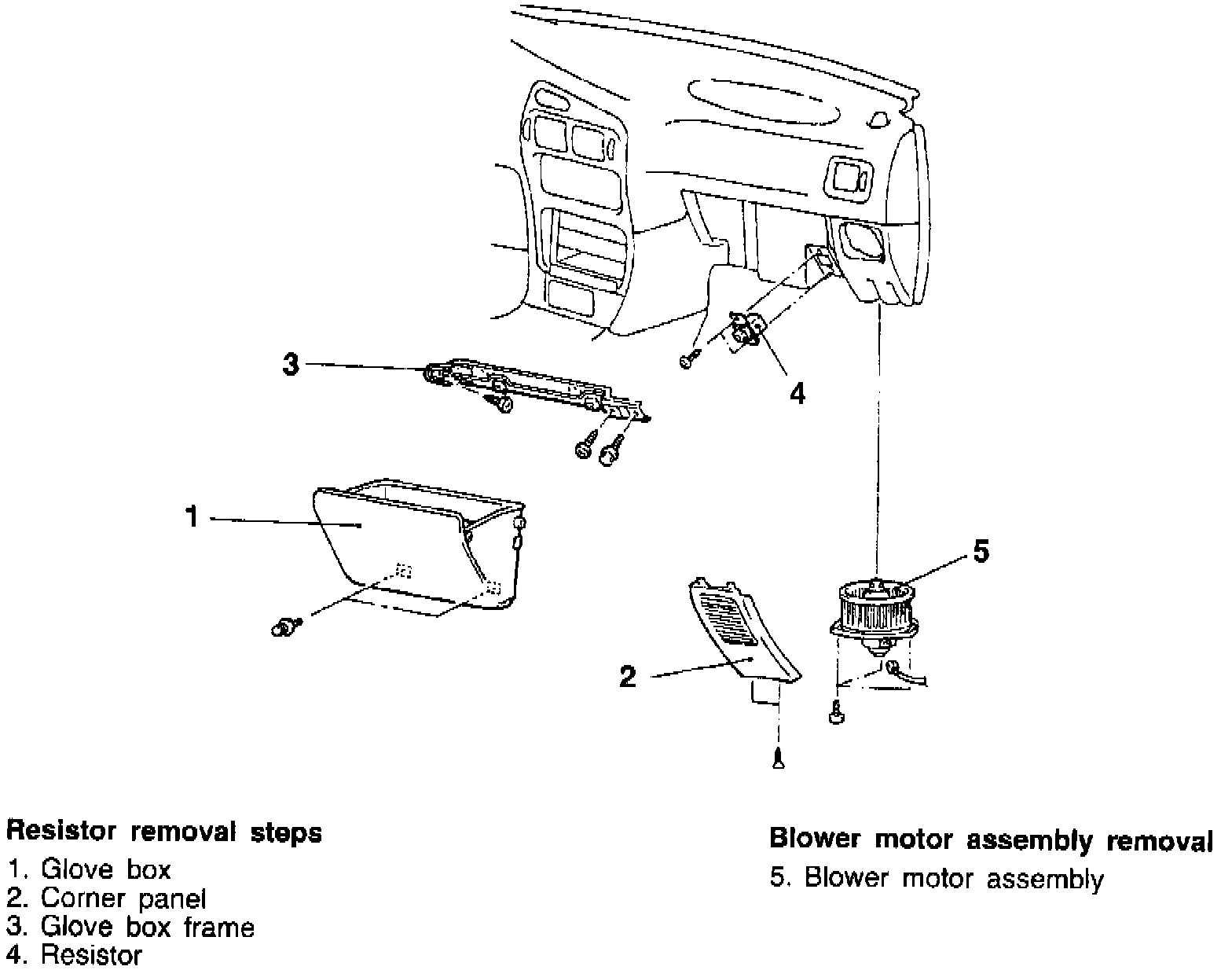

Fig. 6 Blower Motor Replacement:




Replace blower motor in numbered sequence shown.
