Cigarette Lighter: Service and Repair

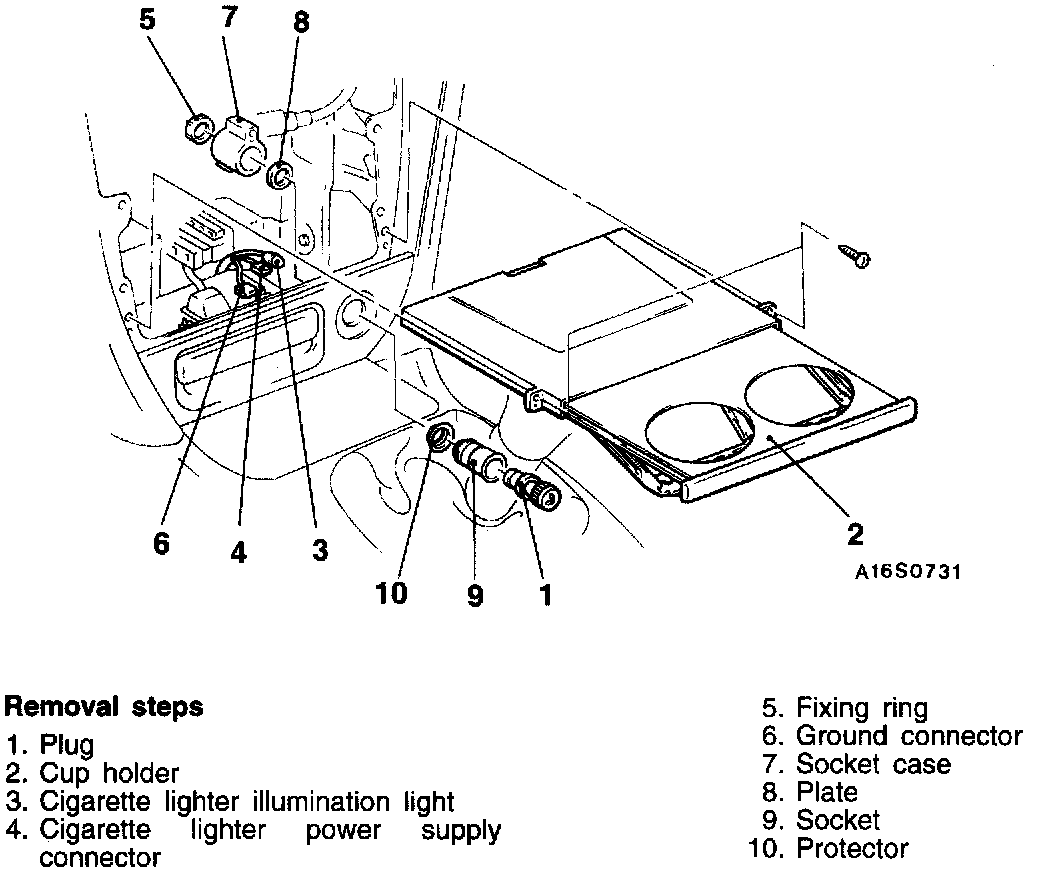

Cigarette Lighter - Removal And Installation:

REMOVE
1. Plug
2. Cup holder
3. Cigarette lighter illumination light
4. Cigarette lighter power supply connector
5. Fixing ring
6. Ground connector
7. Socket case
8. Plate
9. Socket
10. Protector

INSTALL
1. Protector
2. Socket
3. Plate
4. Socket case
5. Ground connector
6. Fixing ring
7. Cigarette lighter power supply connector
8. Cigarette lighter illumination light
9. Cup holder
10. Plug
