Installation Service Points

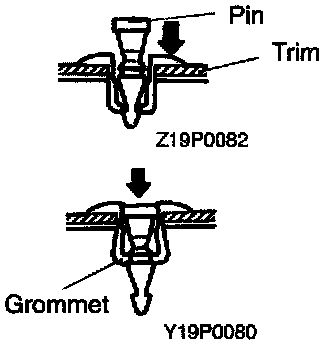

Clip RemovalClip Installation:
1. With the pin pulled out, insert the clip into the hole in the trim.
2. Push the pin inward until the pin's head is flush with the grommet.
3. Check whether the trim is secure.
1. With the pin pulled out, insert the clip into the hole in the trim.
2. Push the pin inward until the pin's head is flush with the grommet.
3. Check whether the trim is secure.
