Vehicles With Rear Shelf
Vehicles With Rear Shelf

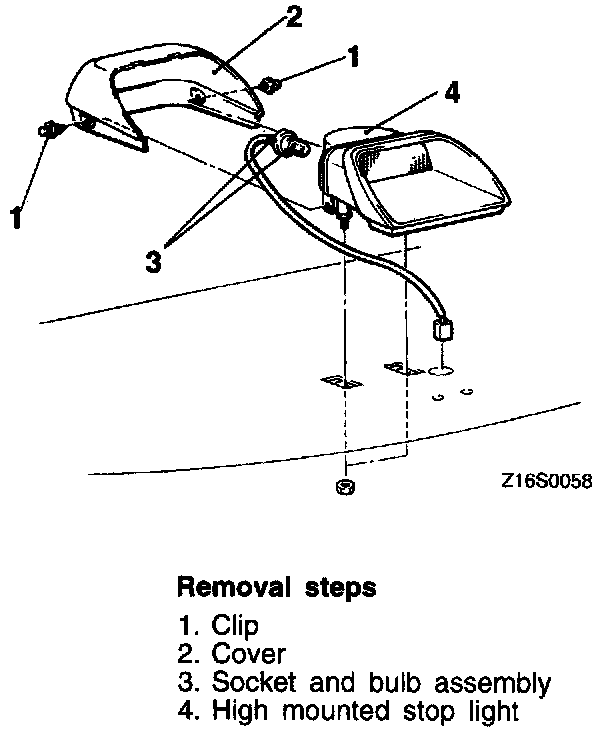

High Mounted Stop Light - Removal And Installation:
REMOVE
1.
Clip
2.
Cover
3.
Socket and bulb assembly
4.
High mounted stop light unit
INSTALL
1.
High mounted stop light unit
2.
Socket and bulb assembly
3.
Cover
4.
Clip
