Hazard Warning Switch: Service and Repair

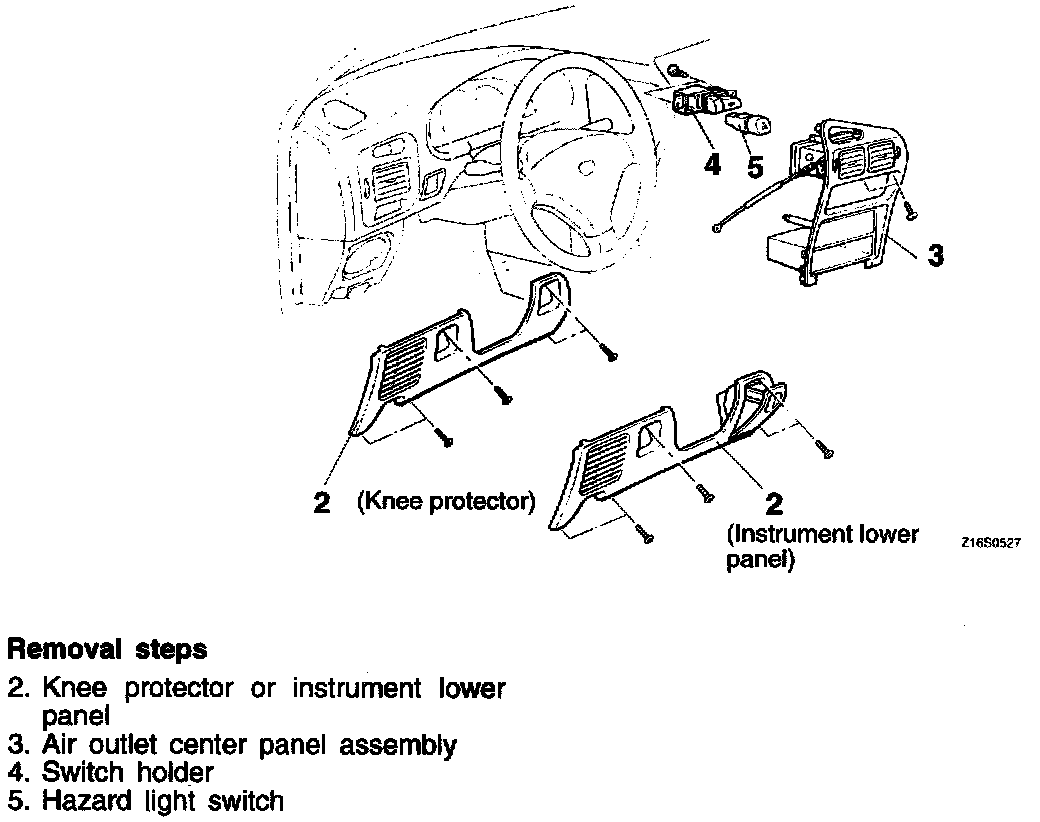

Hazard Light Switch - Removal And Installation:





REMOVE
2. Knee protector or instrument lower panel
3. Air outlet center panel assembly
4. Switch holder
5. Hazard light switch

INSTALL
2. Hazard light switch
3. Switch holder
4. Air outlet center panel assembly
5. Knee protector or instrument lower panel
