Turn Signals: Testing and Inspection
Column Switch InspectionColumn Switch Continuity Check:

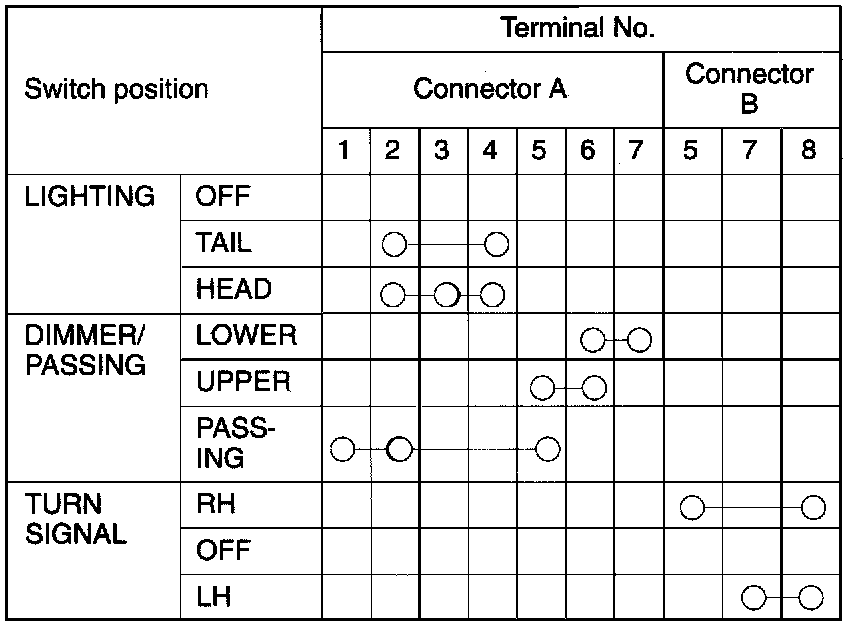

Column Switch Continuity Check Table:
Operate the switch and check for continuity between the terminals.
Operate the switch and check for continuity between the terminals.
