Evaporative Emission Control Canister: Service and Repair

PRE-REMOVAL AND POST-REMOVAL OPERATION
^ Air Cleaner Assembly

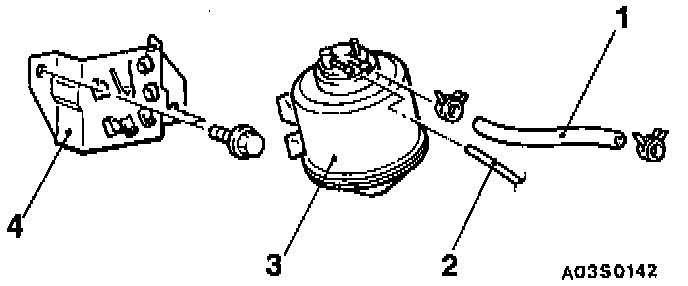

REMOVAL STEPS
1. Vapor hose
2. Purge hose
3. Evaporative emission canister
4. Canister bracket
