Initial Inspection and Diagnostic Overview

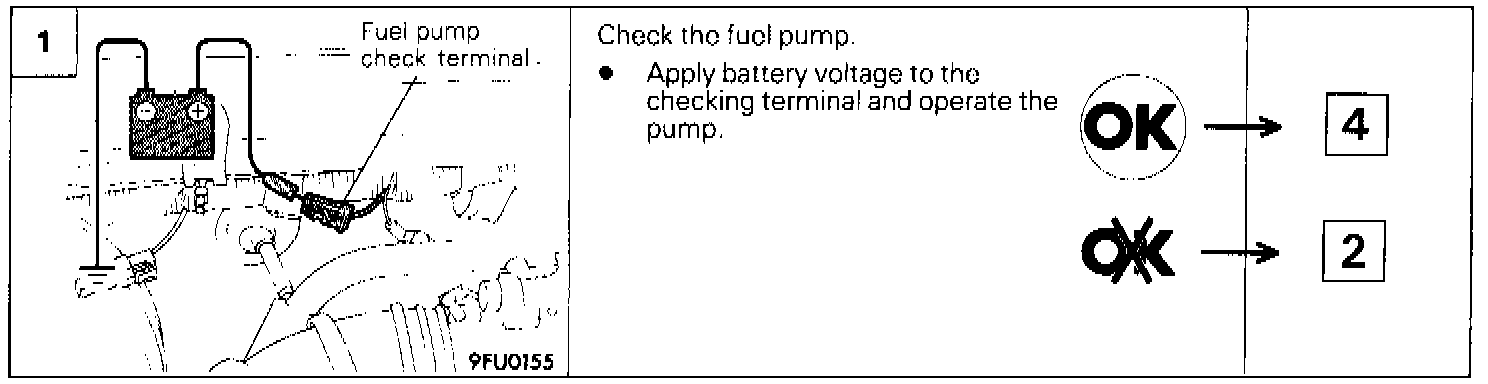

Fuel Pump Harness Inspection:

Step 1

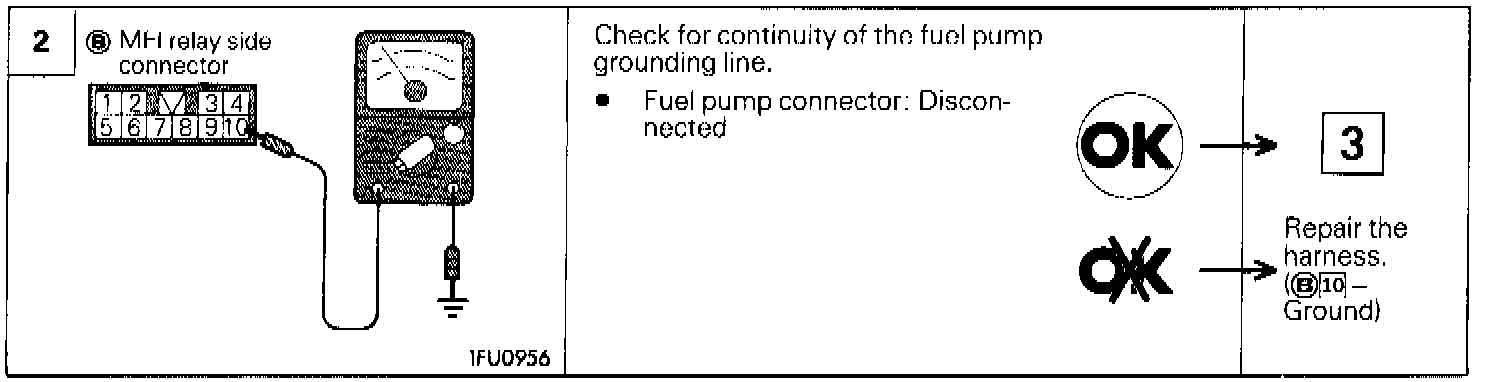

Fuel Pump Harness Inspection:

Step 2

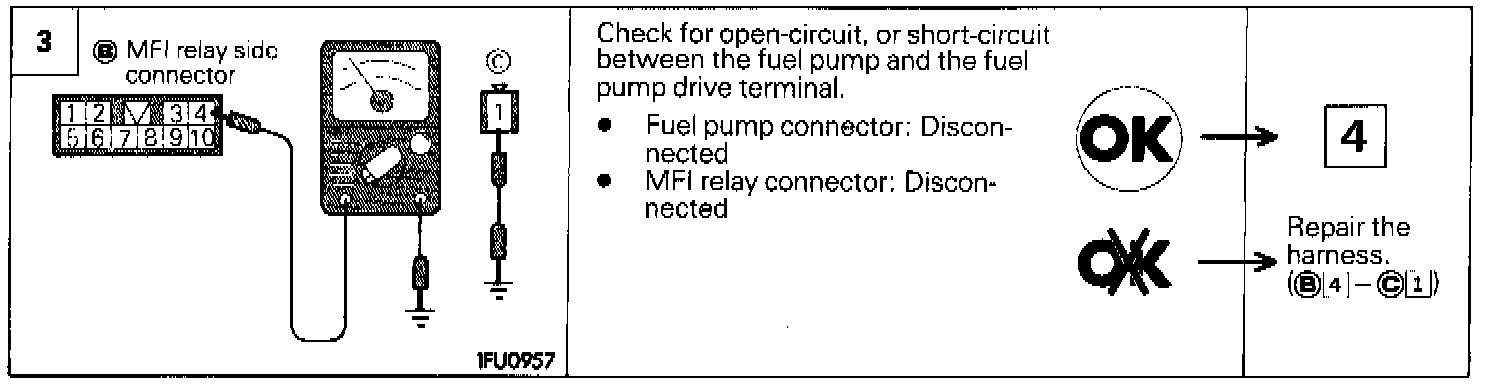

Fuel Pump Harness Inspection:

Step 3

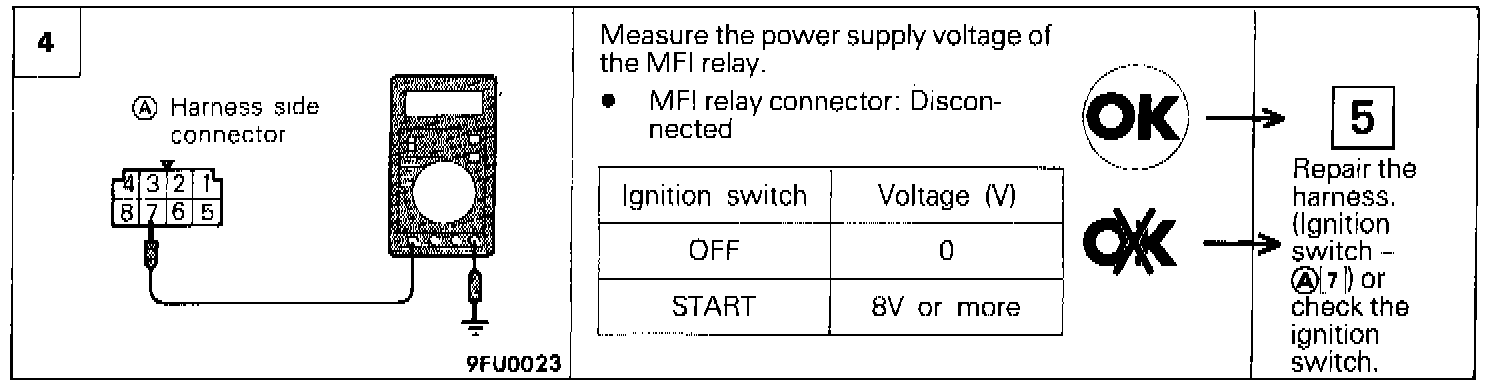

Fuel Pump Harness Inspection:

Step 4

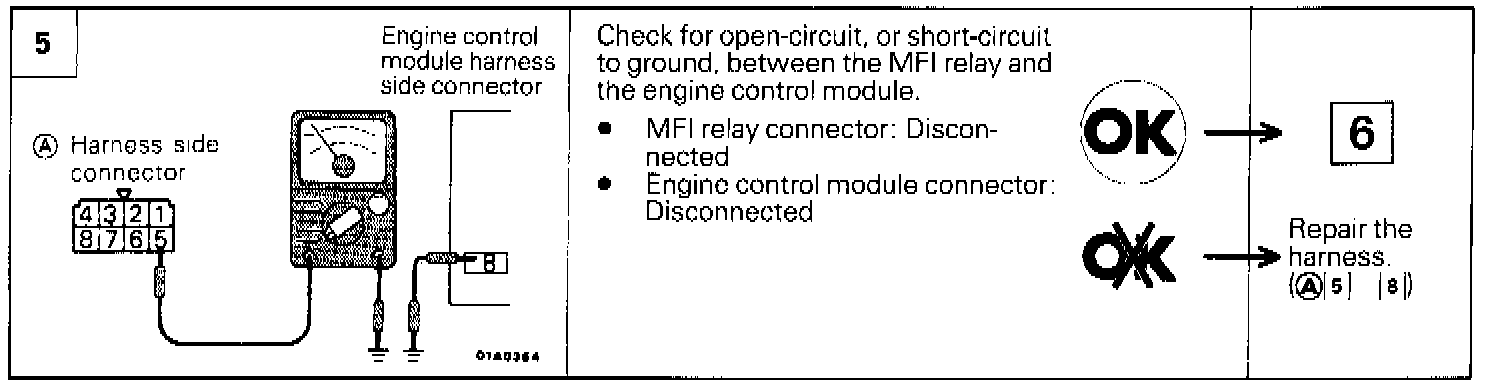

Fuel Pump Harness Inspection:

Step 5

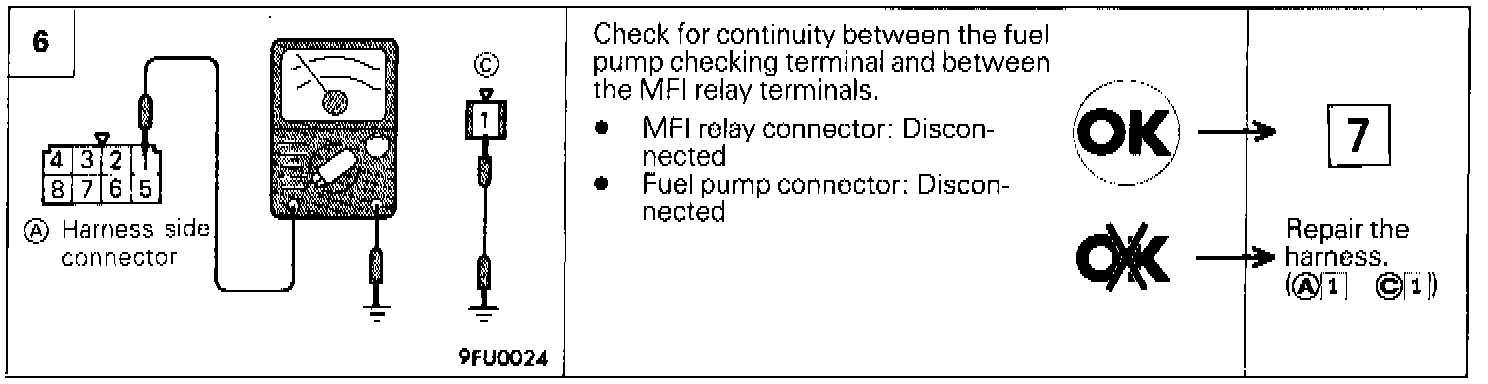

Fuel Pump Harness Inspection:

Step 6

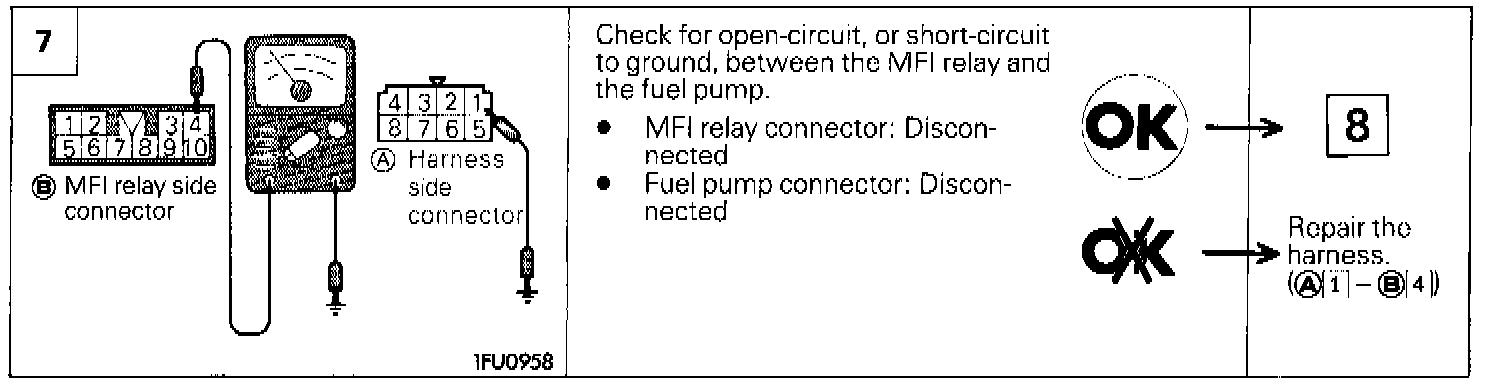

Fuel Pump Harness Inspection:

Step 7

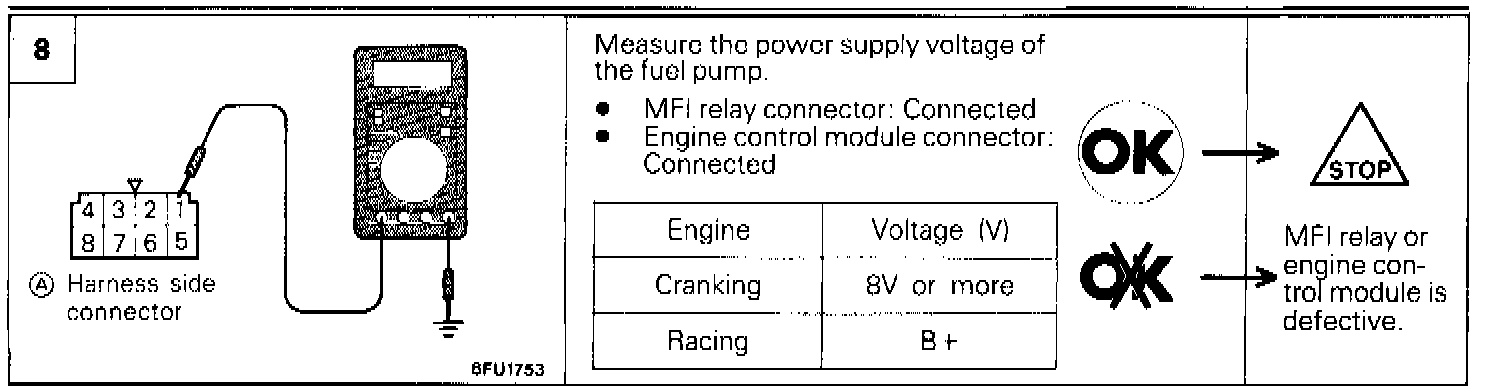

Fuel Pump Harness Inspection:

Step 8
