Release Switch Testing

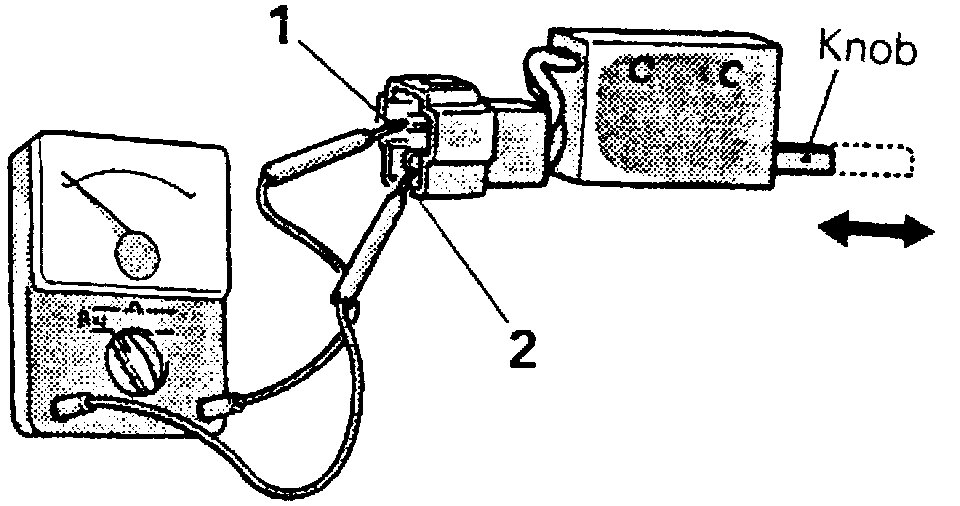

Fig. 41 Release Switch Inspection:

1. Remove the release switch.
2. Using a suitable ohmmeter, check for continuity between switch terminals.
3. Continuity should be present with switch knob released and no continuity should be present with the knob pushed in.
