Power Steering Pump Removal and Installation

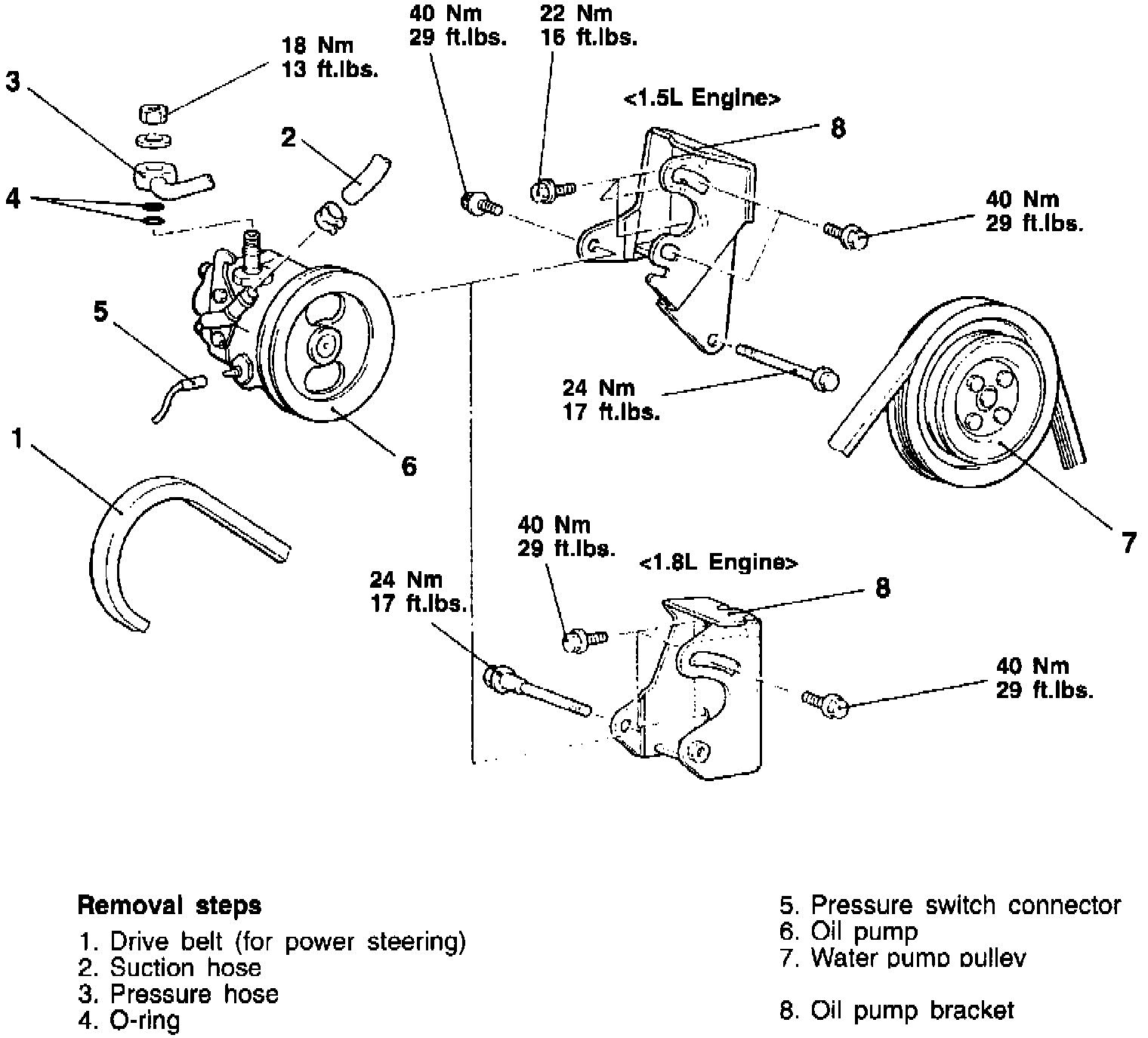

Fig. 19 Power Steering Pump Removal:

POWER STEERING PUMP REPLACE
1. Drain power steering fluid.
2. Remove power steering pump as shown.
3. Reverse procedure to install.
