Rack and Pinion

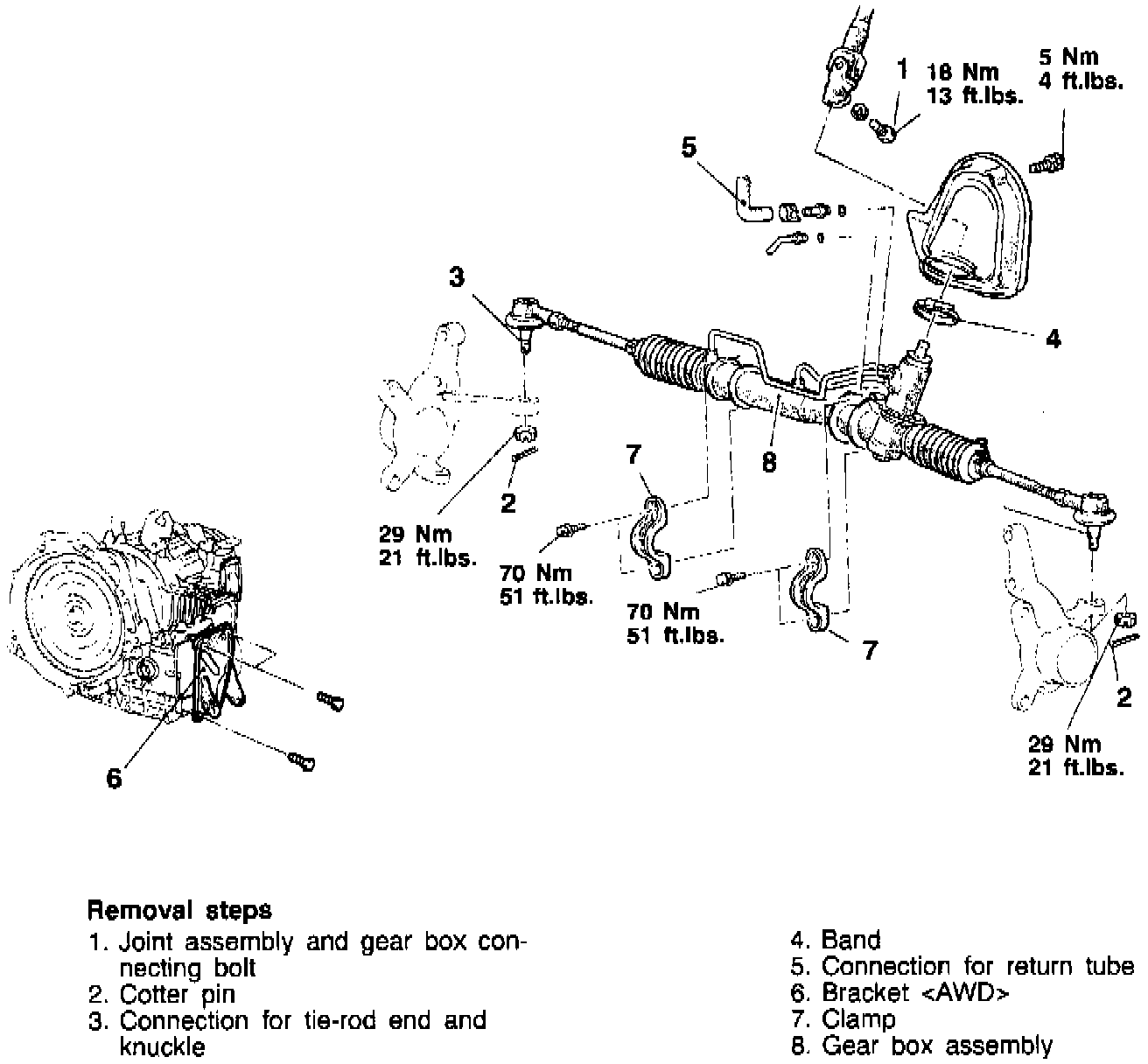

Fig. 17 Power Steering Gearbox Removal:

POWER STEERING GEAR REPLACE
1. Remove steering gearbox in sequence as shown, noting following:

a. Remove tie rod ends using tool No. MB990635, or equivalent. Tie cord of tool to nearby part and loosen (but do not remove) nut.

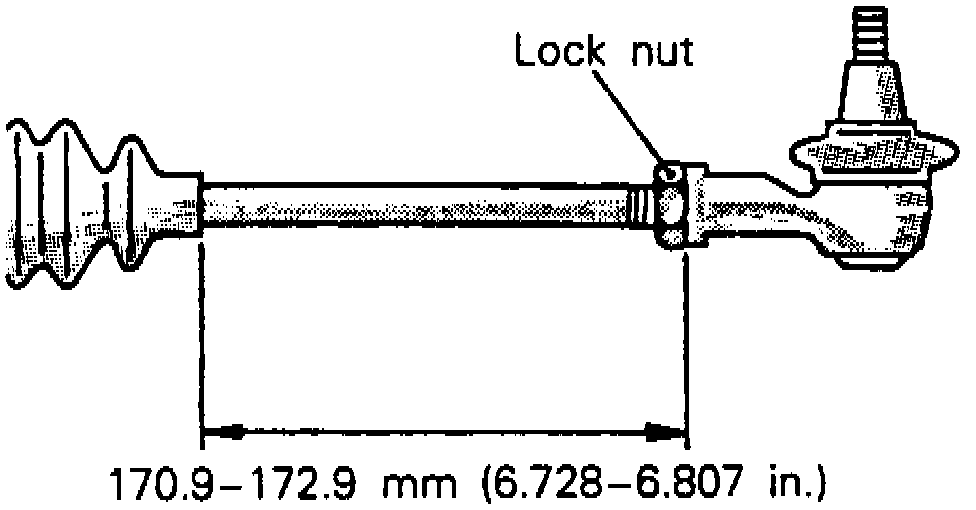

2. Reverse procedure to install, adjusting tie rod ends as shown.
