Disassembly/Assembly

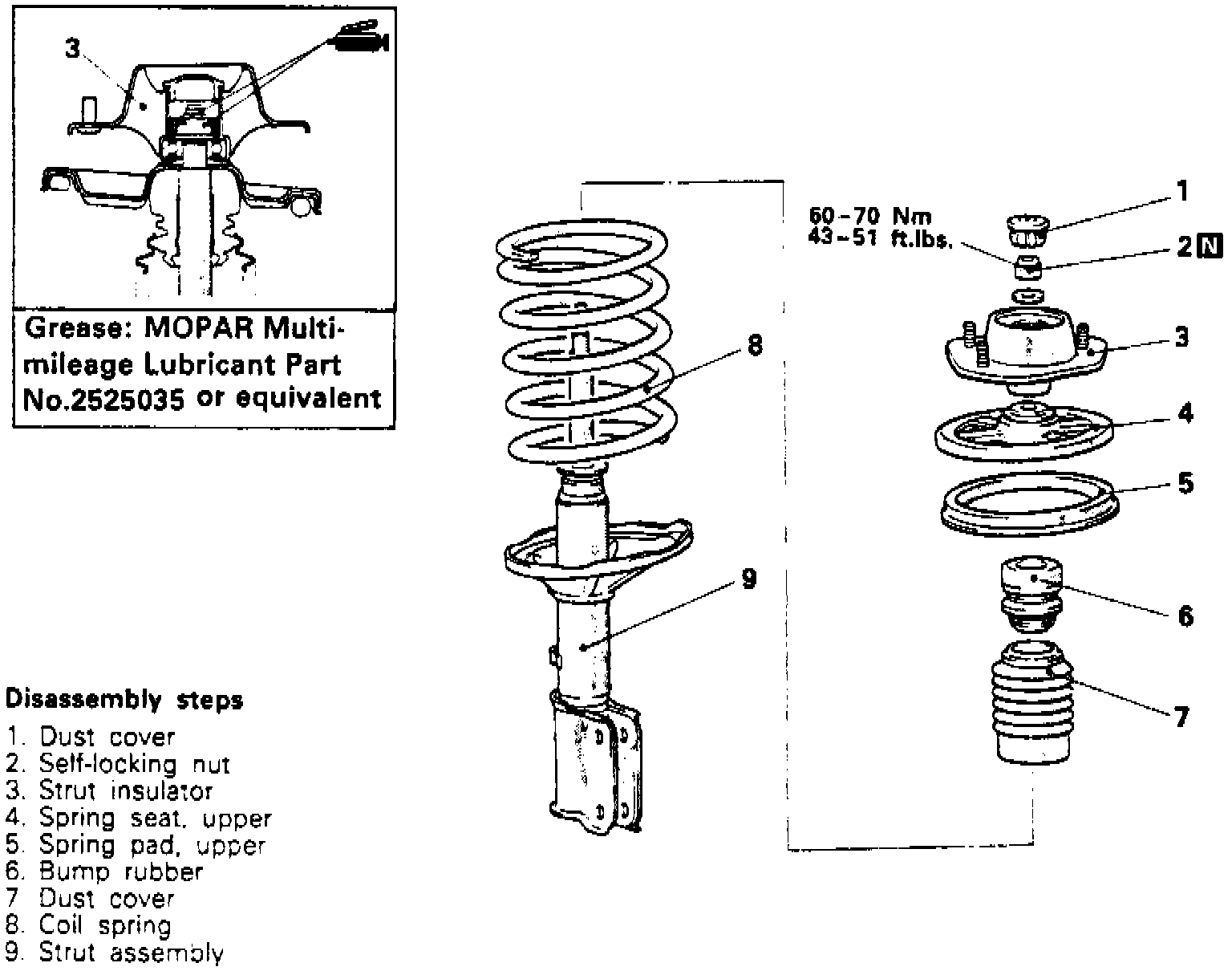

Fig. 9 Strut Assembly Service:

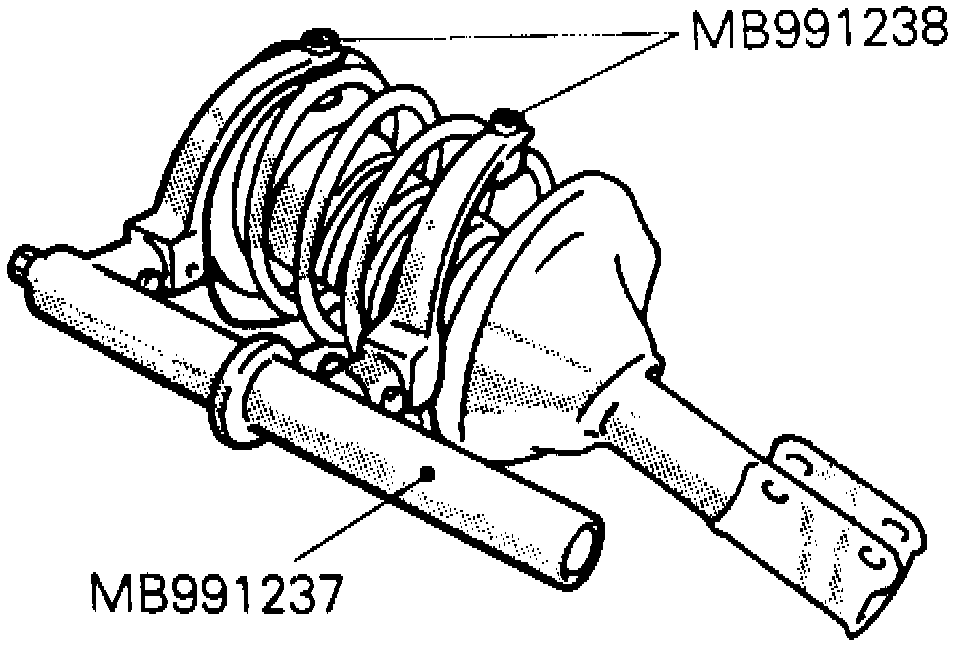

Fig. 10 Self Locking Nut Removal:

STRUT SERVICE
Disassemble strut assembly as shown. Compress coil spring with tool Nos. MB991238 and MB991237, or equivalents, before removing locking nut.

NOTE: Spring seat and pad, are removed as a unit.
