Removal/Installation

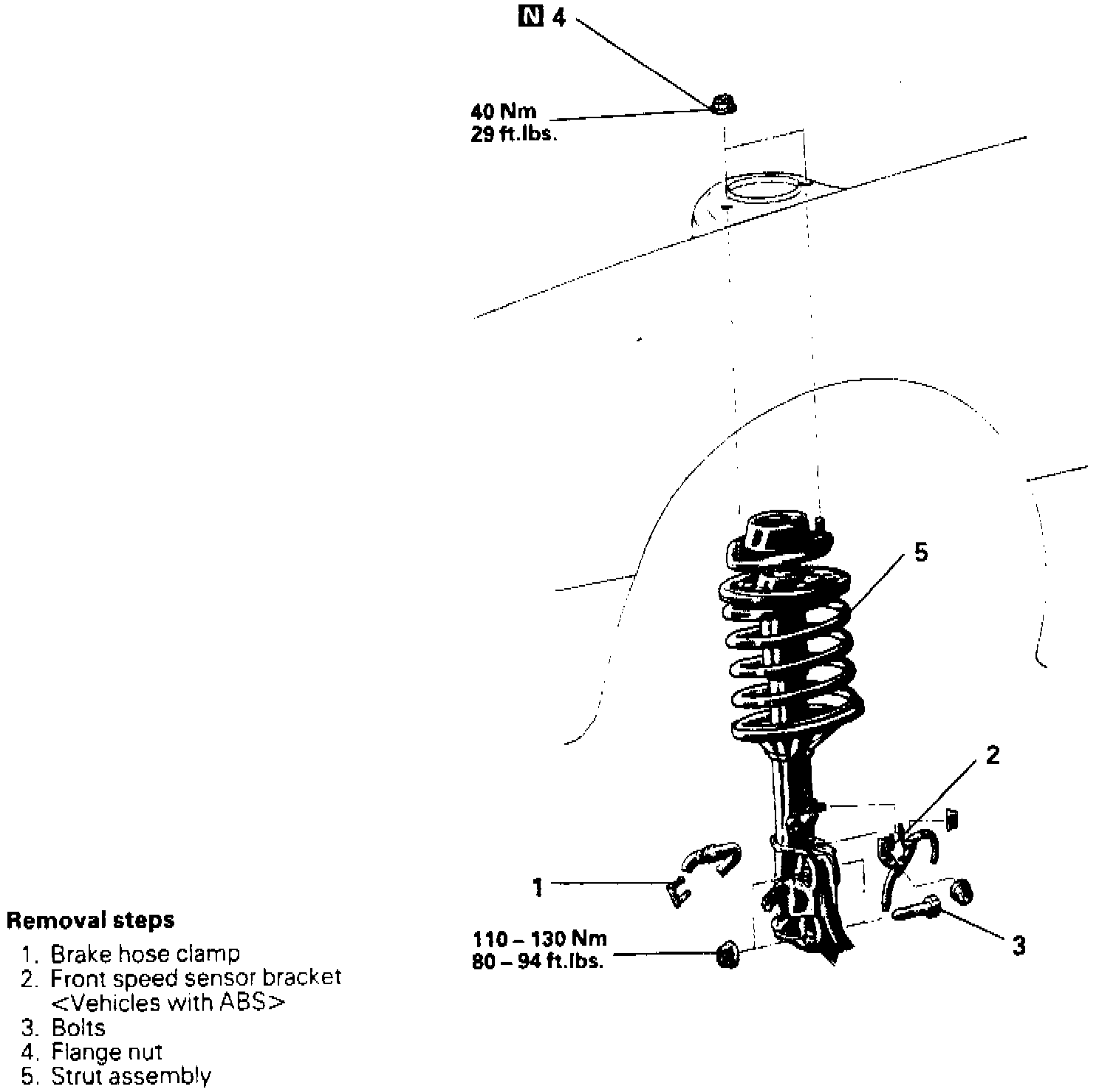

Fig. 7 Strut Replacement:

STRUT REPLACE
1. Raise and support front of vehicle.
2. Remove brake hose bracket to strut attaching screws, then bracket.
3. Remove strut to knuckle attaching bolts.
4. Remove dust cover from top of strut.
5. Remove strut assembly flange nuts, then strut.
6. Reverse procedure to install.
