1, 2 and 3 Digit Codes: 37

CODE NAME
Code No. 36, 37 Park Neutral Position Switch System

DESCRIPTION
When two or more position signals are input simultaneously from the park/neutral position switch continuously for more than 30 seconds, code No. 36 is output to indicate that there is a short circuit in the park/neutral position switch.

When no position signal is input from the park/neutral position switch continuously for more than 30 seconds, code No. 37 is output to indicate that there is an open circuit in the park/neutral position switch.


PROBABLE CAUSE OF TROUBLE
- Defective Park/Neutral position switch
- Defective connector
- Defective ignition switch
- Defective transaxle control module

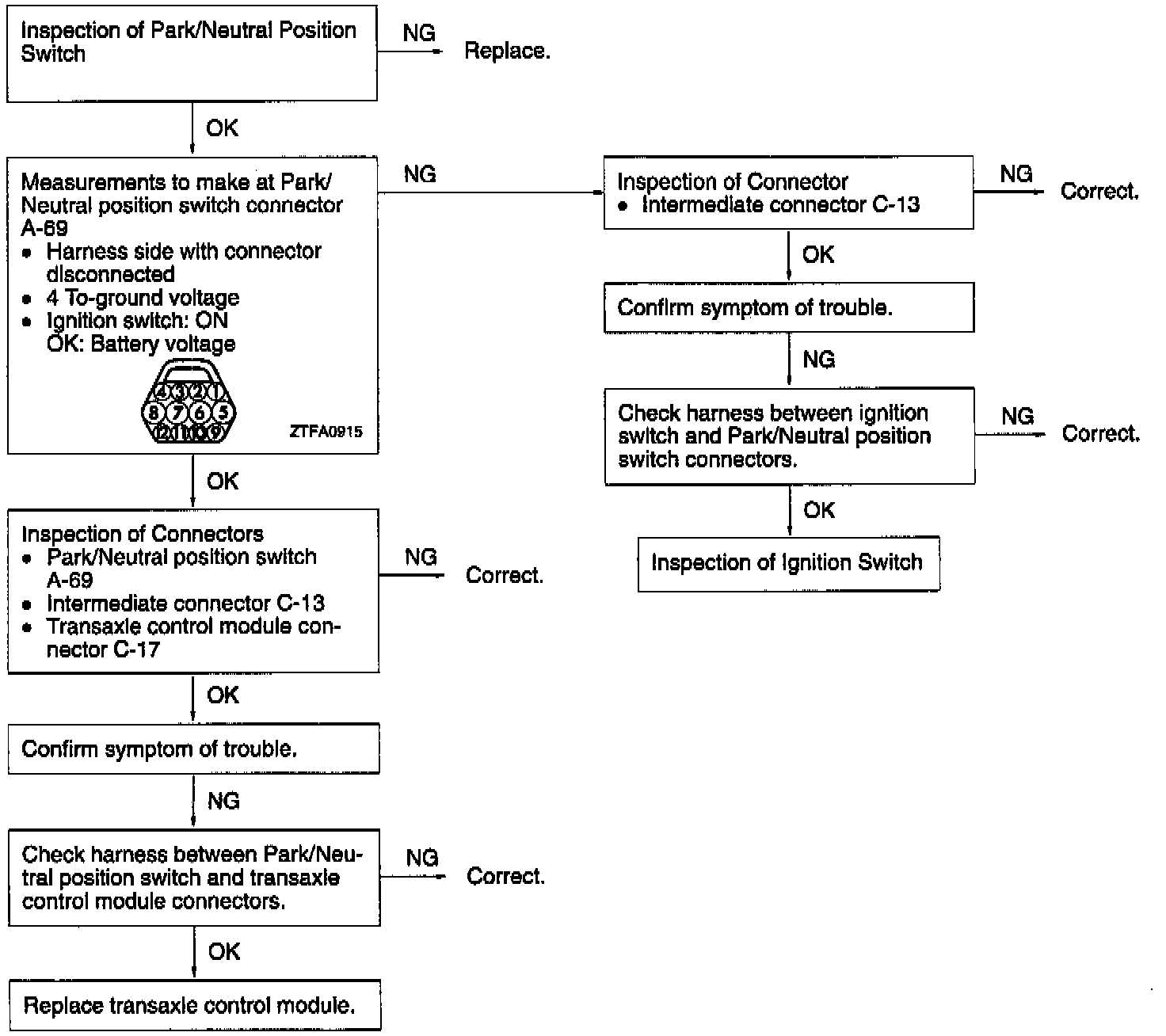

DIAGNOSTIC CHART
